Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMR5224J100J06L16.5CBULKCAP FILM 0.22UF 5% 100VDC RADIAL |
903 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
ECW-FG2J225P1CAP FILM 2.2UF 5% 630VDC RADIAL |
400 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
QXK2G225KTPCAP FILM 2.2UF 10% 400VDC RADIAL |
4,635 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.453" W (30.50mm x 11.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
FKP1T022206B00JSSDCAP FILM 0.022UF 5% 1.6KVDC RAD |
2,085 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC233921224CAP FILM 0.22UF 20% 630VDC RAD |
1,145 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AQSBU4150A1XJCAP FILM 1.5UF 5% 1.5KVDC RADIAL |
983 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 17.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32654A2223K000CAP FILM 0.022UF 10% 2KVDC RAD |
802 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

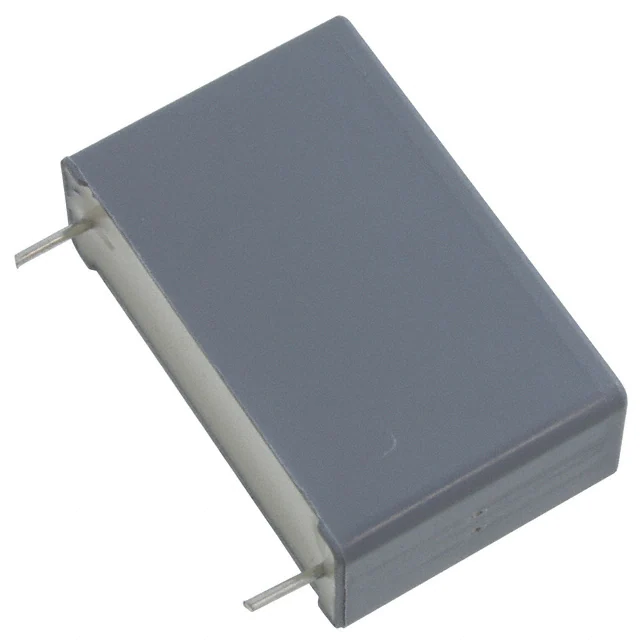

R73UR2150SE00JCAP FILM 0.015UF 5% 2KVDC RADIAL |
634 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

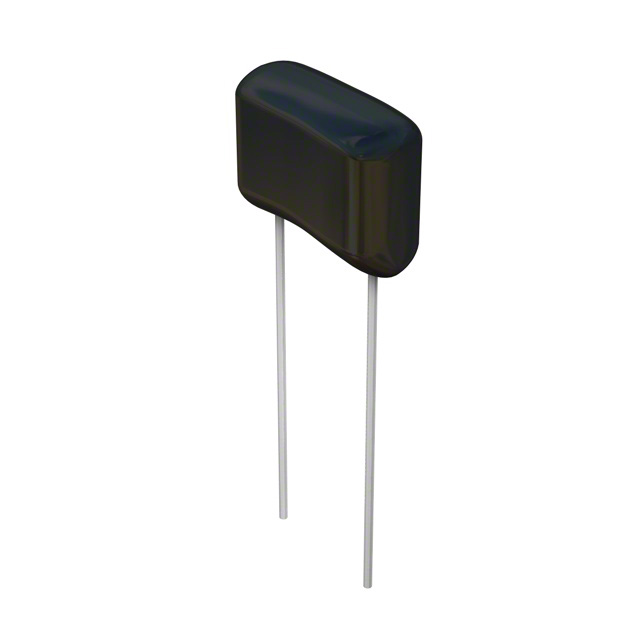

DMM6S47K-FCAP FILM 0.047UF 10% 630VDC RAD |
500 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32924P3335M000FILM CAP MKP X2 - 125C, 3.3UF 20 |
364 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32023A3154M189CAP FILM 0.15UF 20% 1.5KVDC RAD |
3,923 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
R76PI31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
424 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FD2J335JCAP FILM 3.3UF 5% 630VDC RADIAL |
301 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.602" W (25.30mm x 15.30mm) | 0.815" (20.70mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
225P47291WD3CAP FILM 4700PF 10% 100VDC RAD |
861 |
|
Datasheet |
Radial | 4700 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
|
C4AQJBU4330M1WJCAP FILM 3.3UF 5% 700VDC RADIAL |
601 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R46KR4220JHM2MCAP FILM 2.2UF 20% 560VDC RADIAL |
416 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1O126806D00KSSDCAP FILM 0.068UF 10% 1KVDC RAD |
396 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32913B5224K000CAP FILM 0.22UF 1KVDC RADIAL |
1,710 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
225MWR100KCAP FILM 2.2UF 10% 100VDC AXIAL |
974 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" Dia x 1.142" L (12.00mm x 29.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PHE840ED7150MD19R06L2CAP FILM 1.5UF 20% 760VDC RADIAL |
2,367 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
