Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP1U022206F00KSSDCAP FILM 0.022UF 10% 2KVDC RAD |
695 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC236855474CAP FILM 0.47UF 10% 400VDC RAD |
601 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
LDEIF3470KA0N00CAP FILM 0.47UF 10% 250VDC 4030 |
272 |
|
Datasheet |
4030 (10276 Metric) | 0.47 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.217" (5.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MKS4J036805I00KSSDCAP FILM 0.68UF 10% 630VDC RAD |
856 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R71VN433050H6KFILM, RADIAL, PULSE, SINGLE META |
730 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
PHE448RB5100JR06CAP FILM 10000PF 5% 1.6KVDC RAD |
613 |
|
Datasheet |
Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-H6284HCCCAP FILM 0.28UF 3% 630VDC RADIAL |
430 |
|
Datasheet |
Radial | 0.28 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.563" W (20.70mm x 14.30mm) | 0.811" (20.60mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
F339X142248MIP2T0CAP FILM 0.22UF 20% 1KVDC RADIAL |
2,411 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
B32653A7124J000CAP FILM 0.12UF 5% 1.25KVDC RAD |
1,640 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-F6684JLCAP FILM 0.68UF 5% 630VDC RADIAL |
999 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.500" W (28.00mm x 12.70mm) | 0.819" (20.80mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2565JFCAP FILM 5.6UF 5% 250VDC RADIAL |
994 |
|
Datasheet |
Radial | 5.6 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.465" W (31.00mm x 11.80mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE450PD5470JR06L2CAP FILM 0.047UF 5% 1KVDC RADIAL |
832 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
C4AQQLU4250A12JCAP FILM 2.5UF 5% 1.1KVDC RADIAL |
266 |
|
Datasheet |
Radial | 2.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 16.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R586N322050T0KCAP FILM 600VAC(X1) 0.22 UF 10% |
166 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.799" (20.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
FCP1913H104G-E2CAP FILM 0.1UF 2% 50VDC 1913 |
5,714 |
|
Datasheet |
1913 (4833 Metric) | 0.1 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.083" (2.10mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
158X333CAP FILM 0.033UF 20% 275VAC RAD |
3,368 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.669" L x 0.197" W (17.00mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1O124706B00JSSDCAP FILM 0.047UF 5% 1KVDC RAD |
1,573 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32654A3225K000CAP FILM 2.2UF 10% 250VDC RADIAL |
1,392 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

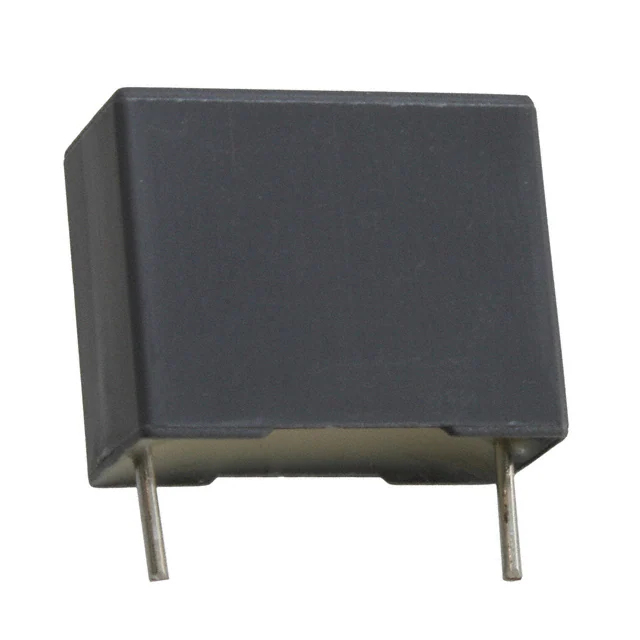

R60DI4470AA30JCAP FILM 4.7UF 5% 63VDC RADIAL |
541 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R463R422050H7KCAP FILM 2.2UF 10% 630VDC RADIAL |
527 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | High Temperature |
