Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25MU333KY11608CAP FILM 0.033UF 10% 25VDC 0603 |
4,721 |
|
Datasheet |
0603 (1608 Metric) | 0.033 µF | ±10% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
BFC233820332CAP FILM 3300PF 20% 630VDC RAD |
1,364 |
|
Datasheet |
Radial | 3300 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
MKS4G041006B00JSSDCAP FILM 1UF 5% 400VDC RADIAL |
1,012 |
|
Datasheet |
Radial | 1 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECW-FG2J225Q1CAP FILM 2.2UF 10% 630VDC RADIAL |
405 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
50MU332KY11608CAP FILM 3300PF 10% 50VDC 0603 |
229 |
|
Datasheet |
0603 (1608 Metric) | 3300 pF | ±10% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
BFC233814103CAP FILM 10000PF 20% 1KVDC RAD |
4,531 |
|
Datasheet |
Radial | 10000 pF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
SMDIC03100KA00MP00CAP FILM 0.1UF 20% 63VDC 1812 |
2,654 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±20% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32654A1154K000CAP FILM 0.15UF 10% 1.6KVDC RAD |
1,149 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
BFC233810103CAP FILM 10000PF 20% 1KVDC RAD |
956 |
|
Datasheet |
Radial | 10000 pF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
150223K630DBCAP FILM 0.022UF 630VDC AXIAL |
870 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276" Dia x 0.650" L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
ECQ-E6185JFCAP FILM 1.8UF 5% 630VDC RADIAL |
796 |
|
Datasheet |
Radial | 1.8 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.661" W (31.00mm x 16.80mm) | 1.122" (28.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R76PI3100SE30JCAP FILM 0.1UF 5% 630VDC RADIAL |
761 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDECE4100KA5N00CAP FILM 1UF 10% 50VDC 2824 |
11,214 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.122" (3.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

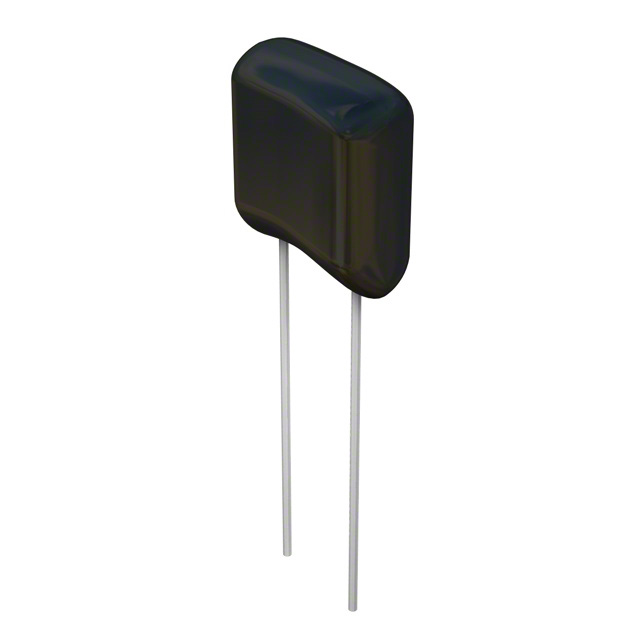

DME1W1K-FCAP FILM 1UF 10% 100VDC RADIAL |
453 |
|
Datasheet |
Radial | 1 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.276" W (12.50mm x 7.00mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
MKP1F041006B00KSSDCAP FILM 1UF 10% 250VDC RAD |
357 |
|
Datasheet |
Radial | 1 µF | ±10% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
890334027021CSCAP FILM 2.2UF 10% 310VAC RADIAL |
304 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
F862FN225K310ZV054CAP FILM 2.2UF 10% 630VDC RADIAL |
1,216 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
150473J400DBCAP FILM 0.047UF 5% 400VDC AXIAL |
1,000 |
|
Datasheet |
Axial | 0.047 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276" Dia x 0.650" L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|

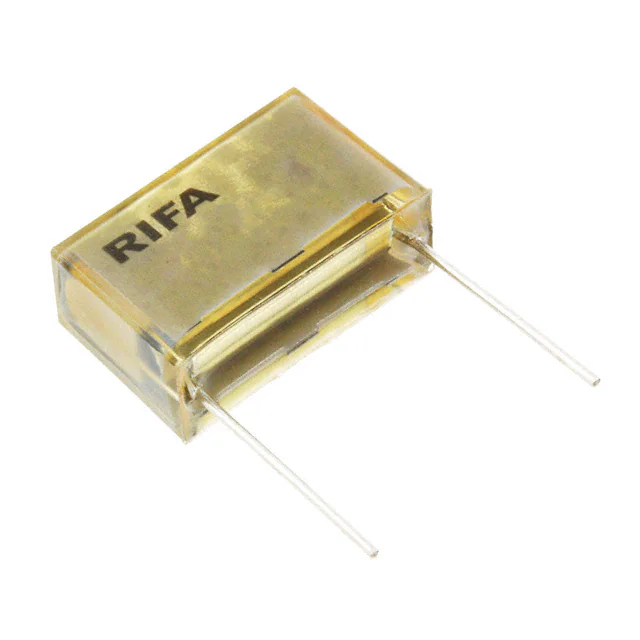

PME271Y547MR19T0CAP FILM 0.047UF 20% 1KVDC RAD |
572 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-F6434JLCAP FILM 0.43UF 5% 630VDC RADIAL |
366 |
|
Datasheet |
Radial | 0.43 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.512" W (20.50mm x 13.00mm) | 0.827" (21.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
