Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F43KI2470ZA01KCAP FILM 0.047UF 10% 275VAC RAD |
989 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413N32204000MCAP FILM 0.22UF 20% 1KVDC RADIAL |
380 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-F6334JLCAP FILM 0.33UF 5% 630VDC RADIAL |
332 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.449" W (20.50mm x 11.40mm) | 0.756" (19.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
ECW-FG1B205JCAP FILM 2UF 5% 1.1KVDC RADIAL |
322 |
|
Datasheet |
Radial | 2 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R41BR322050T0KCAP FILM 0.22UF 10% 1.5KVDC RAD |
223 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
BFC246816105CAP FILM 1UF 10% 250VDC RADIAL |
4,358 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.315" W (17.50mm x 8.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
BFC237343125CAP FILM 1.2UF 10% 250VDC RADIAL |
3,182 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
PME261EB5470KR30CAP FILM 0.047UF 10% 630VDC RAD |
912 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 630V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
ECW-HC3B124JACAP FILM 0.12UF 5% 1.25KVDC RAD |
303 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.587" W (20.70mm x 14.90mm) | 0.921" (23.40mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|

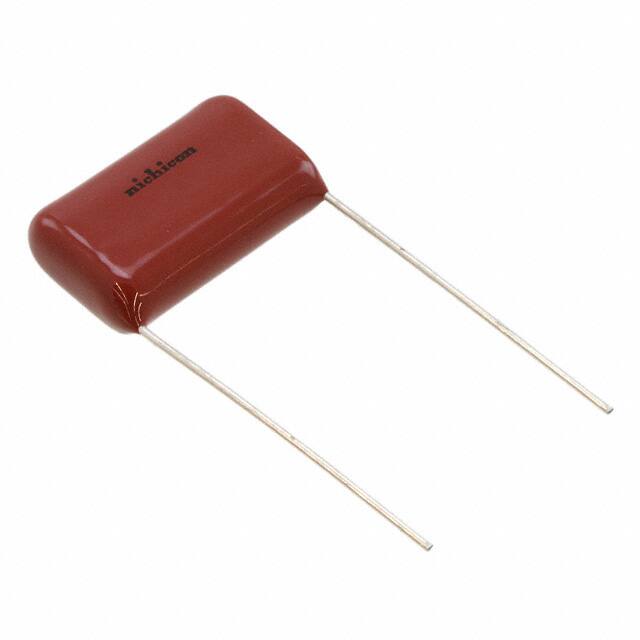

QXK2J224KTPTZHCAP FILM 0.22UF 10% 630VDC RAD |
283 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.350" W (26.00mm x 8.90mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R60DI44704030KCAP FILM 4.7UF 10% 63VDC RADIAL |
260 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
ECW-F4204HLCAP FILM 0.2UF 3% 400VDC RADIAL |
934 |
|
Datasheet |
Radial | 0.2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.583" (14.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
C4AQQBU4140M1WJCAP FILM 1.4UF 5% 1.1KVDC RADIAL |
613 |
|
Datasheet |
Radial | 1.4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 25.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-FG2J225KACAP FILM 2.2UF 10% 630VDC RADIAL |
480 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R75RN312050H3JCAP FILM 0.12UF 5% 1.25KVDC RAD |
356 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 9.3 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
150103J630BBCAP FILM 10000PF 5% 630VDC AXIAL |
984 |
|
Datasheet |
Axial | 10000 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|

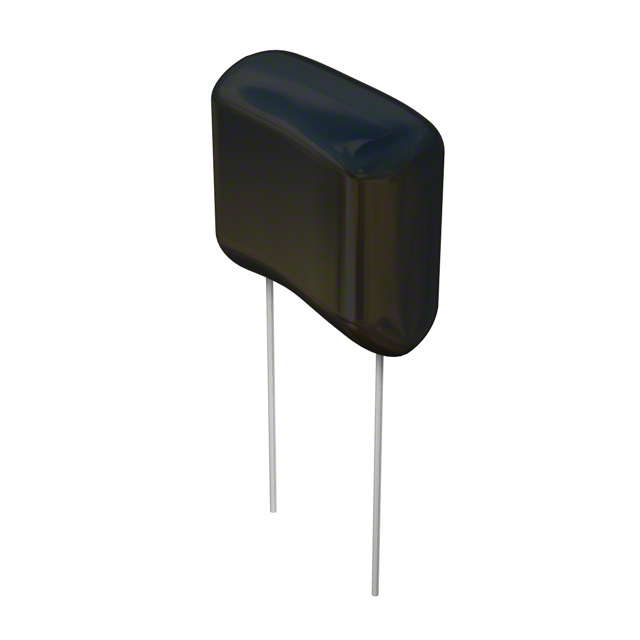

DME10P1K-FCAP FILM 0.1UF 10% 1KVDC RADIAL |
816 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.827" L x 0.394" W (21.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
|
150103K630BBCAP FILM 10000PF 630VDC AXIAL |
741 |
|
Datasheet |
Axial | 10000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R75MR41504030JCAP FILM 1.5UF 5% 400VDC RADIAL |
163 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R60IN43305030JCAP FILM 3.3UF 5% 250VDC RADIAL |
162 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
