Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
103PPB162KCAP FILM 10000PF 10% 1.6KVDC RAD |
814 |
|
Datasheet |
Radial | 10000 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
BFC233910474CAP FILM 0.47UF 10% 630VDC RAD |
420 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AQQBU4150A1WJCAP FILM 1.5UF 5% 1.1KVDC RADIAL |
305 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 26.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
A50PH2100AA60KCAP FILM 10000PF 10% 630VDC AXL |
3,911 |
|
Datasheet |
Axial | 10000 pF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.551" L (5.00mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
R76QN3100SE30JCAP FILM 0.1UF 5% 1KVDC RADIAL |
672 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-F6244JLCAP FILM 0.24UF 5% 630VDC RADIAL |
585 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.685" (17.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

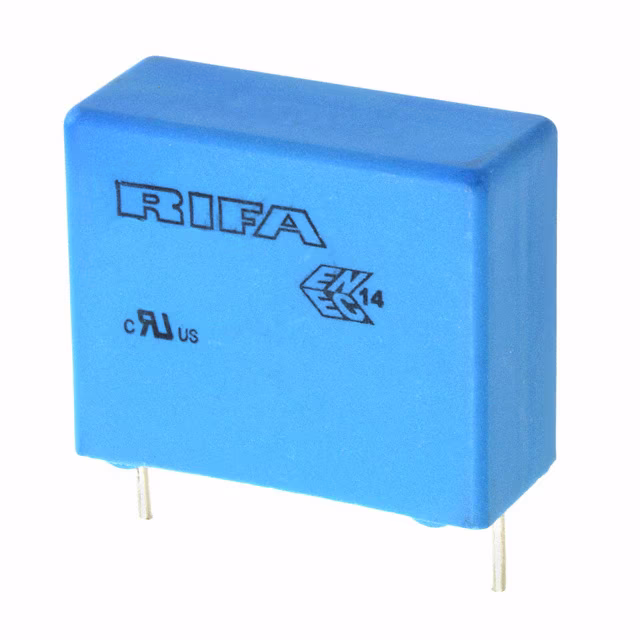

PHE844RD6220MR30L2CAP FILM 0.22UF 20% 1KVDC RADIAL |
306 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC242032002CAP FILM 0.002UF 5% 630VDC RAD |
2,901 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
B32673P6225J000CAP FILM 2.2UF 5% 630VDC RADIAL |
1,809 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
BFC236855334CAP FILM 0.33UF 10% 400VDC RAD |
845 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.252" W (26.00mm x 6.40mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
PWS2152150KGCAP FILM 0.015UF 10% 1.5KVDC AXL |
702 |
|
Datasheet |
Axial | 0.015 µF | ±10% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" Dia x 1.063" L (10.50mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-FG1B155JACAP FILM 1.5UF 5% 1.1KVDC RAD |
500 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
LDECD3330JA5N00CAP FILM 0.33UF 5% 50VDC 2220 |
206 |
|
Datasheet |
2220 (5750 Metric) | 0.33 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
QXP2E105KRPTCAP FILM 1UF 10% 250VDC RADIAL |
194 |
|
Datasheet |
Radial | 1 µF | ±10% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.390" W (26.50mm x 9.90mm) | 0.756" (19.20mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECW-F6563HLCAP FILM 0.056UF 3% 630VDC RAD |
184 |
|
Datasheet |
Radial | 0.056 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 0.500" (12.70mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
QXT2J473KRPTCAP FILM 0.047UF 10% 630VDC RAD |
139 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.945" L x 0.413" W (24.00mm x 10.50mm) | 0.858" (21.80mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
B32684A0683K000CAP FILM 0.068UF 10% 1KVDC RAD |
1,006 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R75TR31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
830 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | - | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC233810224CAP FILM 0.22UF 20% 1KVDC RADIAL |
740 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
LDECD3270JA5N00CAP FILM 0.27UF 5% 50VDC 2220 |
10,832 |
|
Datasheet |
2220 (5750 Metric) | 0.27 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
