Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QXL2E334KTPTCAP FILM 0.33UF 10% 250VAC RAD |
188 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004" L x 0.311" W (25.50mm x 7.90mm) | 0.717" (18.20mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
MKP1O131506B00KSSDCAP FILM 0.15UF 10% 1KVDC RAD |
3,161 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
DME2P56K-FCAP FILM 0.56UF 10% 250VDC RAD |
2,961 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
335MMR250KCAP FILM 3.3UF 10% 250VDC RADIAL |
2,406 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECQ-E1395KFCAP FILM 3.9UF 10% 100VDC RADIAL |
812 |
|
Datasheet |
Radial | 3.9 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.685" (17.40mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F4224JBCAP FILM 0.22UF 5% 400VDC RADIAL |
650 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787" L x 0.374" W (20.00mm x 9.50mm) | 0.709" (18.00mm) | PC Pins | 0.669" (17.00mm) | High Frequency, Switching | - | - |
|

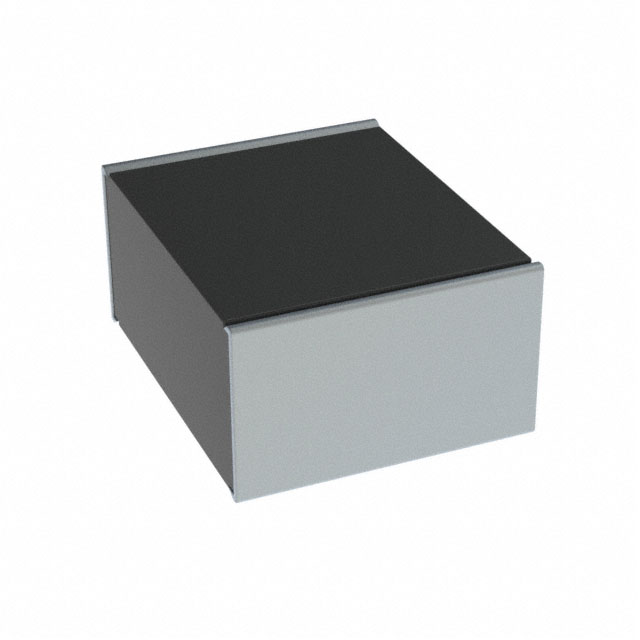

SMDTC04470XA00KT00CAP FILM 4.7UF 10% 40VAC 5040 |
612 |
|
Datasheet |
5040 (127102 Metric) | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.402" W (12.70mm x 10.20mm) | 0.248" (6.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R76PN3220SE30JCAP FILM 0.22UF 5% 630VDC RADIAL |
492 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32524R6225J000CAP FILM 2.2UF 5% 400VDC RADIAL |
471 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32524Q6155K000CAP FILM 1.5UF 10% 400VDC RADIAL |
221 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R46KN415000P0MCAP FILM 1.5UF 20% 560VDC RADIAL |
218 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6164JLCAP FILM 0.16UF 5% 630VDC RADIAL |
164 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.366" W (18.00mm x 9.30mm) | 0.602" (15.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
890334026030CAP FILM 1.5UF 10% 310VAC RADIAL |
150 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233660473CAP FILM 0.047UF 20% 1KVDC RAD |
4,352 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
F339X141048KI02W0CAP FILM 0.1UF 10% 1KVDC RADIAL |
3,672 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
CB052D0105KBCCAP FILM 1UF 10% 63VDC 2824 |
2,251 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
DME4P33K-FCAP FILM 0.33UF 10% 400VDC RAD |
1,287 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
150472J630BBCAP FILM 4700PF 5% 630VDC AXIAL |
1,000 |
|
Datasheet |
Axial | 4700 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R46KN415040P0MCAP FILM 1.5UF 20% 560VDC RADIAL |
247 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32524Q3225K000CAP FILM 2.2UF 10% 250VDC RADIAL |
1,647 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
