Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237011125CAP FILM 1.2UF 10% 50VDC RADIAL |
1,210 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 40V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R75RN31004030JCAP FILM 0.1UF 5% 1.25KVDC RAD |
696 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H6334HCCAP FILM 0.33UF 3% 630VDC RADIAL |
658 |
|
Datasheet |
Radial | 0.33 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.579" W (20.70mm x 14.70mm) | 0.831" (21.10mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
R60MN41505040JCAP FILM 1.5UF 5% 400VDC RADIAL |
619 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
ECW-H6304HCCCAP FILM 0.3UF 3% 630VDC RADIAL |
530 |
|
Datasheet |
Radial | 0.3 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.583" W (20.70mm x 14.80mm) | 0.831" (21.10mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
MKS4F043305I00KSSDCAP FILM 3.3UF 10% 250VDC RADIAL |
264 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC233917104CAP FILM 0.1UF 10% 630VDC RADIAL |
24,537 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75PR4100AA30JCAP FILM 1UF 5% 630VDC RADIAL |
3,193 |
|
Datasheet |
Radial | 1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6683HLCAP FILM 0.068UF 3% 630VDC RAD |
485 |
|
Datasheet |
Radial | 0.068 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.291" W (15.50mm x 7.40mm) | 0.524" (13.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECW-F6274JLCAP FILM 0.27UF 5% 630VDC RADIAL |
375 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.409" W (20.50mm x 10.40mm) | 0.717" (18.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
R76PN32204030JCAP FILM 0.22UF 5% 630VDC RADIAL |
300 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E1565KFCAP FILM 5.6UF 10% 100VDC RADIAL |
4,015 |
|
Datasheet |
Radial | 5.6 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.327" W (26.00mm x 8.30mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

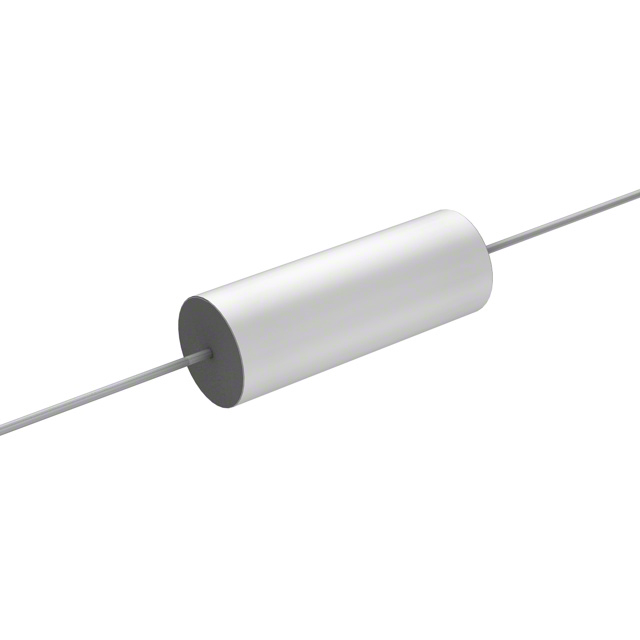

WMF1S68K-FCAP FILM 0.068UF 10% 100VDC AXIA |
2,522 |
|
Datasheet |
Axial | 0.068 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.295" Dia x 0.811" L (7.50mm x 20.60mm) | - | PC Pins | - | General Purpose | - | - |
|
63MU223KZ12012CAP FILM 0.022UF 10% 63VDC 0805 |
2,495 |
|
Datasheet |
0805 (2012 Metric) | 0.022 µF | ±10% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
B32522C1335J289CAP FILM 3.3UF 5% 100VDC RADIAL |
943 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
R76QN31004030JCAP FILM 0.1UF 5% 1KVDC RADIAL |
877 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32923H3155K000CAP FILM 1.5UF 10% 630VDC RADIAL |
306 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

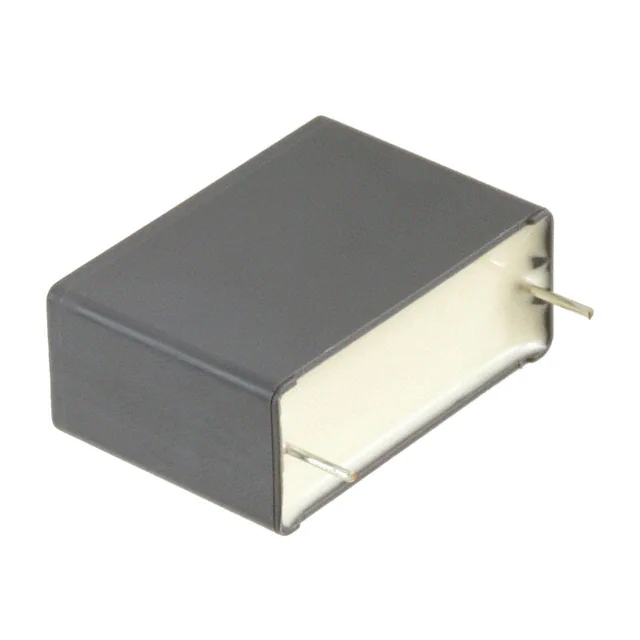

R73TR24704000JCAP FILM 0.047UF 5% 1.6KVDC RAD |
191 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4G041006B00KSSDCAP FILM 1UF 10% 400VDC RADIAL |
126 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32033A4154M000CAP FILM 0.15UF 20% 1KVDC RADIAL |
1,960 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
