Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32774D0705K000CAP FILM 7UF 10% 1.1KVDC RADIAL |
1,001 |
|
Datasheet |
Radial | 7 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
C274AC35150AA0JCAP FILM 15UF 5% 470VAC RADIAL |
258 |
|
Datasheet |
Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
B32355C4205J019CAP FILM 2UF 5% 400VAC RADIAL |
898 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 100°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.126" (54.00mm) | Wire Leads | - | Motor Run | - | High Temperature |
|
|
B32355C4155J019CAP FILM 1.5UF 5% 400VAC RADIAL |
628 |
|
Datasheet |
Radial, Can | 1.5 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 100°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.126" (54.00mm) | Wire Leads | - | Motor Run | - | High Temperature |
|
R75IR4470AA50JCAP FILM 4.7UF 5% 250VDC RAD |
109 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F861FR475M310ZCAP FILM POLYPROP RAD X2 |
567 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
942C20P1K-FCAP FILM 0.1UF 10% 2KVDC AXIAL |
2,614 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.965" Dia x 1.811" L (24.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
225P10591YD3CAP FILM 1UF 10% 100VDC RADIAL |
1,195 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252" L x 0.720" W (31.80mm x 18.30mm) | 0.980" (24.90mm) | PC Pins | 0.720" (18.30mm) | Audio; DC Link, DC Filtering | - | - |
|
F161ZS335K100VCAP FILM 3.3UF 10% 100VDC SMD |
500 |
|
Datasheet |
Nonstandard SMD | 3.3 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
B32756G4505K000CAP FILM 5UF 10% 800VDC RADIAL |
211 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
DMT4P1K-FCAP FILM 0.1UF 10% 400VDC RADIAL |
1,695 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.882" L x 0.472" W (22.40mm x 12.00mm) | 0.763" (19.37mm) | PC Pins | 0.732" (18.60mm) | General Purpose | - | - |
|
BFC246804106CAP FILM 10UF 10% 100VDC RADIAL |
503 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
C4GAFUC4500AA1JCAP FILM 5UF 5% 400VDC AXIAL |
941 |
|
Datasheet |
Axial | 5 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 0.846" Dia x 1.732" L (21.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
PHE450RR6220JR06L2CAP FILM 0.22UF 5% 1.6KVDC RAD |
394 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
C274AC35100SA0JCAP FILM 10UF 5% 470VAC RADIAL |
182 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
F339MX261531MPM2T0CAP FILM 15UF 20% 450VDC RADIAL |
733 |
|
Datasheet |
Radial | 15 µF | ±20% | 310V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
405PHC400KCAP FILM 4UF 10% 400VDC AXIAL |
102 |
|
Datasheet |
Axial | 4 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.807" Dia x 1.811" L (20.50mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
C276CAA4630AE0JCAP FILM 6.3UF 5% 470VAC RADIAL |
760 |
|
Datasheet |
Radial, Can | 6.3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
106MWR050KCAP FILM 10UF 10% 50VDC AXIAL |
283 |
|
Datasheet |
Axial | 10 µF | ±10% | 30V | 50V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.531" Dia x 0.807" L (13.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|

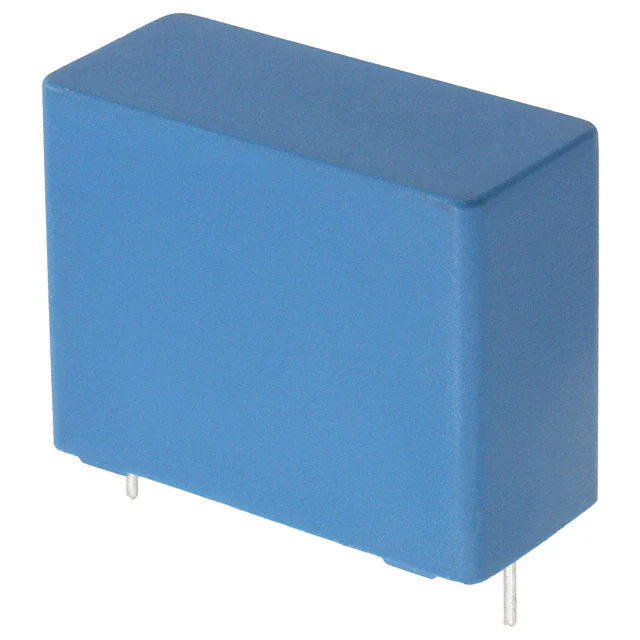

B32776P6106K000CAP FILM 10UF 10% 630VDC RADIAL |
3,183 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
