Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSRH24NHS-40059CMC 5.9MH 4A 2LN TH |
294 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.9 mH @ 10 kHz | 4A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NVS-12500CMC 50MH 1.2A 2LN TH |
232 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-R12296CMC 29.6MH 1.2A 2LN TH |
175 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 29.6 mH @ 10 kHz | 1.2A | 490mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-35080CMC 8MH 3.5A 2LN TH |
174 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 3.5A | 74mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-R20094CMC 9.4MH 2A 2LN TH |
164 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.4 mH @ 10 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
T8116NLTCMC 470UH 700MA 2LN 800 OHM SMD |
1,253 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | 470 µH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SS26V-R120220CMC 22MH 1.2A 2LN TH |
471 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 1.2A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
PE-53910NLTCMC 3.6A 2LN SMD |
348 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.6A | 50mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
SSRH24NV-30145CMC 14.5MH 3A 2LN TH |
170 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
T8113NLTCMC 2.2MH 500MA 2LN 700 OHM SMD |
1,604 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | 2.2 mH @ 100 kHz | 500mA | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
RN122-1-02-10MCMC 10MH 1A 2LN TH |
190 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 560mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
FE2X39-3-3NLCMC 350MA 2LN TH |
1,160 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 350mA | 2.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SSRH24NVS-16320CMC 32MH 1.6A 2LN TH |
10 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32 mH @ 10 kHz | 1.6A | 265mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NHS-50026CMC 2.6MH 5A 2LN TH |
164 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 5A | 27mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
750341638CMC 30MH 600MA 2LN TH |
157 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 30 mH @ 10 kHz | 600mA | 1.45Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SSRH24NVS-50026CMC 2.6MH 5A 2LN TH |
147 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 5A | 27mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82734W2132B030CMC 47MH 1.3A 2LN TH |
797 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.3A | 560mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734W2262B030CMC 10MH 2.6A 2LN TH |
718 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.6A | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

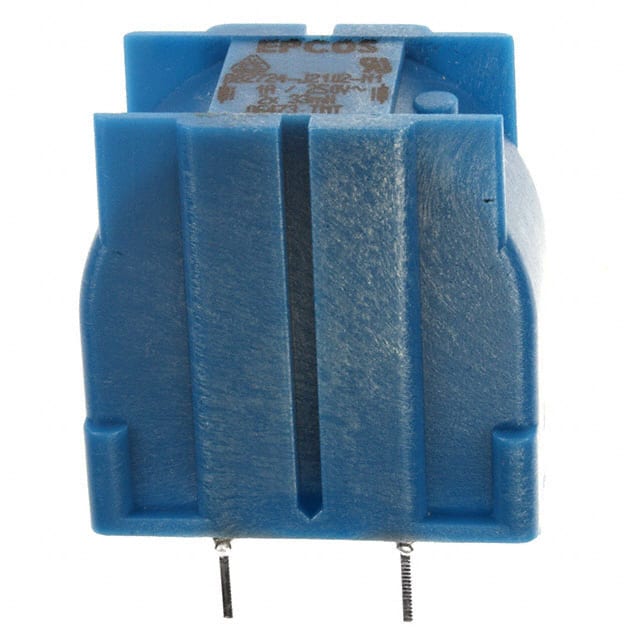

B82724J2102N001CMC 33MH 1A 2LN TH |
429 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-07-E030JH-PCMC 30UH 7A 2LN TH |
164 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
