Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NH-10250CMC 25MH 1A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 25 mH @ 10 kHz | 1A | 360mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN5-40P2NMC 48.0UH 2.0A 0.0650 OHM TH |
200 |
|
Datasheet |
Horizontal, 2 PC Pin | Power Line | 2 | - | 48 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SH-312CMC 3A 2LN TH |
198 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 3A | 30mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|

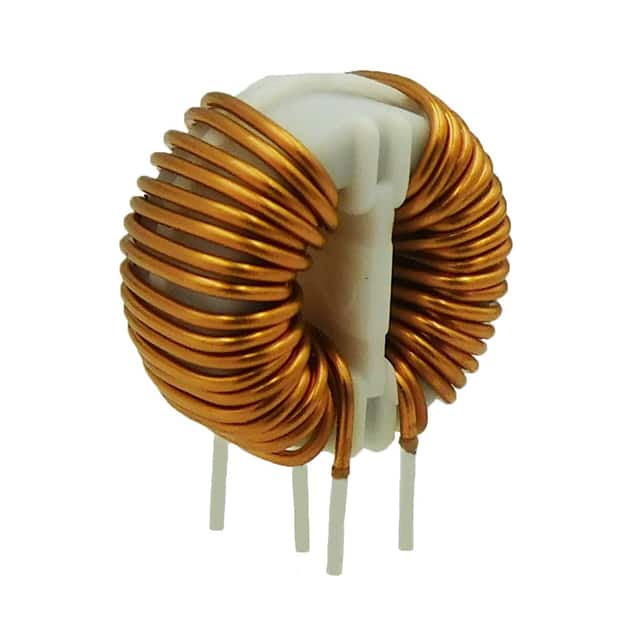

LPTC-V-0.85-3-30CMC 850UH 3A 2LN TH |
1,500 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 850 µH @ 1 kHz | 3A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
B82734W2142B030CMC 39MH 1.4A 2LN TH |
348 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NVS-M25064CMC 6.4MH 2.5A 2LN TH |
265 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 2.5A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-M07680CMC 68MH 700MA 2LN TH |
259 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 700mA | 950mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M25064CMC 6.4MH 2.5A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 2.5A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SH-101CMC 3A 2LN TH |
154 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 0.35 µH @ 100 kHz | 3A | 16mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SH-102CMC 3A 2LN TH |
146 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 µH @ 100 kHz | 3A | 26mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SC-03-10JSCMC 1MH 3A 2LN TH |
198 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 3A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SH-122CMC TROID, NI-ZN, 1.5UH, TH UL94 |
475 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 µH @ 100 kH | 3A | 20mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
SSR21NV-M10475CMC 47.5MH 1A 2LN TH |
418 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 1A | 580mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-M25103CMC 10.3MH 2.5A 2LN TH |
295 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10.3 mH @ 10 kHz | 2.5A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NV-M15220CMC 22MH 1.5A 2LN TH |
280 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.5A | 260mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

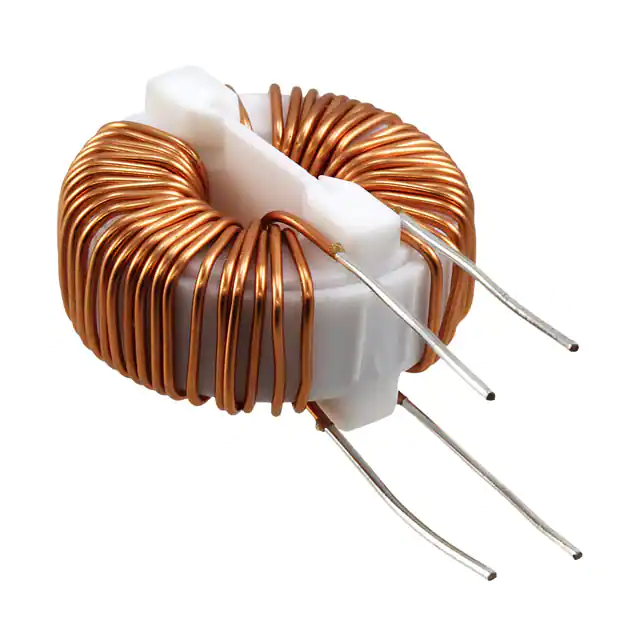

SC-02-101CMC 1MH 2A 2LN TH |
241 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SSR21NH-M18164CMC 16.4MH 1.8A 2LN TH |
192 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16.4 mH @ 10 kHz | 1.8A | 210mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M20125CMC 12.5MH 2A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 2A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-10GCMC 1MH 2A 2LN TH |
1,317 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82733V2112B001CMC 47MH 1.1A 2LN TH |
178 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.1A | 804mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
