Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-E115JCMC 11.5MH 2A 2LN TH |
267 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 10 kHz | 2A | 155mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

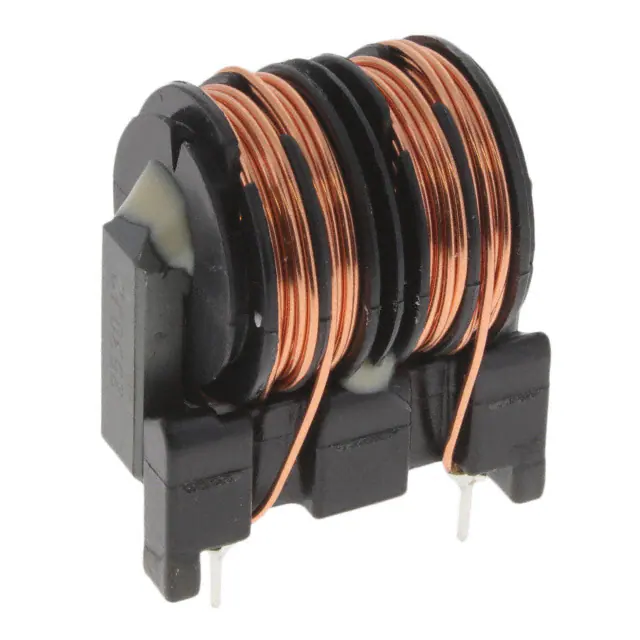

SS30V-250070CMC 7MH 2.5A 2LN TH |
138 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-E50JKHCMC 5.4MH 2.7A 2LN TH |
276 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2.7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724A2202N001CMC 6.8MH 2A 2LN TH |
220 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS30V-200100CMC 10MH 2A 2LN TH |
200 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 2A | 210mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-R080960CMC 96MH 800MA 2LN TH |
168 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 96 mH @ 1 kHz | 800mA | 1.5Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-100JCMC 10.5MH 5A 2LN TH |
178 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10.5 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ECMT1V2017H-200-RCMC 20MH 1A 2LN TH |
123 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TX8111NLTCMC 51UH 2LN SMD |
825 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 51 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SC-07-030VCMC 360UH 7A 2LN TH |
300 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 360 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82723J2142N020CMC 27MH 1.4A 2LN TH |
200 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SC-02-E120JCMC 12MH 2A 2LN TH |
116 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2A | 180mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82734R2142B030CMC 39MH 1.4A 2LN TH |
1,026 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SC-06-182JHCMC 1.8MH 6A 2LN TH |
150 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-201ACMC 200MA 2LN 1.5K OHM TH |
475 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.5 kOhms @ 7 MHz | - | 200mA | 150mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
|
SS30V-R150270CMC 27MH 1.5A 2LN TH |
238 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 1 kHz | 1.5A | 500mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724J8672N040CMC 2.2MH 6.7A 2LN TH |
500 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6.7A | 17mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ST-202SCMC 1A 2LN 600 OHM TH |
107 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 35mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|

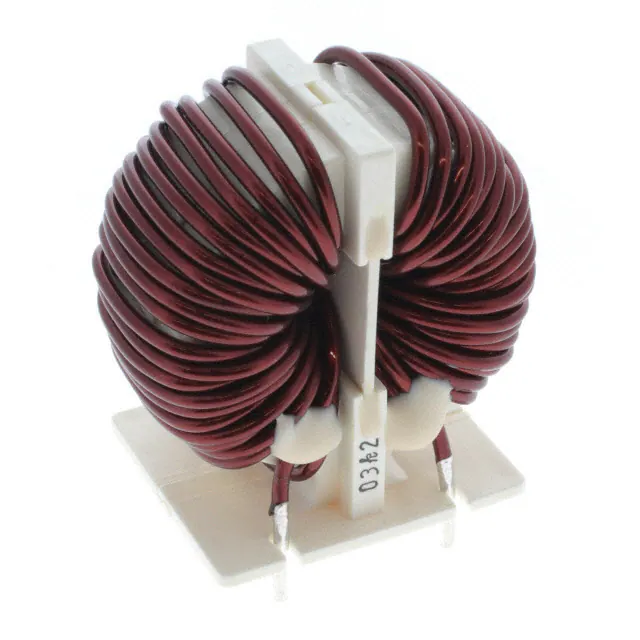

SC-15-02JCMC 200UH 15A 2LN TH |
104 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 15A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-07-276JHCMC 2.76MH 7A 2LN TH |
136 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.76 mH @ 10 kHz | 7A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
