Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82734W2322B030CMC 6.8MH 3.2A 2LN TH |
906 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 3.2A | 85mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSHB10H-17023CMC 2.3MH 1.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.3 mH @ 10 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS35V-35047CMC 4.7MH 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82721A2501N001CMC 18MH 500MA 2LN TH |
450 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN116-0.5-02-27MCMC 27MH 500MA 2LN TH |
433 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 790mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS26V-R250061CMC 6.1MH 2.5A 2LN TH |
351 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.1 mH @ 1 kHz | 2.5A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
750314976CMC 3.3MH 2A 2LN TH |
209 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 10 kHz | 2A | 164mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82722J2132N001CMC 6.8MH 1.3A 2LN TH |
208 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 230mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN218-1.1-02-15MCMC 15MH 1.1A 2LN TH |
525 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.1A | 420mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

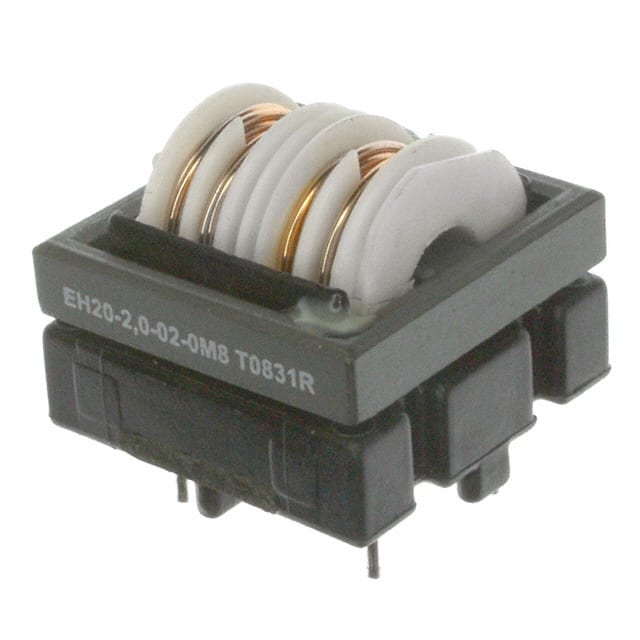

EH20-2.0-02-0M8CMC 820UH 2A 2LN TH |
237 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 820 µH @ 10 kHz | 2A | 38mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
ECMT1V2429S-100-RCMC 10MH 1.2A 2LN TH |
212 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN116-1.3-02-6M8CMC 6.8MH 1.3A 2LN TH |
445 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 140mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

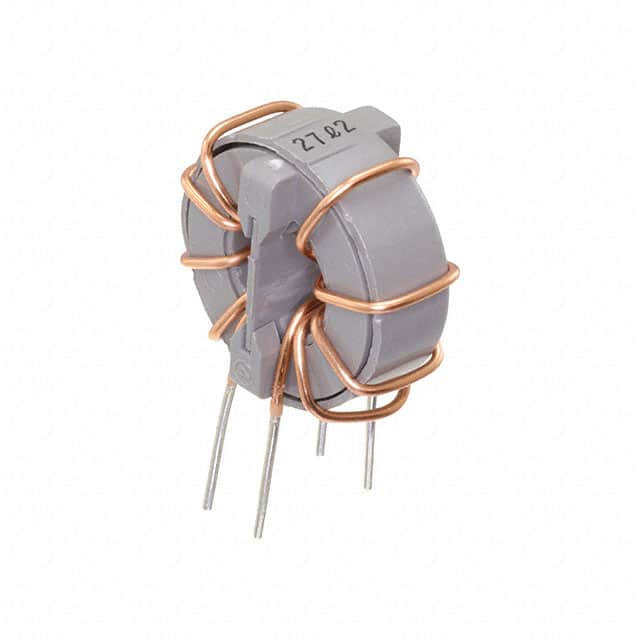

SC-05-D0065CMC 6.5UH 5A 2LN TH |
303 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 µH @ 100 kHz | 5A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RN116-1-02-10MCMC 10MH 1A 2LN TH |
190 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 210mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN116-1.7-02-4M0CMC 4MH 1.7A 2LN TH |
190 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.7A | 87mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS35V-45022CMC 2.2MH 4.5A 2LN TH |
102 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 4.5A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
FE2X03-4-2NLCMC 2.5A 2LN TH |
388 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.5A | 90mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NHS-M20103CMC 10.3MH 2A 2LN TH |
837 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10.3 mH @ 10 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NVS-M18125CMC 12.5MH 1.8A 2LN TH |
398 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12.5 mH @ 10 kHz | 1.8A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-M30041CMC 4.1MH 3A 2LN TH |
349 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
