Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

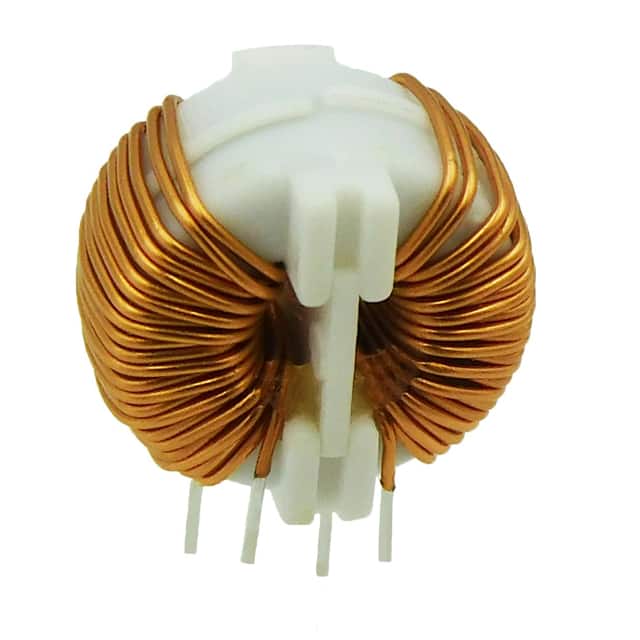

LPTC-V-1.7-2-60CMC 1.7MH 2A 2LN TH |
277 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 2A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SSR21NVS-M08475CMC 47.5MH 800MA 2LN TH |
256 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47.5 mH @ 10 kHz | 800mA | 680mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NHS-M10345CMC 34.5MH 1A 2LN TH |
225 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1A | 510mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M051200CMC 120MH 500MA 2LN TH |
217 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 10 kHz | 500mA | 1.85Ohm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82722A2152N020CMC 10MH 1.5A 2LN TH |
209 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 240mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
SSR21NVS-M06890CMC 89MH 600MA 2LN TH |
104 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 89 mH @ 10 kHz | 600mA | 1.35Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82724J2302N021CMC 12MH 3A 2LN TH |
537 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 3A | 125mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
EV20-0.8-02-5M6CMC 5.6MH 800MA 2LN TH |
400 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 400 Hz | 800mA | 245mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
RN116-0.5-02-39MCMC 39MH 500MA 2LN TH |
397 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 500mA | 920mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NH-M12345CMC 34.5MH 1.2A 2LN TH |
386 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 34.5 mH @ 10 kHz | 1.2A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
RN116-1-02-15MCMC 15MH 1A 2LN TH |
269 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 260mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSR21NV-M051350CMC 135MH 500MA 2LN TH |
249 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 135 mH @ 10 kHz | 500mA | 1.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M061200CMC 120MH 600MA 2LN TH |
218 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 10 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

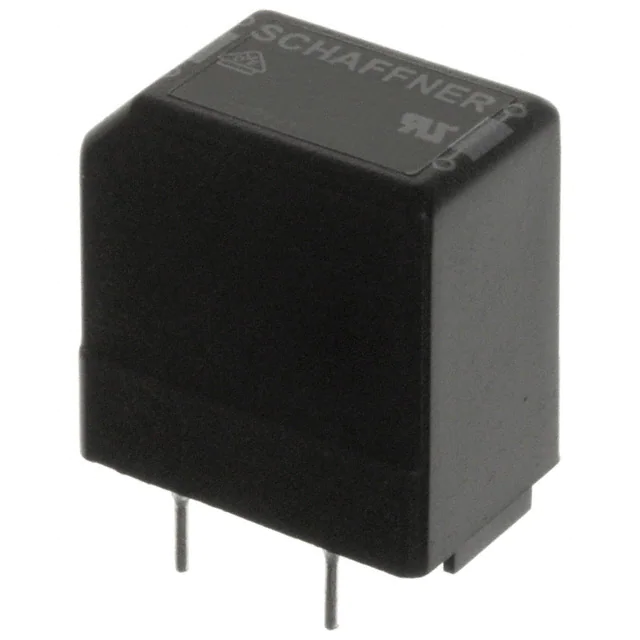

RN216-0.5-02-47MCMC 47MH 500MA 2LN TH |
500 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 500mA | 960mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-1.3-02-6M8CMC 6.8MH 1.3A 2LN TH |
411 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 140mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-1-02-10MCMC 10MH 1A 2LN TH |
392 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 210mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-0.8-02-27MCMC 27MH 800MA 2LN TH |
384 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN216-1.7-02-4M0CMC 4MH 1.7A 2LN TH |
330 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.7A | 87mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN116-2-02-3M3CMC 3.3MH 2A 2LN TH |
528 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
FE2X03-3-3NLCMC 1.5A 2LN TH |
1,309 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 1.5A | 215mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
