Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS26V-R051170CMC 117MH 500MA 2LN TH |
325 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 117 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
FE2X27-3-3NLCMC 400MA 2LN TH |
1,200 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 400mA | 1.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN216-1-02-15MCMC 15MH 1A 2LN TH |
875 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 260mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SS21V-R060330CMC 33MH 600MA 2LN TH |
600 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-05GJCMC 515UH 2A 2LN TH |
212 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 515 µH @ 100 kHz | 2A | 58mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RN216-2-02-3M3CMC 3.3MH 2A 2LN TH |
2,368 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-05-15JCMC 1.5MH 5A 2LN TH |
132 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
FE2X07-3-2NLCMC 1.2A 2LN TH |
1,082 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.2A | 39mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NVS-20034CMC 3.4MH 2A 2LN TH |
312 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NVS-15082CMC 8.2MH 1.5A 2LN TH |
270 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 10 kHz | 1.5A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-67JCMC 6.7MH 3A 2LN TH |
393 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.7 mH @ 100 kHz | 3A | 105mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-D005CMC 45UH 7A 2LN TH |
351 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 45 µH @ 100 kHz | 7A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
CMF23V-473111-BCMC 47MH 1.1A 2LN TH |
180 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
B82731H2501A030CMC 47MH 500MA 2LN TH |
2,016 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82732W2172B030CMC 6.8MH 1.7A 2LN TH |
1,224 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.7A | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

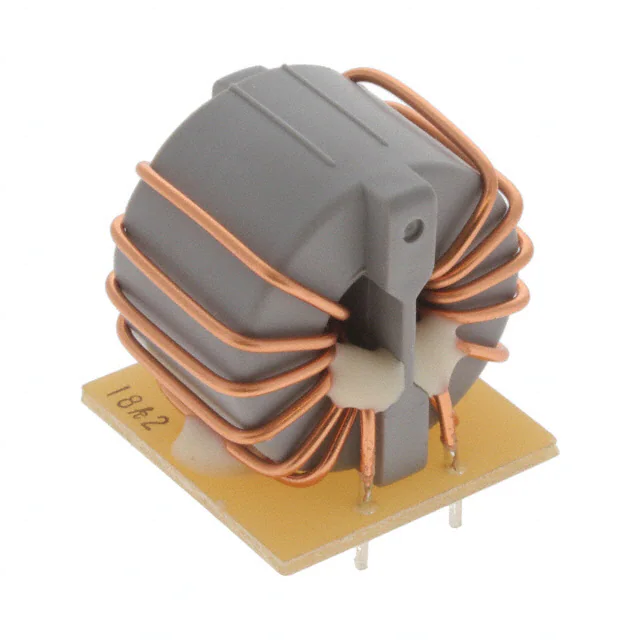

SC-05-D030JCMC 30UH 5A 2LN TH |
377 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 100 kHz | 5A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SS26V-150121CMC 12.1MH 1.5A 2LN TH |
350 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12.1 mH @ 1 kHz | 1.5A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-060640CMC 64MH 600MA 2LN TH |
350 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 64 mH @ 1 kHz | 600mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS26V-100250CMC 25MH 1A 2LN TH |
345 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 1A | 700mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21NV-20064CMC 6.4MH 2A 2LN TH |
270 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
