Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R0003NLTCMC 3LN SMD |
875 |
|
Datasheet |
Vertical, 6 Flat Lead | Signal Line | 3 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|

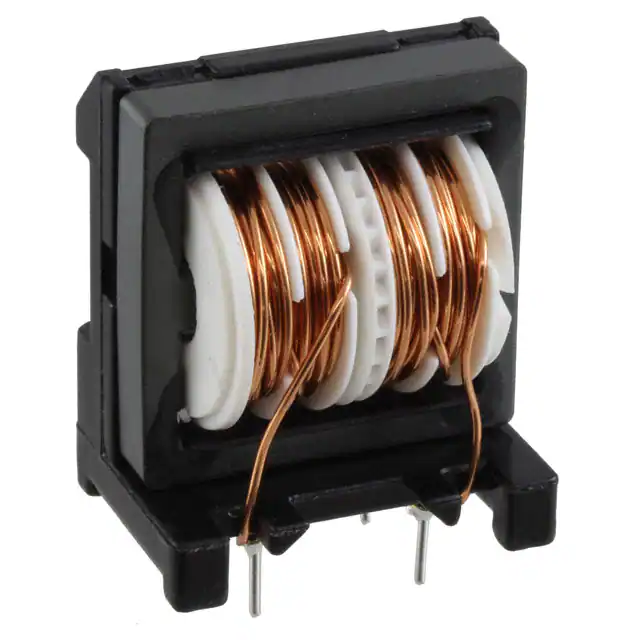

SS28V-25045-CHCMC 4.5MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

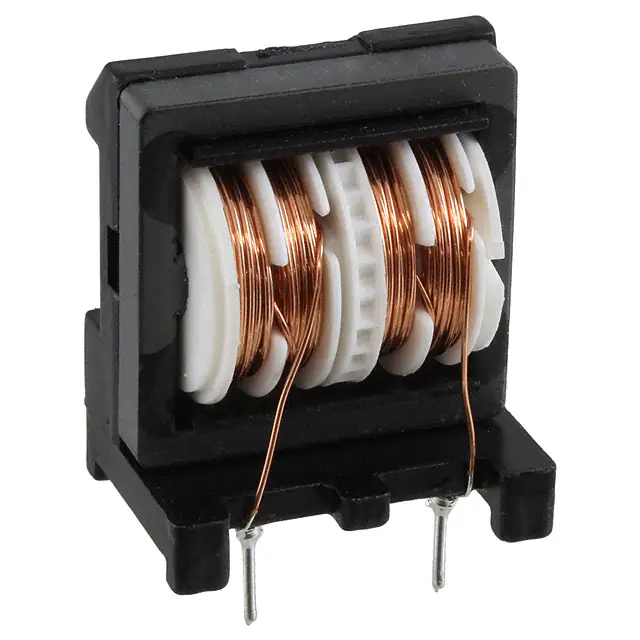

SS24V-R08250-CHCMC 25MH 800MA 2LN TH |
423 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 800mA | 750mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

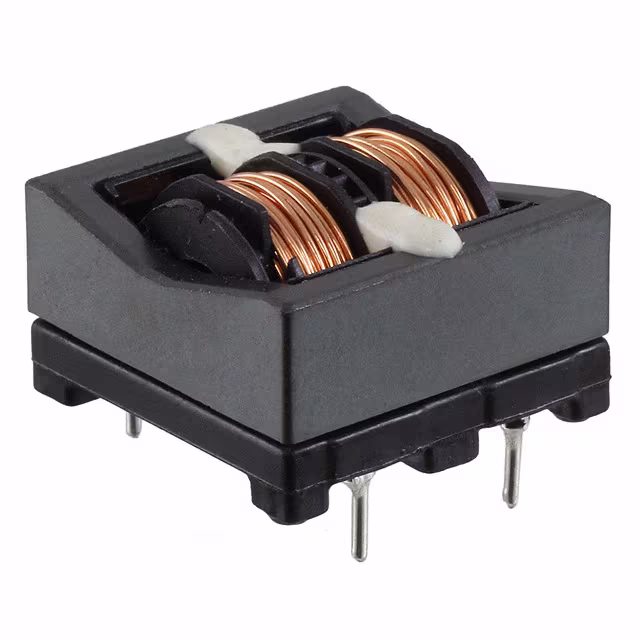

SSR21H-12150CMC 15MH 1.2A 2LN TH |
420 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.2A | 320mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NV-50041CMC 4.1MH 5A 2LN TH |
164 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 5A | 35mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-12655CMC 65.5MH 1.2A 2LN TH |
134 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 65.5 mH @ 10 kHz | 1.2A | 475mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

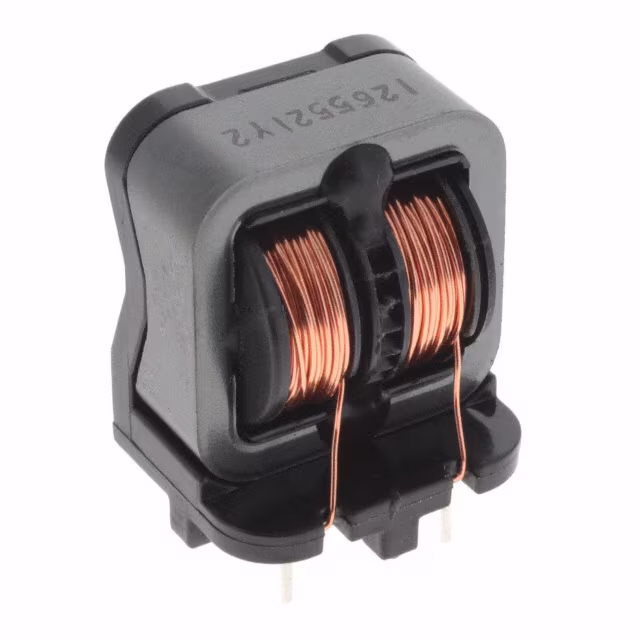

SSRH24NV-12655CMC 65.5MH 1.2A 2LN TH |
129 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 65.5 mH @ 10 kHz | 1.2A | 475mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AML0925-8R0M110-S1CMC 11A 2LN TH AEC-Q200 |
719 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 11A | 13mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS28H-R25080-CHCMC 8MH 2.5A 2LN TH |
323 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 2.5A | 160mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-02-08JSCMC 800UH 2A 2LN TH |
200 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 2A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSHB21H-12145CMC 14.5MH 1.2A 2LN TH |
241 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 1.2A | 490mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-06400CMC 40MH 600MA 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 40 mH @ 10 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-10184CMC 18.4MH 1A 2LN TH |
194 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18.4 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-20046CMC 4.6MH 2A 2LN TH |
178 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.6 mH @ 10 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-03656CMC 65.6MH 300MA 2LN TH |
3 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 65.6 mH @ 10 kHz | 300mA | 2.95Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
R0003NLCMC 3LN SMD |
950 |
|
Datasheet |
Vertical, 6 Flat Lead | Signal Line | 3 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
B82734W2232B030CMC 15MH 2.3A 2LN TH |
565 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.3A | 185mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82791G0015A016CMC 4.7MH 100MA 2LN TH |
321 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 100mA | 850mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J2482N020CMC 3.3MH 4.8A 2LN TH |
212 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4.8A | 46mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SH-322CMC 3A 2LN TH |
499 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 3A | 20mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
