Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSR21NH-M041500CMC 150MH 400MA 2LN TH |
469 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 10 kHz | 400mA | 2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ECMT1V2017H-2R0-RCMC 2MH 1.5A 2LN TH |
1,180 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 1.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-E120JKHCMC 12MH 2A 2LN TH |
317 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 2A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
FE2X10-3-3NLCMC 700MA 2LN TH |
1,130 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 700mA | 740mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN114-0.5-02-39MCMC 39MH 500MA 2LN TH |
625 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 500mA | 830mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SSRH24NVS-35080CMC 8MH 3.5A 2LN TH |
180 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 3.5A | 74mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21HS-08200CMC 20MH 800MA 2LN TH |
187 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 10 kHz | 800mA | 780mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SS21V-R080200CMC 20MH 800MA 2LN TH |
924 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS21V-R130066CMC 6.6MH 1.3A 2LN TH |
861 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.6 mH @ 1 kHz | 1.3A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

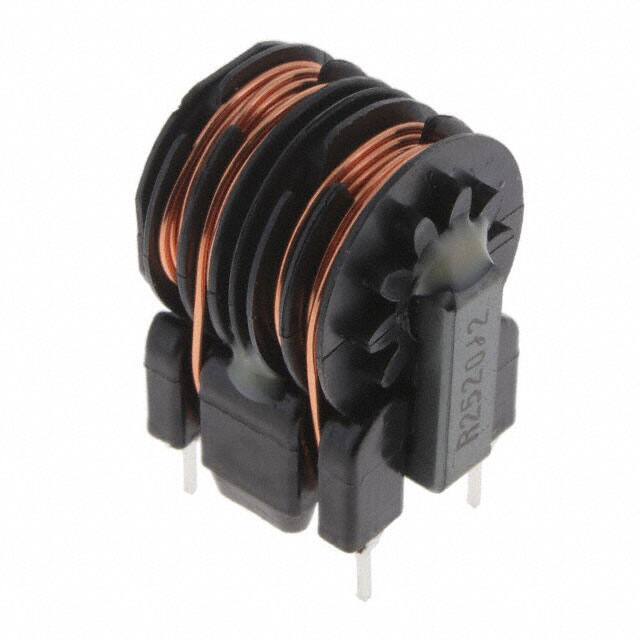

SS21V-R250023CMC 2.3MH 2.5A 2LN TH |
597 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 1 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R220026CMC 2.6MH 2.2A 2LN TH |
596 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 1 kHz | 2.2A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN214-0.5-02-56MCMC 56MH 500MA 2LN TH |
492 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN214-2-02-2M2CMC 2.2MH 2A 2LN TH |
143 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-02-70JCMC 7MH 2A 2LN TH |
133 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-25205CMC 20.5MH 2.5A 2LN TH |
3,344 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 20.5 mH @ 10 kHz | 2.5A | 145mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AML0620-5R9M6R8-S1CMC 6.8A 2LN TH AEC-Q200 |
324 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 6.8A | 16mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS30V-080730CMC 73MH 800MA 2LN TH |
201 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 73 mH @ 1 kHz | 800mA | 1.5Ohm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SS30V-450013CMC 1.3MH 4.5A 2LN TH |
156 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 1 kHz | 4.5A | 60mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
ECMT1V1714H-5R0-RCMC 5MH 1.4A 2LN TH |
911 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721A2252N020CMC 600UH 2.5A 2LN TH |
163 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 2.5A | 60mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
