Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSHB21HS-06378CMC 37.8MH 600MA 2LN TH |
116 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 37.8 mH @ 10 kHz | 600mA | 1.48Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-08262CMC 26.2MH 800MA 2LN TH |
115 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 26.2 mH @ 10 kHz | 800mA | 880mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-04610CMC 61MH 400MA 2LN TH |
110 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 61 mH @ 10 kHz | 400mA | 2.25Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
SH-311CMC 3.2UH 3A 2LN TH |
1,542 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.2 µH @ 100 kHz | 3A | 25mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SPDL975WM-500-2P-TCMC 5MA 2LN 500 OHM SMD |
698 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 5mA | 10Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
MGDU4-00002-PCOMMON MODE CHOKE |
587 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SSHB10H-04320CMC 23MH 400MA 2LN TH |
360 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 23 mH @ 10 kHz | 400mA | 2.7Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-22014CMC 1.4MH 2.2A 2LN TH |
314 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.4 mH @ 10 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10H-07120CMC 12MH 700MA 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 10 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB10HS-17019CMC 1.9MH 1.7A 2LN TH |
121 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.9 mH @ 10 kHz | 1.7A | 170mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
RN112-0.5-02-15MCMC 15MH 500MA 2LN TH |
612 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 700mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-03-06GJCMC 600UH 3A 2LN TH |
143 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 3A | 35mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
AML0615-2R9M7R5-S1CMC 7.5A 2LN TH AEC-Q200 |
709 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 7.5A | 12mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS21V-030930CMC 93MH 300MA 2LN TH |
538 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 93 mH @ 1 kHz | 300mA | 5.9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

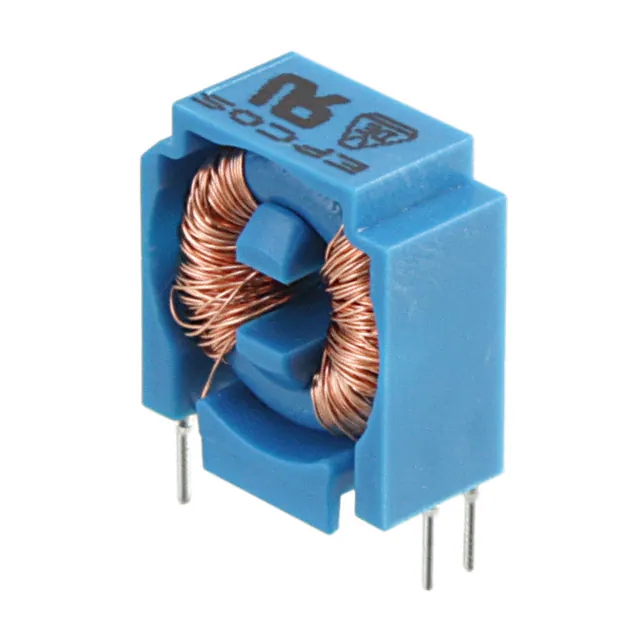

B82791H2401N001CMC 400MA 2LN TH |
5,670 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 400mA | 1.35Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN212-0.5-02-18MCMC 18MH 500MA 2LN TH |
475 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
AML0618-4R4M7R2-S1CMC 7.2A 2LN TH AEC-Q200 |
360 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 7.2A | 14mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
RN212-2.6-02-0M4CMC 400UH 2.6A 2LN TH |
157 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 10 kHz | 2.6A | 40mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN212-2-02-1M0CMC 1MH 2A 2LN TH |
207 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN212-0.4-02-27MCMC 27MH 400MA 2LN TH |
1,454 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.4Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
