Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82726S6123N020CMC 3.3MH 12A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 12A | 8.4mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIV-1-3236-122P-NKCMC 12A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 12A | 7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|

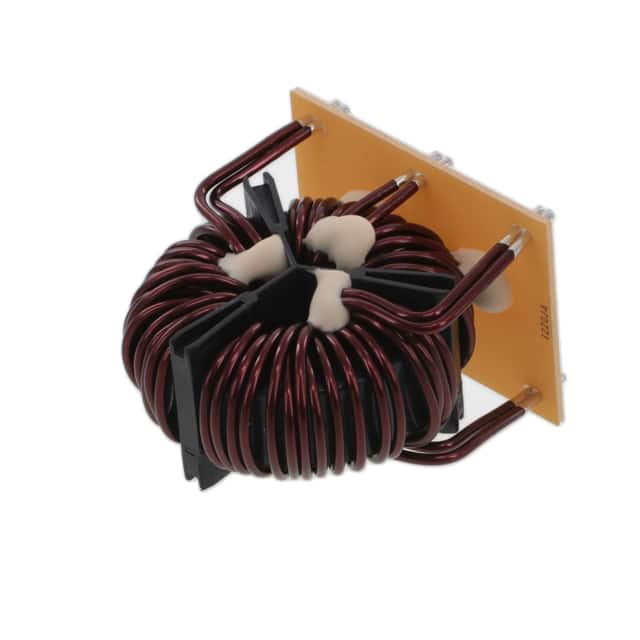

SCF47B-300-S2R0B012JCMC 1.2MH 30A 3LN TH |
4 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.2 mH @ 100 kHz | 30A | 2.4mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82747E6203A040CMC 1.5MH 20A 3LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 1.5 mH @ 10 kHz | 20A | 4.2mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
CM6560R-335CMC 3.3MH 1.2A 2LN SMD |
1 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 3.3 mH @ 10 kHz | 1.2A | 160mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
744833005240CMC 520UH 24A 3LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 520 µH @ 10 kHz | 24A | 3mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIH-3237-1010-NKCMC 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 10A | 10mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DLFP-0125-08D5CMC 8A 2LN CHAS MNT |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 8A | 54mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DKIV-1-3243-163P-NKCMC 16A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 16A | 5.7mOhm (Typ) | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
SCF25-06-2000CMC 20MH 6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 20 mH @ 100 kHz | 6A | 26mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
DKIH-3452-100N-NKCMC 10A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 10A | 7mOhm | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3452-120L-NKCMC 12A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 12A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3452-253J-NKCMC 25A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 25A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3452-32D7-NKCMC 32A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 32A | - | 500V | 500V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3458-105U-NKCMC 10A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 10A | 8mOhm | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3458-120M-NKCMC 12A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 12A | - | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|
|
DKIH-3458-32D7-NKCMC 32A 4LN TH |
0 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 32A | - | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|
DKIP-0229-1502CMC 15A 2LN CHAS MNT |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 15A | 8mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
RD6137-10-4M5CMC 4.5MH 10A 3LN TH |
0 |
|
Datasheet |
- | Power Line | 3 | - | 4.5 mH @ 400 Hz | 10A (Typ) | 18.35mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
DKIP-0229-2001CMC 20A 2LN CHAS MNT |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 20A | 6mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
