Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSF-28-0006CMC 3.15A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 3.15A | 45mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-20-E085JMCMC 1.2MH 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 20A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

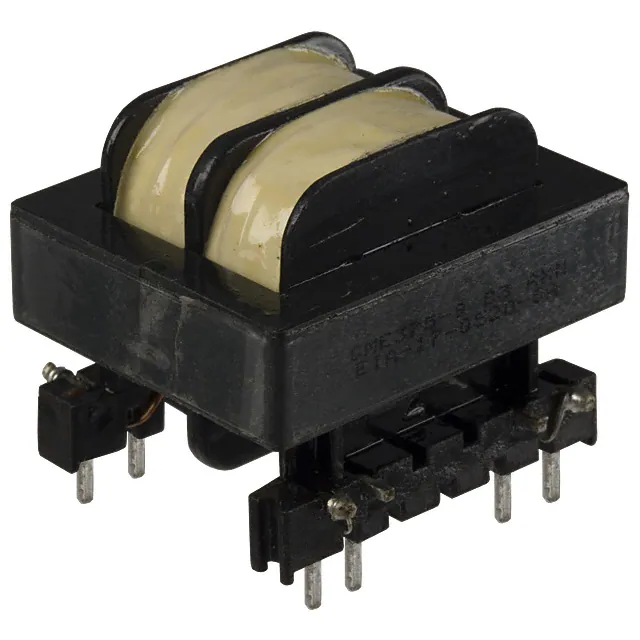

CME375-9CMC 176.1MH 870MA 2LN TH ESD |
12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 176.1 mH @ 10 kHz | 870mA | 1.98Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCR25XV-240-2R0A006JHCMC 440UH 24A 2LN TH AEC-Q200 |
20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

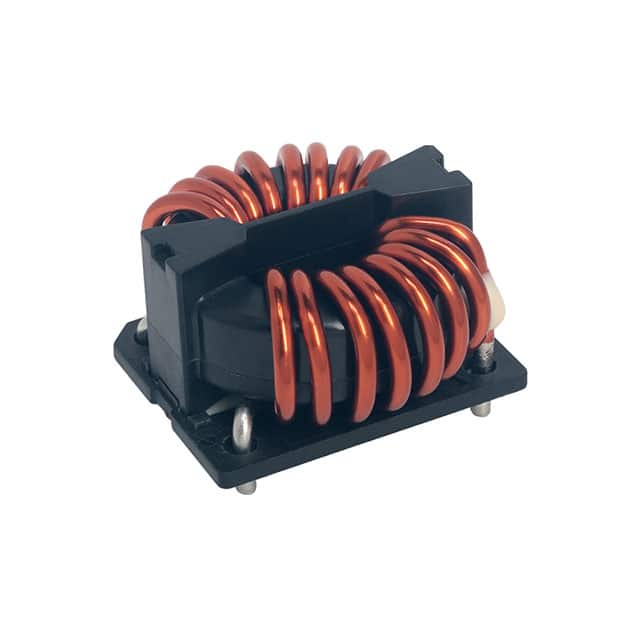

SCT29XV-210-2R1A010JHCMC 330UH 21A 2LN TH AEC-Q200 |
2 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 21A | 2.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
HCTC-1.2-16CMC 1.2MH 16A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

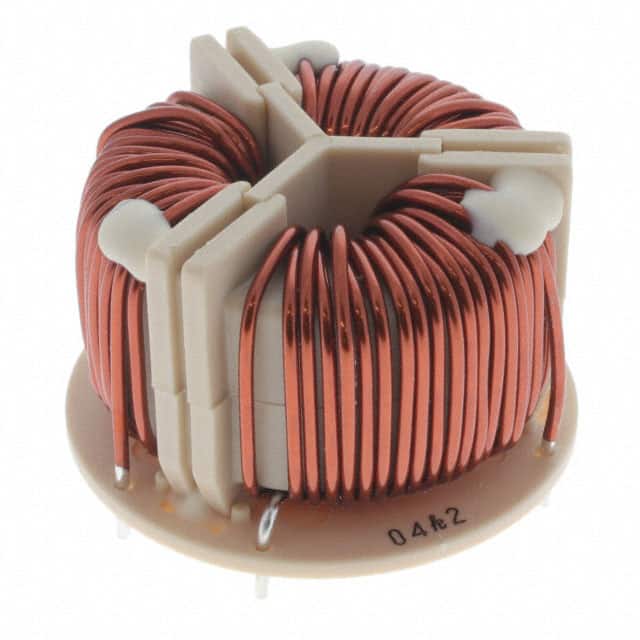

SCR31-010-S1R1A035JHCMC 3.5MH 1A 3LN TH |
16 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3.5 mH @ 100 kHz | 1A | 24mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
PH9408.814NLTCMC 18A 2LN 3.4K OHM SMD |
12 |
|
Datasheet |
Nonstandard | - | 2 | 3.4 kOhms @ 1.3 MHz | - | 18A | 6.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82615B2602M001CMC 700UH 6A 2LN TH PFC |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 6A | 100mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
|
B82615B2202M001CMC 5MH 2A 2LN TH PFC |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 900mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
B82725V2123U040CMC 3.6MH 12A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 10 kHz | 12A | 7.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF29XV-110-1R5A019JHCMC 4MH 11A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82726S2163N002CMC 1.4MH 16A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 16A | 7.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-04-E120JKHCMC 12MH 4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

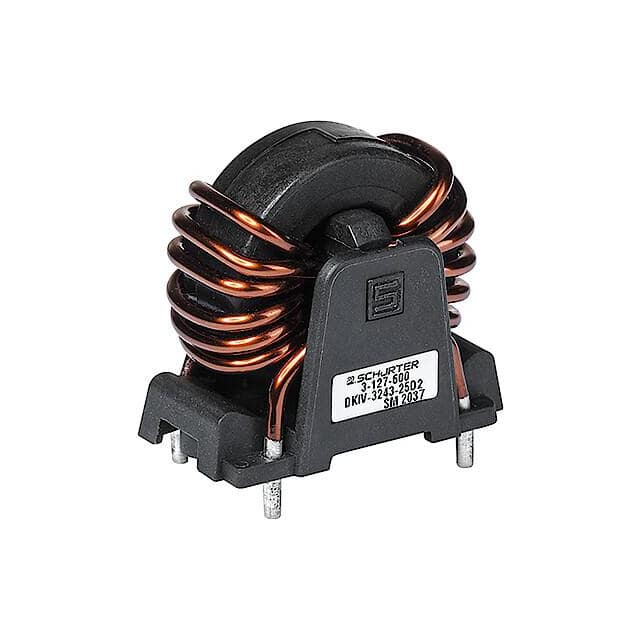

DKIV-1-3243-20D5CMC 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 20A | 2.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
|
DKIV-1-3243-25D2CMC 25A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 25A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
|
B82726S6103N001CMC 2.2MH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 10A | 12mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCR29XV-070-1R2A030JHCMC 5.5MH 7A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
DKIV-1-3236-102Q-NKCMC 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 10mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
|
DKIV-1-3253-32D8CMC 32A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 32A | 2.6mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
