Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECMS1V1306-701-RCMC 8A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF1006-102YCMC 1MH 520MA 2LN 1.4KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.4 kOhms @ 1 MHz | 1 mH @ 100 kHz | 520mA | 180mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
RC112-0.6-6M8CMC 6.8MH 600MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 600mA | 630mOhm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
SS24V-R20045-CHCMC 4.5MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSRH7H-M13064CMC 6.4MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.4 mH @ 10 kHz | 1.3A | 210mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9H-03050CMC 5MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 300mA | 3Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SS11VL-03550CMC 55MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 55 mH @ 1 kHz | 300mA | 4.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-30006CMC 600UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 1 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-R07190CMC 19MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 19 mH @ 1 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SRF1306-102YLINE FILTER 50VDC 0.35A |
0 |
|
Datasheet |
8-SMD, Gull Wing | - | 2 | 2.2 kOhms @ 500 kHz | 1 mH @ 100 kHz | 350mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

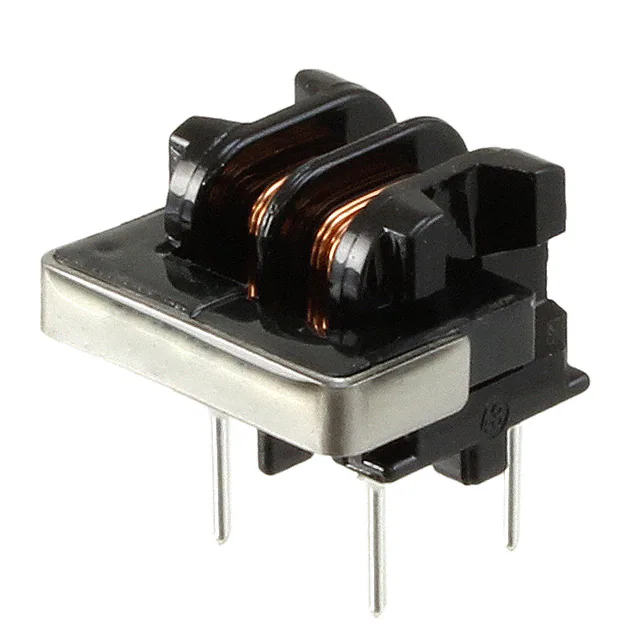

SU9H-R10008CMC 800UH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 1 kHz | 1A | 300mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SHO-303CMC 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6 µH @ 100 kHz | 5A | 8mOhm | 50V | - | -25°C ~ 75°C | - | - | - | - | - |
|
SSR10V-13097CMC 9.7MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 9.7 mH @ 10 kHz | 1.3A | 270mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU7VC-02120CMC 12MH 200MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 200mA | 6.5Ohm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
7448640415CMC 10MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 600mA | 708mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82730U3102A020CMC 1.8MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1A | 340mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
B82730U3262A020CMC 330UH 2.6A 2LN TH |
5 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 2.6A | 60mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
SSR10V-30016CMC 1.6MH 3A 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.6 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10VS-10135CMC 13.5MH 1A 2LN TH |
1 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1A | 430mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M06237CMC 23.7MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 23.7 mH @ 10 kHz | 600mA | 780mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
