Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR19XV-300-1R9A003JVCMC 56UH 30A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
PH9455.155NLCMC 1.62MH 19A 2LN 1.8K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.8 kOhms @ 10 MHz | 1.62 mH @ 10 MHz | 19A | 3.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

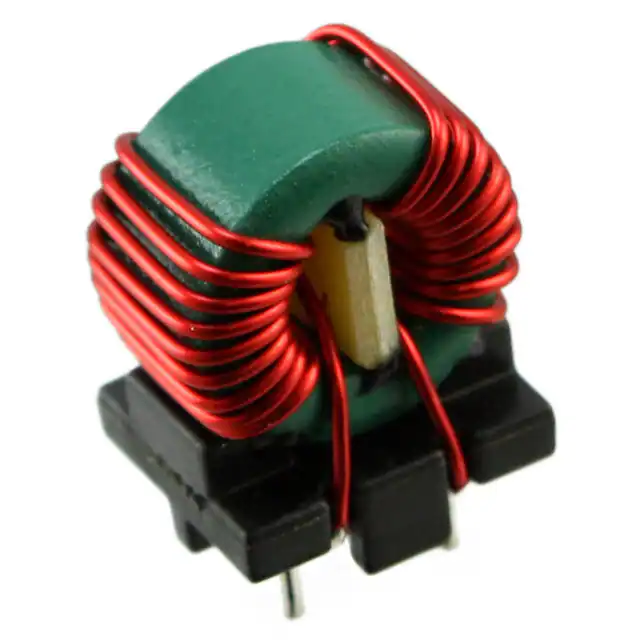

744842565CMC 65UH 5A 2LN TH |
21 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 µH @ 100 kHz | 5A | 14.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448025003CMC 2.5MH 5A 2LN TH |
15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 5A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448027001CMC 1MH 7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 7A | 6mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CMX1211Z680B-10CMC 68UH 50A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 100 kHz | 50A | 0.56mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF19XV-300-1R9A003JHCMC 110UH 30A 2LN TH AEC-Q200 |
18 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82725V2103U040CMC 5MH 11.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 11.5A | 8.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-280-2R1A005JHCMC 600UH 28A 2LN TH AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.44mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82746S6702A040CMC 6.2MH 8A 3LN TH |
0 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 6.2 mH @ 10 kHz | 8A | 18mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
36-00029-01CMC 350UH 40A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 350 µH @ 1 kHz | 40A | 2.2mOhm | 250V | - | - | - | - | - | - | - |
|
RT8132-16-3M0CMC 3MH 16A 3LN TH |
0 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3 mH @ 100 kHz | 16A | 8mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
CM6350R-155CMC 1.5MH 750MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 750mA | 190mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448061507CMC 7MH 15A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 15A | 9.5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448061309CMC 9MH 13A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 13A | 15mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CM6460R-104CMC 100UH 7A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 10 kHz | 7A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
744839010400CMC 10.5MH 40A 3LN TH |
1 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 10.5 mH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
SDCW2012C-2-900TFCMC 330MA 2LN 90 OHM SMD |
12 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SS11VL-08083CMC 8.3MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.3 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AWCU00453226104TM2CMC 100UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 1 MHz | 200mA | 2Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
