Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-05-103CMC 1MH 5A 2LN TH |
16 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82733V2232B001CMC 10MH 2.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 188mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

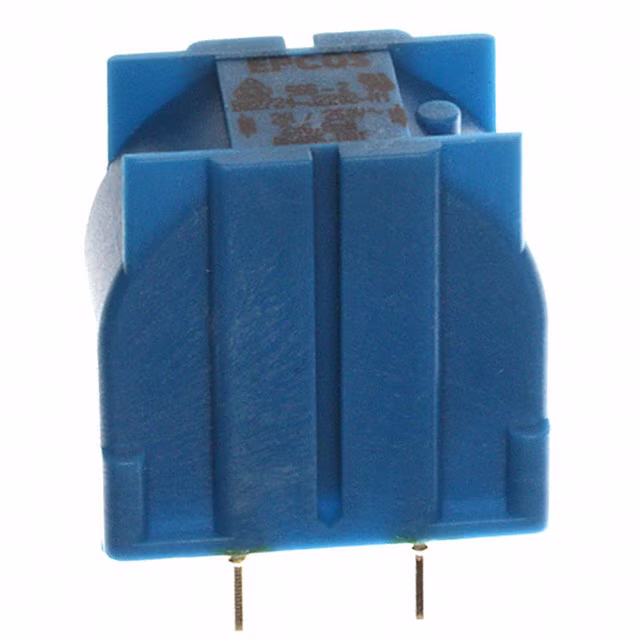

B82724J2202N001CMC 6.8MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724A2402N001CMC 3.3MH 4A 2LN TH |
14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM6032V201R-10CMC 8A 8LN 200 OHM SMD |
0 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7117-RCCMC 850UH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 850 µH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
PA5140.405NLTCMC 14A 2LN 1.67K OHM SMD |
9 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.67 kOhms @ 2.84 MHz | - | 14A | 5.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PLT-02CMC 7.5UH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 110V | -25°C ~ 100°C | - | UL | - | - | - |
|
P0527NLCMC 7.2A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
PLT09HN2003R0P1BCMC 3A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | 30mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
744824310CMC 10MH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 105mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA5141.105NLTCMC 32A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 2.82 MHz | - | 32A | 1.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HCTC-2-6.6CMC 2MH 6.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7446632003CMC 3.3MH 2.25A 2LN SMD |
18 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.25A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7122-RCCMC 25.5MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 25.5 mH @ 1 kHz | 4A | 130mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7123-RCCMC 9.35MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 9.35 mH @ 1 kHz | 5A | 72mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448680180CMC 150UH 20A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 20A | 1.9mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
7448680200CMC 120UH 23.5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 120 µH @ 10 kHz | 23.5A | 1.4mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|

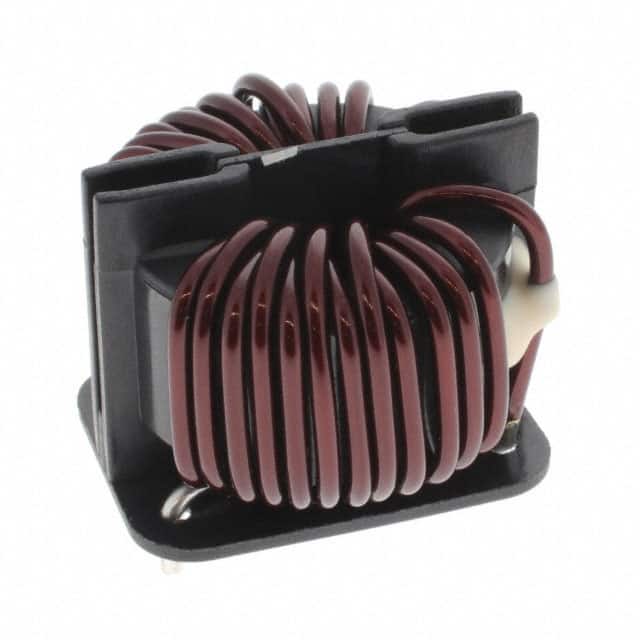

SCF-02-350JHCMC 35MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 2A | 220mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-15-05JCMC 500UH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 15A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
