Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744290472CMC 4.7MH 750MA 2LN SMD |
27 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 750mA | 520mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

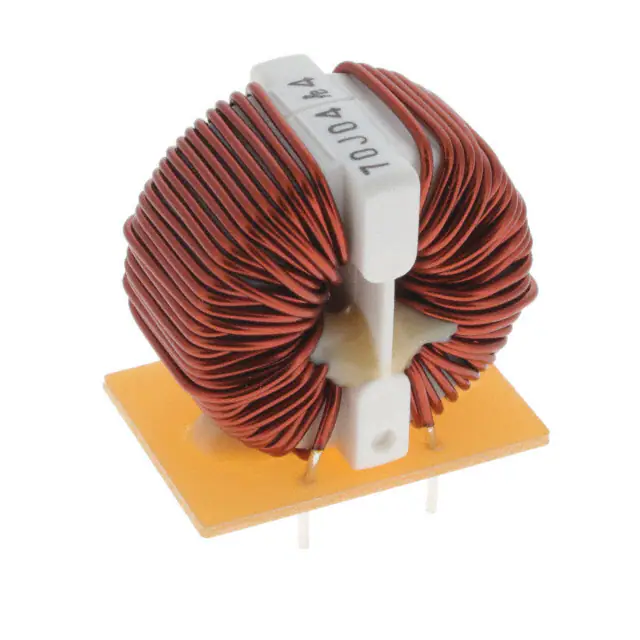

SC22-05-70JCMC 7MH 5A 2LN TH |
61 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 60mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC22-06-60JCMC 6MH 6A 2LN TH |
98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 6A | 46mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PA5140.305NLTCMC 305UH 17A 2LN 3.85K OHM SMD |
84 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 3.85 kOhms @ 3 MHz | 305 µH @ 3 MHz | 17A | 3.85mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7446221010CMC 10MH 1.3A 2LN TH |
91 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446221027CMC 27MH 600MA 2LN TH |
91 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 600mA | 700mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446222007CMC 6.8MH 1.5A 2LN TH |
77 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446220047CMC 47MH 400MA 2LN TH |
45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 400mA | 1.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN242-4-02-3M3CMC 3.3MH 4A 2LN TH |
55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-18-085JCMC 850UH 18A 2LN TH |
67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 18A | 6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724J8322N040CMC 10MH 3.2A 2LN TH |
86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3.2A | 80mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN143-2-02-10MCMC 10MH 2A 2LN TH |
92 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 240mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
7446721010CMC 10MH 1.3A 2LN TH |
89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.3A | 250mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446723001CMC 1.2MH 3A 2LN TH |
48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446722007CMC 6.8MH 1.5A 2LN TH |
48 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A | 200mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
ET2825-031CMC 10MH 2A 2LN TH ESD |
70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 250mOhm | - | 250V | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
744823305CMC 5MH 2.5A 2LN TH |
67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2.5A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-040-0R8A100JHCMC 10MH 4A 2LN TH |
43 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 4A | 66mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
744824220CMC 20MH 2A 2LN TH |
44 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 220mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PE-69011NLCMC 8LN SMD |
80 |
|
Datasheet |
Vertical, 16 Gull Wing | Signal Line | 8 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
