Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860160674022CAP ALUM 120UF 20% 50V RADIAL TH |
1,099 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 120 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 365.4 mA @ 120 Hz | 630 mA @ 100 kHz | 250 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UUD1A560MCL1GSCAP ALUM 56UF 20% 10V SMD |
1,044 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 56 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ESH108M6R3AH1AACAP ALUM 1000UF 20% 6.3V RADIAL |
7,971 |
|
Datasheet |
ESH | Bulk | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 540.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
Series.jpg)
|
EEE-FP1V330ALCAP ALUM 33UF 20% 35V SMD |
7,745 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-FC1C121HCAP ALUM 120UF 20% 16V RADIAL TH |
5,468 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 120 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 350 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.480" (12.20mm) | - | Through Hole | |
|
UPS1V151MPDCAP ALUM 150UF 20% 35V RADIAL TH |
2,880 |
|
Datasheet |
UPS | Bulk | Not For New Designs | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKYB500ELL270ME11DCAP ALUM 27UF 20% 50V RADIAL TH |
2,662 |
|
Datasheet |
KYB | Bulk | Active | 27 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95.2 mA @ 120 Hz | 238 mA @ 100 kHz | 480 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEE-HB1H6R8ARCAP ALUM 6.8UF 20% 50V SMD |
2,000 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 23 mA @ 120 Hz | 39.1 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UCD1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
4,800 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UVK2C100MPD1TDCAP ALUM 10UF 20% 160V RADIAL TH |
3,999 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 10 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 128 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UUX0J681MNL1GSCAP ALUM 680UF 20% 6.3V SMD |
2,187 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 408 mA @ 120 Hz | 530.4 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FC1V3R3ARCAP ALUM 3.3UF 20% 35V SMD |
2,169 |
|
Datasheet |
FC | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEU-FK1A821LCAP ALUM 820UF 20% 10V RADIAL TH |
1,597 |
|
Datasheet |
FK | Bulk | Active | 820 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 860 mA @ 100 kHz | 62 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
ATB226M016CAP ALUM 22UF 20% 16V SMD |
18,666 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | 12.06Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 112 mA @ 120 Hz | 160 mA @ 100 kHz | 1 Ohms | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.236" L x 0.217" W (6.00mm x 5.50mm) | Surface Mount | |
|
|
EEE-HB1A330ARCAP ALUM 33UF 20% 10V SMD |
3,477 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 43 mA @ 120 Hz | 73.1 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEE-HB1C220ARCAP ALUM 22UF 20% 16V SMD |
2,800 |
|
Datasheet |
HB | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UPJ1A331MPD1TDCAP ALUM 330UF 20% 10V RADIAL TH |
2,702 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 330 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | 260 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
865080249010CAP ALUM 220UF 20% 10V SMD |
1,457 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 185.25 mA @ 120 Hz | 285 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-HAJ101WARCAP ALUM 100UF 20% 6.3V SMD |
27,779 |
|
Datasheet |
HA | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 47 mA @ 120 Hz | 79.9 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

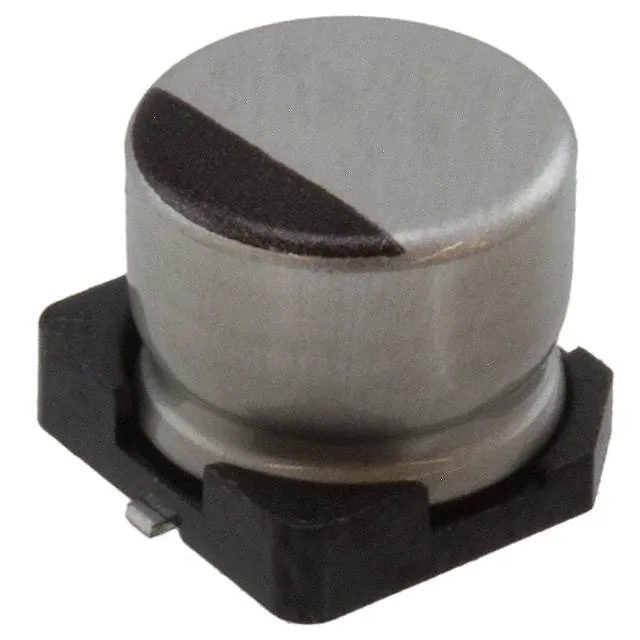

UWZ1E330MCL1GBCAP ALUM 33UF 20% 25V SMD |
3,457 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 48 mA @ 120 Hz | 72 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
