Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVK1E331MPD1TDCAP ALUM 330UF 20% 25V RADIAL TH |
2,955 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 585 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-HAA470WARCAP ALUM 47UF 20% 10V SMD |
2,885 |
|
Datasheet |
HA | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 43 mA @ 120 Hz | 73.1 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEE-HAV220WARCAP ALUM 22UF 20% 35V SMD |
2,868 |
|
Datasheet |
HA | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWZ1C330MCL1GBCAP ALUM 33UF 20% 16V SMD |
2,574 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 40 mA @ 120 Hz | 60 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
SK4R7M063STCAP ALUM 4.7UF 20% 63V RADIAL TH |
1,387 |
|
Datasheet |
SK | Bulk | Active | 4.7 µF | ±20% | 63 V | 25.41Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 58.5 mA @ 1 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

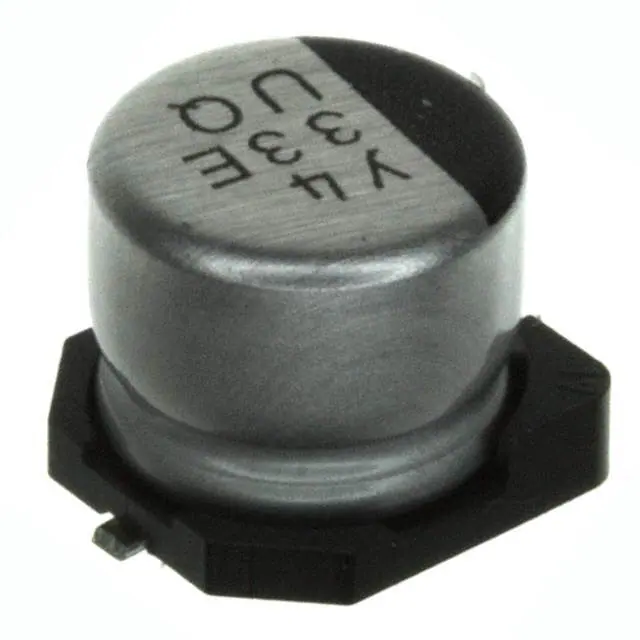

UUQ1E220MCL1GBCAP ALUM 22UF 20% 25V SMD |
7,102 |
|
Datasheet |
UUQ | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-HB1V100SRCAP ALUM 10UF 20% 35V SMD |
4,916 |
|
Datasheet |
HB | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
865090649011CAP ALUM 22UF 20% 50V SMD |
2,778 |
|
Datasheet |
WCAP-ASLU | Tape & Reel (TR) | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 52 mA @ 120 Hz | 78 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-HC1E330PCAP ALUM 33UF 20% 25V SMD |
2,771 |
|
Datasheet |
HC | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
860160575020CAP ALUM 220UF 20% 35V RADIAL TH |
1,839 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 220 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 515.04 mA @ 120 Hz | 888 mA @ 100 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UUD0J270MCL1GSCAP ALUM 27UF 20% 6.3V SMD |
1,722 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 27 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 40 mA @ 120 Hz | - | 1.8 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UWG1E6R8MCL1GBCAP ALUM 6.8UF 20% 25V SMD |
1,721 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 30 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UVR2A470MPD1CVCAP ALUM 47UF 20% 100V RADIAL TH |
1,500 |
|
Datasheet |
UVR | Bulk | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 460 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
ATB476M035E058CAP ALUM 47UF 20% 35V SMD |
15,804 |
|
Datasheet |
ATB | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | 4.233Ohm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 168 mA @ 120 Hz | 240 mA @ 100 kHz | 520 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Surface Mount | |
|
EEE-FN1E330RCAP ALUM 33UF 20% 25V SMD |
9,925 |
|
Datasheet |
FN | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEE-HAA101WAPCAP ALUM 100UF 20% 10V SMD |
2,526 |
|
Datasheet |
HA | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 120.7 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ELXY160ELL121MFB5DCAP ALUM 120UF 20% 16V RADIAL TH |
1,988 |
|
Datasheet |
LXY | Bulk | Active | 120 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 109.2 mA @ 120 Hz | 273 mA @ 100 kHz | 350 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
100ZLJ18M6.3X11CAP ALUM 18UF 20% 100V RADIAL TH |
1,927 |
|
Datasheet |
ZLJ | Bulk | Active | 18 µF | ±20% | 100 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 155.4 mA @ 120 Hz | 370 mA @ 100 kHz | 460 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVK0J102MPD1TDCAP ALUM 1000UF 20% 6.3V RADIAL |
1,799 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 621 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-FK0J680SRCAP ALUM 68UF 20% 6.3V SMD |
10,389 |
|
Datasheet |
FKS | Tape & Reel (TR) | Not For New Designs | 68 µF | ±20% | 6.3 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
