Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
380LQ821M250K022CAP ALUM 820UF 20% 250V SNAP TH |
1,189 |
|
Datasheet |
380LQ | Bulk | Active | 820 µF | ±20% | 250 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 3.88 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450MXH390MEFCSN25X55CAP ALUM 390UF 20% 450V SNAP TH |
199 |
|
Datasheet |
MXH | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|

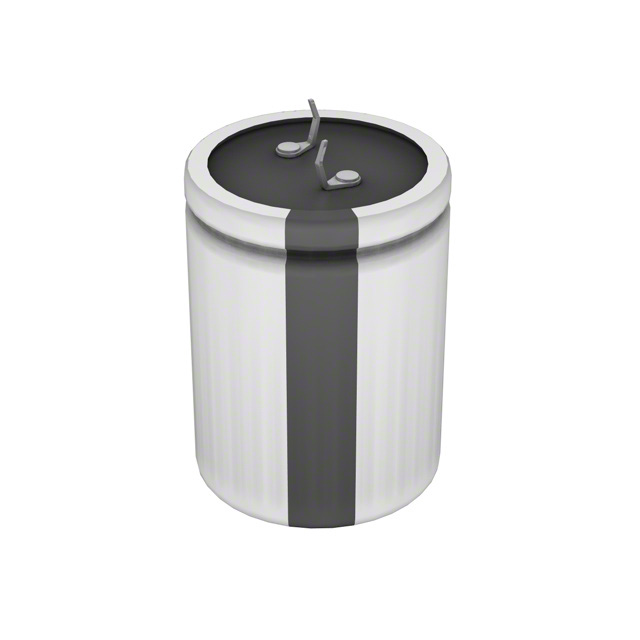

LPX331M400E7P3CAP ALUM 330UF 20% 400V SNAP TH |
933 |
|
Datasheet |
LPX | Bulk | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
PEG227HMS5100QE4CAP ALUM 10500UF 25V AXIAL TH |
513 |
|
Datasheet |
PEG227 | Tray | Active | 10500 µF | -10%, +30% | 25 V | 18mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.465 A @ 100 Hz | 9.9 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
|
ALH82A181CF550CAP ALUM 180UF 20% 550V SNAP TH |
463 |
|
Datasheet |
ALH82 | Tray | Active | 180 µF | ±20% | 550 V | 724mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 4.86 A @ 10 kHz | 497 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGN2G391MELC30CAP ALUM 390UF 20% 400V SNAP TH |
128 |
|
Datasheet |
LGN | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAQ2G221MELB35CAP ALUM 220UF 20% 400V SNAP TH |
142 |
|
Datasheet |
LAQ | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.426 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL212019331E3CAP ALUM 330UF 20% 100V AXIAL TH |
752 |
|
Datasheet |
120 ATC | Bulk | Active | 330 µF | ±20% | 100 V | 120mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.55 A @ 10 kHz | 117 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
450MXK270MEFCSN22X45CAP ALUM 270UF 20% 450V SNAP TH |
252 |
|
Datasheet |
MXK | Tray | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF80C122DD200CAP ALUM 1200UF 20% 200V PRESS |
1,471 |
|
Datasheet |
ALF80 | Bulk | Active | 1200 µF | ±20% | 200 V | 181.8mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
MAL215759479E3CAP ALUM 47UF 20% 500V SNAP TH |
838 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 47 µF | ±20% | 500 V | 3.54Ohm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Audio | - | - | 2.93 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LQ471M350A022CAP ALUM 470UF 20% 350V SNAP TH |
4,439 |
|
Datasheet |
381LQ | Bulk | Active | 470 µF | ±20% | 350 V | 353mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

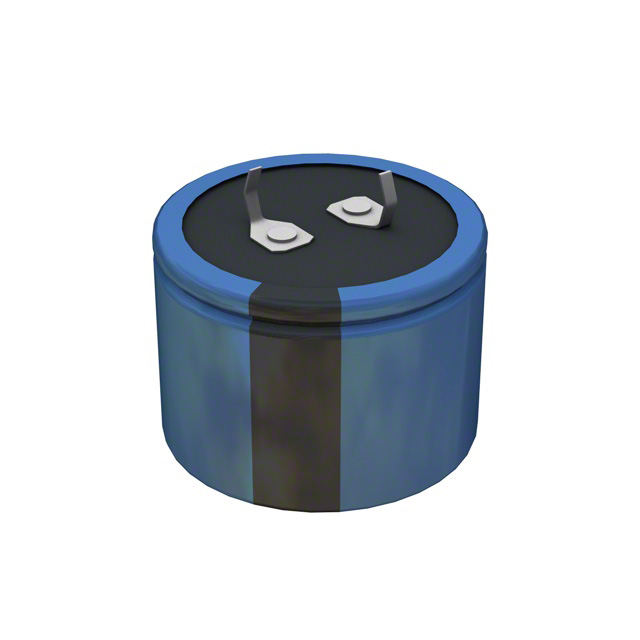

381LX822M035A012CAP ALUM 8200UF 20% 35V SNAP TH |
537 |
|
Datasheet |
381LX | Bulk | Active | 8200 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALH82A101CC550CAP ALUM 100UF 20% 550V SNAP TH |
402 |
|
Datasheet |
ALH82 | Tray | Active | 100 µF | ±20% | 550 V | 1.299Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 3.38 A @ 10 kHz | 892 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGW2W271MELA50CAP ALUM 270UF 20% 450V SNAP TH |
255 |
|
Datasheet |
LGW | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.4882 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGG2C182MELC30CAP ALUM 1800UF 20% 160V SNAP TH |
440 |
|
Datasheet |
LGG | Bulk | Active | 1800 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.825 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX822M063A032CAP ALUM 8200UF 20% 63V SNAP TH |
551 |
|
Datasheet |
380LX | Bulk | Active | 8200 µF | ±20% | 63 V | 67mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 6.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41252A9478M000CAP ALUM 4700UF 20% 100V SNAP TH |
147 |
|
Datasheet |
B41252 | Bulk | Active | 4700 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGL2G331MELA35CAP ALUM 330UF 20% 400V SNAP TH |
240 |
|
Datasheet |
LGL | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX103M050K052CAP ALUM 10000UF 20% 50V SNAP TH |
6,819 |
|
Datasheet |
381LX | Bulk | Active | 10000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
