Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43624E2108M000CAP ALUM 1000UF 20% 250V SNAP TH |
171 |
|
Datasheet |
B43624 | Bulk | Active | 1000 µF | ±20% | 250 V | 90mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.53 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

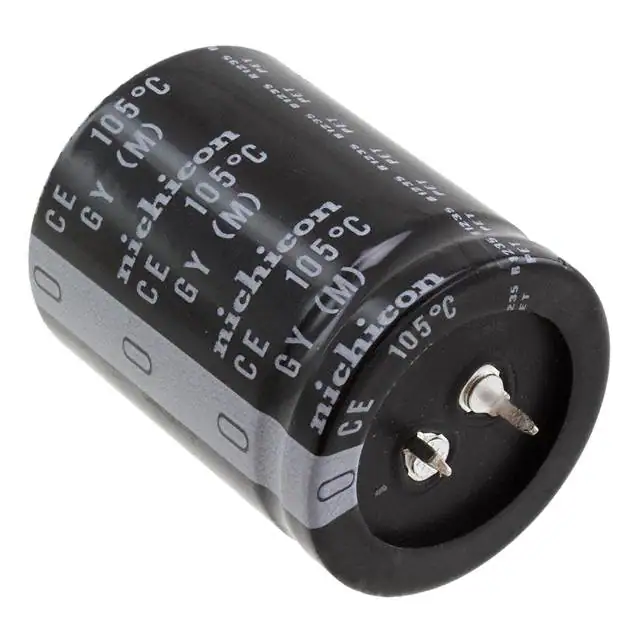

LGY1E273MELC45CAP ALUM 27000UF 20% 25V SNAP TH |
368 |
|
Datasheet |
LGY | Bulk | Active | 27000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMQ401VSN561MR50SCAP ALUM 560UF 20% 400V SNAP TH |
108 |
|
Datasheet |
KMQ | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMH250VSN472MP25UCAP ALUM 4700UF 20% 25V SNAP TH |
1,237 |
|
Datasheet |
KMH | Bulk | Active | 4700 µF | ±20% | 25 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.62 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX271M400J052CAP ALUM 270UF 20% 400V SNAP TH |
5,235 |
|
Datasheet |
381LX | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LX152M250A052CAP ALUM 1500UF 20% 250V SNAP TH |
1,639 |
|
Datasheet |
380LX | Bulk | Active | 1500 µF | ±20% | 250 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 5.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
TVAN1306.1CAP ALUM 25UF 50V AXIAL TH |
250 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 25 µF | - | 50 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.375" Dia x 0.812" L (9.52mm x 20.62mm) | - | - | Through Hole | |
|
LLS1H153MELCCAP ALUM 15000UF 20% 50V SNAP TH |
398 |
|
Datasheet |
LLS | Bulk | Active | 15000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.56 A @ 120 Hz | 7.544 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43541B7107M000CAP ALUM 100UF 20% 550V SNAP TH |
311 |
|
Datasheet |
B43541 | Tray | Active | 100 µF | ±20% | 550 V | 1.32Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 2.1 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGR2E122MELC50CAP ALUM 1200UF 20% 250V SNAP TH |
582 |
|
Datasheet |
LGR | Bulk | Active | 1200 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205657332E3CAP ALUM 3300UF 20% 40V SNAP TH |
1,990 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 3300 µF | ±20% | 40 V | 67mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.09 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLP102M250H7P3CAP ALUM 1000UF 20% 250V SNAP TH |
1,620 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1000 µF | ±20% | 250 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

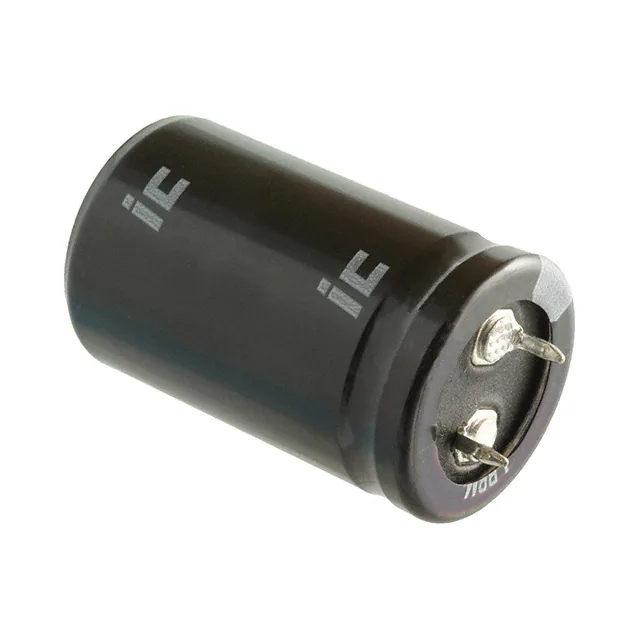

109LBB050M2DECAP ALUM 10000UF 20% 50V SNAP TH |
1,102 |
|
Datasheet |
LBB | Bulk | Active | 10000 µF | ±20% | 50 V | 33.16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.35 A @ 120 Hz | 4.1875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400MXG390MEFCSN25X50CAP ALUM 390UF 20% 400V SNAP TH |
551 |
|
Datasheet |
MXG | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LQSW6391MELB40CAP ALUM 390UF 20% 420V SNAP TH |
187 |
|
Datasheet |
LQS | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.3023 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
80MXG3300MEFCSN22X50CAP ALUM 3300UF 20% 80V SNAP TH |
187 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.036 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ102M250A022CAP ALUM 1000UF 20% 250V SNAP TH |
1,334 |
|
Datasheet |
380LQ | Bulk | Active | 1000 µF | ±20% | 250 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 120 Hz | 4.65 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205658102E3CAP ALUM 1000UF 20% 63V SNAP TH |
130 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 1000 µF | ±20% | 63 V | 148mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.46 A @ 100 Hz | - | 104 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGW2E681MELA40CAP ALUM 680UF 20% 250V SNAP TH |
377 |
|
Datasheet |
LGW | Bulk | Active | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.825 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGU1H123MELCCAP ALUM 12000UF 20% 50V SNAP TH |
176 |
|
Datasheet |
LGU | Bulk | Active | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.56 A @ 120 Hz | 5.244 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
