Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX471M400E4P3CAP ALUM 470UF 20% 400V SNAP TH |
13,736 |
|
Datasheet |
SLPX | Bulk | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.69 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL211816222E3CAP ALUM 2200UF 20% 25V AXIAL TH |
554 |
|
Datasheet |
118 AHT | Bulk | Active | 2200 µF | ±20% | 25 V | 185mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.488 A @ 10 kHz | 170 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
B43501A9337M000CAP ALUM 330UF 20% 400V SNAP TH |
314 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | 200mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKX2E471MESA35CAP ALUM 470UF 20% 250V SNAP TH |
212 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43501A9477M002CAP ALUM 470UF 20% 400V SNAP TH |
130 |
|
Datasheet |
B43501 | Bulk | Active | 470 µF | ±20% | 400 V | 140mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

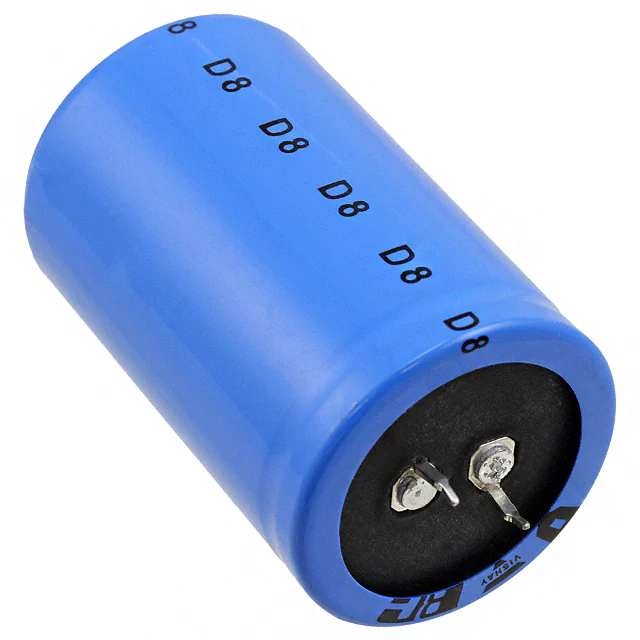

MAL215819102E3CAP ALUM 1000UF 20% 100V SNAP TH |
774 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 1000 µF | ±20% | 100 V | 261mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 234 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEG227HLQ4710QE4CAP ALUM 7100UF 25V AXIAL TH |
286 |
|
Datasheet |
PEG227 | Tray | Active | 7100 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.08 A @ 100 Hz | 8.8 A @ 5 kHz | - | - | 0.717" Dia x 1.524" L (18.20mm x 38.70mm) | - | - | Through Hole | |
|
LGW2D122MELC30CAP ALUM 1200UF 20% 200V SNAP TH |
235 |
|
Datasheet |
LGW | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 6.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLS2E122MELCCAP ALUM 1200UF 20% 250V SNAP TH |
370 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 5.76 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
PEG227KKP4220ME4CAP ALUM 2200UF 20% 40V AXIAL TH |
487 |
|
Datasheet |
PEG227 | Tray | Active | 2200 µF | ±20% | 40 V | 47mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.52 A @ 100 Hz | 7.2 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|
EKMQ251VSN102MR40SCAP ALUM 1000UF 20% 250V SNAP TH |
389 |
|
Datasheet |
KMQ | Bulk | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2E122MELB45CAP ALUM 1200UF 20% 250V SNAP TH |
182 |
|
Datasheet |
LAR | Bulk | Active | 1200 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
381LX562M063K452CAP ALUM 5600UF 20% 63V SNAP TH |
3,254 |
|
Datasheet |
381LX | Bulk | Active | 5600 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2G331MELA40CAP ALUM 330UF 20% 400V SNAP TH |
400 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

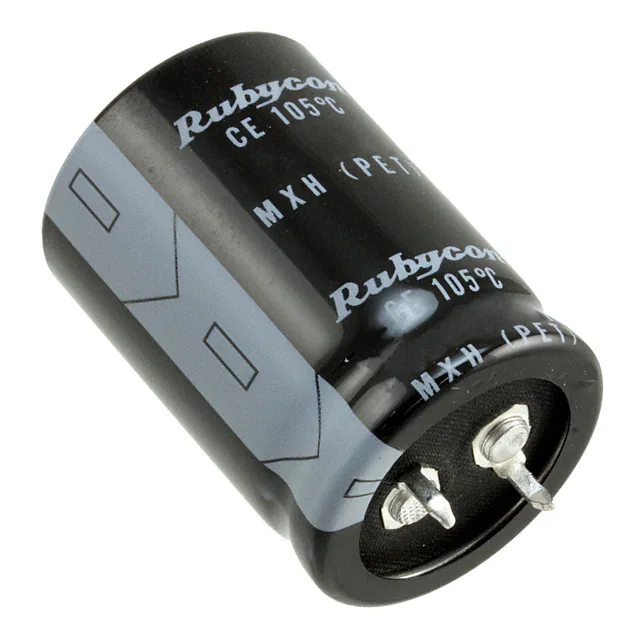

500MXH180MEFCSN22X60CAP ALUM 180UF 20% 500V SNAP TH |
200 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|

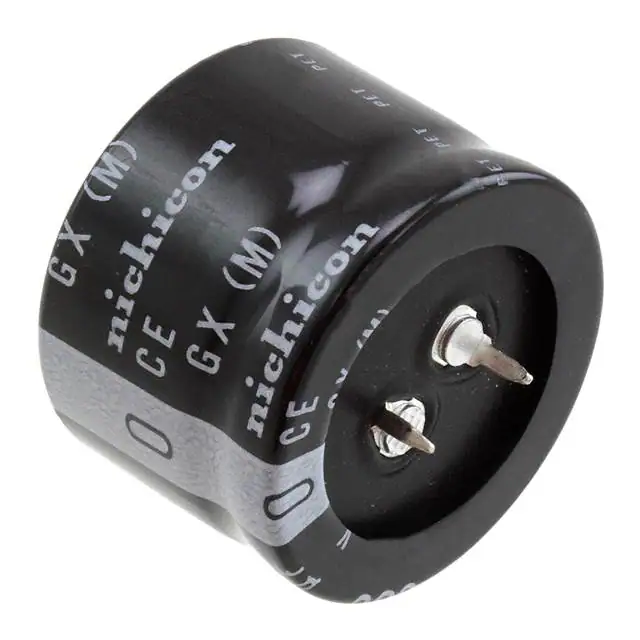

LGX2H151MELC25CAP ALUM 150UF 20% 500V SNAP TH |
126 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LGW2W331MELC35CAP ALUM 330UF 20% 450V SNAP TH |
727 |
|
Datasheet |
LGW | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.146 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EKMQ401VSN561MA40SCAP ALUM 560UF 20% 400V SNAP TH |
215 |
|
Datasheet |
KMQ | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
450MXH330MEFCSN22X60CAP ALUM 330UF 20% 450V SNAP TH |
119 |
|
Datasheet |
MXH | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.604 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|

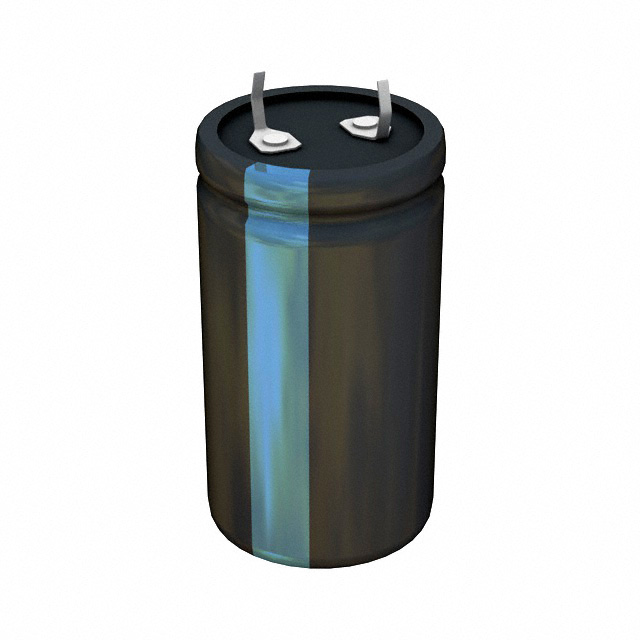

381LR681M250J452CAP ALUM 680UF 20% 250V SNAP TH |
2,969 |
|
Datasheet |
381LR | Bulk | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.42 A @ 120 Hz | 3.45 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
