Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGL2G331MELZ45CAP ALUM 330UF 20% 400V SNAP TH |
278 |
|
Datasheet |
LGL | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL225638472E3CAP ALUM 4700UF 20% 63V SNAP TH |
146 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 4700 µF | ±20% | 63 V | 85mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 3.012 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2E102MELBCAP ALUM 1000UF 20% 250V SNAP TH |
135 |
|
Datasheet |
LGU | Bulk | Active | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 3.705 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

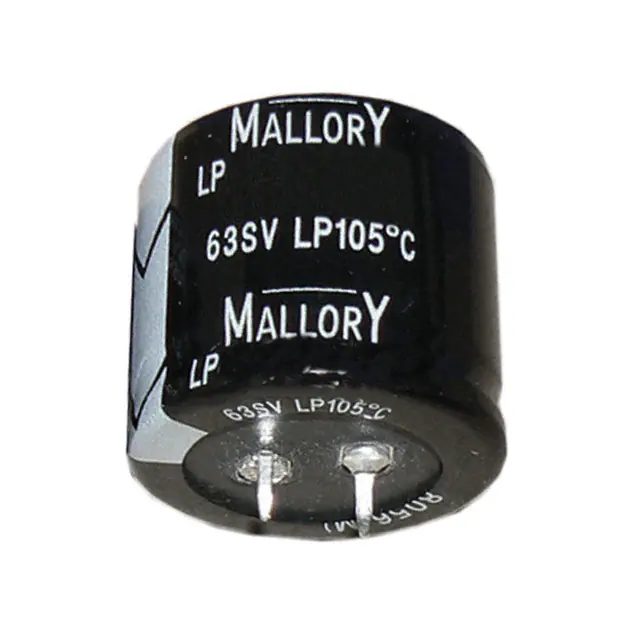

LP472M050H3P3CAP ALUM 4700UF 20% 50V SNAP TH |
119 |
|
Datasheet |
LP | Bulk | Active | 4700 µF | ±20% | 50 V | 71mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 2.497 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LGG2W331MELB35CAP ALUM 330UF 20% 450V SNAP TH |
208 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43548C6227M060CAP ALUM 220UF 20% 500V SNAP TH |
143 |
|
Datasheet |
B43548 | Bulk | Active | 220 µF | ±20% | 500 V | 320mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 100 Hz | - | 450 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX393M016A032CAP ALUM 39000UF 20% 16V SNAP TH |
2,250 |
|
Datasheet |
380LX | Bulk | Active | 39000 µF | ±20% | 16 V | 22mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.95 A @ 120 Hz | 8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

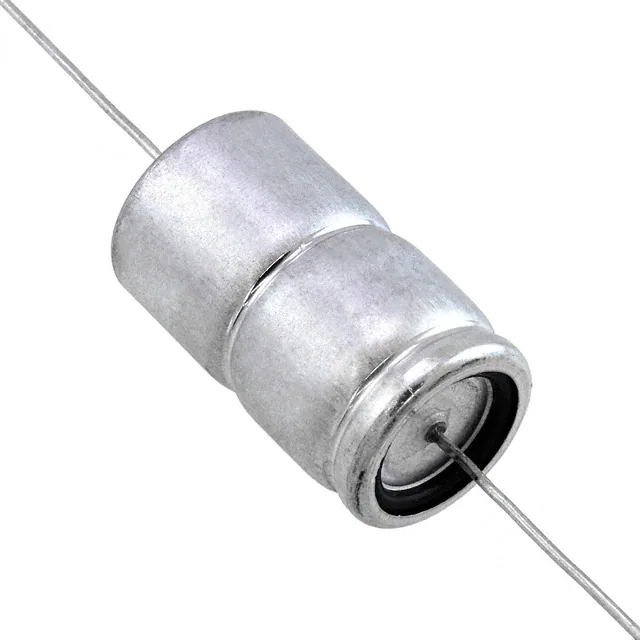

PEG226HJ4330QE4CAP ALUM 3300UF 25V AXIAL TH |
958 |
|
Datasheet |
PEG226 | Bulk | Active | 3300 µF | -10%, +30% | 25 V | 34mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 9.03 A @ 100 Hz | 25.8 A @ 5 kHz | - | - | 0.795" Dia x 1.366" L (20.20mm x 34.70mm) | - | - | Through Hole | |
|
ALH82A750CB600CAP ALUM 75UF 20% 600V SNAP TH |
428 |
|
Datasheet |
ALH82 | Tray | Active | 75 µF | ±20% | 600 V | 1.861Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 100 Hz | 2.74 A @ 10 kHz | 1.257 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGW2D122MELB40CAP ALUM 1200UF 20% 200V SNAP TH |
144 |
|
Datasheet |
LGW | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 6.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGU2A332MELBCAP ALUM 3300UF 20% 100V SNAP TH |
176 |
|
Datasheet |
LGU | Bulk | Active | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.32 A @ 120 Hz | 3.818 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
TVAN1207.1CAP ALUM 100UF 25V AXIAL TH |
155 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 100 µF | - | 25 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.375" Dia x 0.937" L (9.52mm x 23.80mm) | - | - | Through Hole | |
|
LGNW6331MELC30CAP ALUM 330UF 20% 420V SNAP TH |
180 |
|
Datasheet |
LGN | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGY1H123MELC45CAP ALUM 12000UF 20% 50V SNAP TH |
136 |
|
Datasheet |
LGY | Bulk | Active | 12000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 3.91 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

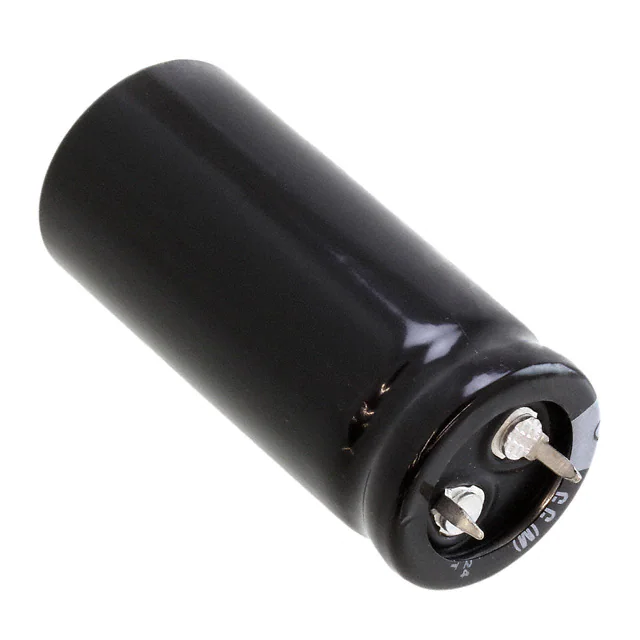

LGG2G331MELZ50CAP ALUM 330UF 20% 400V SNAP TH |
116 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEG227KML4270QE4CAP ALUM 2700UF 40V AXIAL TH |
1,102 |
|
Datasheet |
PEG227 | Tray | Active | 2700 µF | -10%, +30% | 40 V | 40mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole | |
|
MAL205659102E3CAP ALUM 1000UF 20% 100V SNAP TH |
610 |
|
Datasheet |
056 PSM-SI | Cut Tape (CT) | Active | 1000 µF | ±20% | 100 V | 265mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.27 A @ 100 Hz | - | 235 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

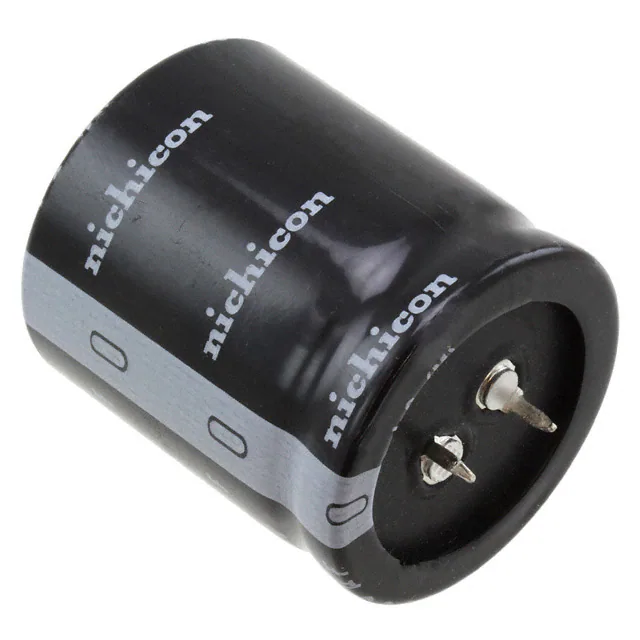

LLG2D222MELC40CAP ALUM 2200UF 20% 200V SNAP TH |
974 |
|
Datasheet |
LLG | Bulk | Active | 2200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | 6.27 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D307M050FH2ACAP ALUM 300UF 20% 50V AXIAL TH |
256 |
|
Datasheet |
500D | Bulk | Active | 300 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.492" Dia x 1.496" L (12.50mm x 38.00mm) | - | - | Through Hole | |
|
|
PEG228HLQ4470QE4CAP ALUM 4700UF 25V AXIAL TH |
319 |
|
Datasheet |
PEG228 | Tray | Active | 4700 µF | -10%, +30% | 25 V | 27mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.08 A @ 100 Hz | 8.8 A @ 5 kHz | - | - | 0.717" Dia x 1.524" L (18.20mm x 38.70mm) | - | - | Through Hole |
