Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGN2V681MELC40CAP ALUM 680UF 20% 350V SNAP TH |
132 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
100MXG3300MEFCSN25X50CAP ALUM 3300UF 20% 100V SNAP TH |
235 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGL2G271MELZ35CAP ALUM 270UF 20% 400V SNAP TH |
142 |
|
Datasheet |
LGL | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205156472E3CAP ALUM 4700UF 20% 25V RADIAL |
825 |
|
Datasheet |
051 PEC-PW | Bulk | Active | 4700 µF | ±20% | 25 V | 60mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | - | 42 mOhms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGW2W391MELB50CAP ALUM 390UF 20% 450V SNAP TH |
317 |
|
Datasheet |
LGW | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.432 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LKX2W221MESA45CAP ALUM 220UF 20% 450V SNAP TH |
220 |
|
Datasheet |
LKX | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LLS2A562MELCCAP ALUM 5600UF 20% 100V SNAP TH |
154 |
|
Datasheet |
LLS | Bulk | Active | 5600 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.88 A @ 120 Hz | 6.762 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

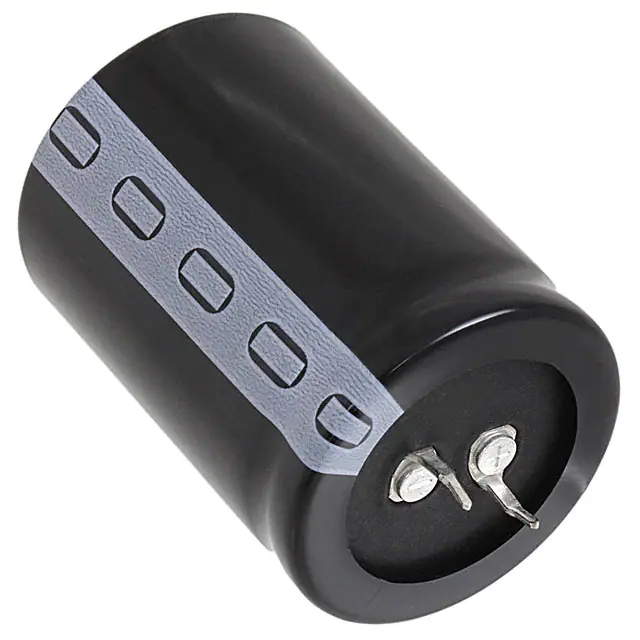

B41505A8688M000CAP ALUM 6800UF 20% 63V SNAP TH |
220 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 6800 µF | ±20% | 63 V | 29mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | - | 31 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ331M400A012CAP ALUM 330UF 20% 400V SNAP TH |
3,318 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

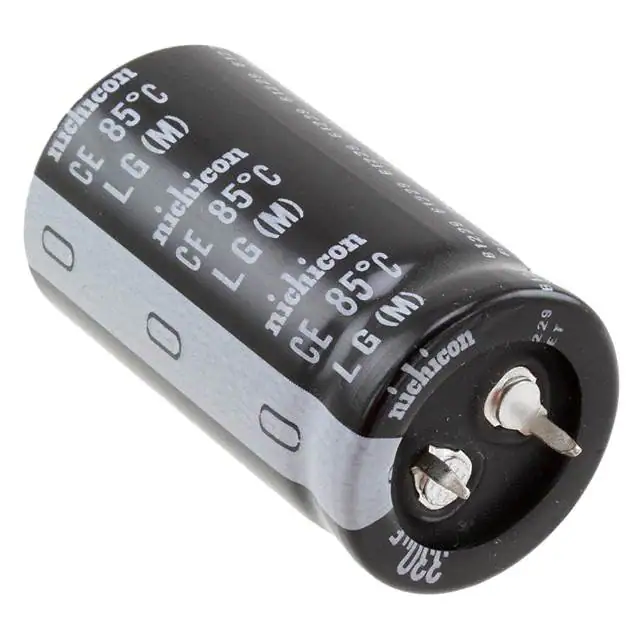

LLG2W331MELA45CAP ALUM 330UF 20% 450V SNAP TH |
1,007 |
|
Datasheet |
LLG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.7885 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELHS501VSN331MR50SCAP ALUM 330UF 20% 500V SNAP TH |
251 |
|
Datasheet |
LHS | Bulk | Active | 330 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.3738 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
381LX472M080A042CAP ALUM 4700UF 20% 80V SNAP TH |
2,324 |
|
Datasheet |
381LX | Bulk | Active | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

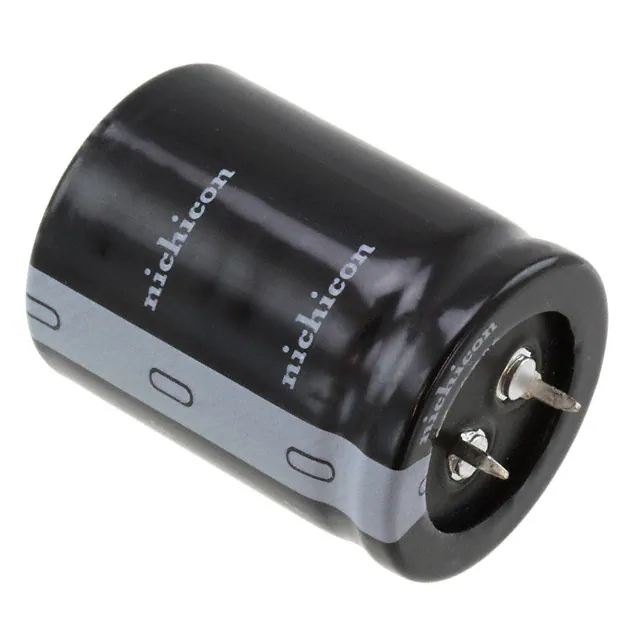

LKX2D102MESB40CAP ALUM 1000UF 20% 200V SNAP TH |
145 |
|
Datasheet |
LKX | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGW2G391MELC35CAP ALUM 390UF 20% 400V SNAP TH |
179 |
|
Datasheet |
LGW | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 3.6036 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGG2G391MELA45CAP ALUM 390UF 20% 400V SNAP TH |
134 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL205657222E3CAP ALUM 2200UF 20% 40V SNAP TH |
580 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 2200 µF | ±20% | 40 V | 92mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.85 A @ 100 Hz | - | 61 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGG2G391MELC30CAP ALUM 390UF 20% 400V SNAP TH |
525 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
50USC22000MEFCSN35X50CAP ALUM 22000UF 20% 50V SNAP TH |
197 |
|
Datasheet |
USC | Bulk | Not For New Designs | 22000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400MXK390MEFCSN25X40CAP ALUM 390UF 20% 400V SNAP TH |
149 |
|
Datasheet |
MXK | Tray | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.59 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LQ681M450A052CAP ALUM 680UF 20% 450V SNAP TH |
785 |
|
Datasheet |
380LQ | Bulk | Active | 680 µF | ±20% | 450 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.25 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
