Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41505A6688M000CAP ALUM 6800UF 20% 50V SNAP TH |
293 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 6800 µF | ±20% | 50 V | 33mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | - | 35 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAR2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
200 |
|
Datasheet |
LAR | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.4145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLS2V681MELCCAP ALUM 680UF 20% 350V SNAP TH |
145 |
|
Datasheet |
LLS | Bulk | Active | 680 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 4.5045 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
TVA1346-E3CAP ALUM 100UF 100V AXIAL TH |
347 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 100 µF | - | 100 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
LGX2W221MELA40CAP ALUM 220UF 20% 450V SNAP TH |
807 |
|
Datasheet |
LGX | Bulk | Active | 220 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.4729 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALP22A472DD100CAP ALUM 4700UF 20% 100V SLD LUG |
750 |
|
Datasheet |
ALP22 | Box | Active | 4700 µF | ±20% | 100 V | - | - | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
B43508C9227M000CAP ALUM 220UF 20% 400V SNAP TH |
798 |
|
Datasheet |
B43508 | Bulk | Active | 220 µF | ±20% | 400 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 100 Hz | - | 790 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.071" (27.20mm) | - | Through Hole | |
|
LGG2C222MELB45CAP ALUM 2200UF 20% 160V SNAP TH |
116 |
|
Datasheet |
LGG | Bulk | Active | 2200 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

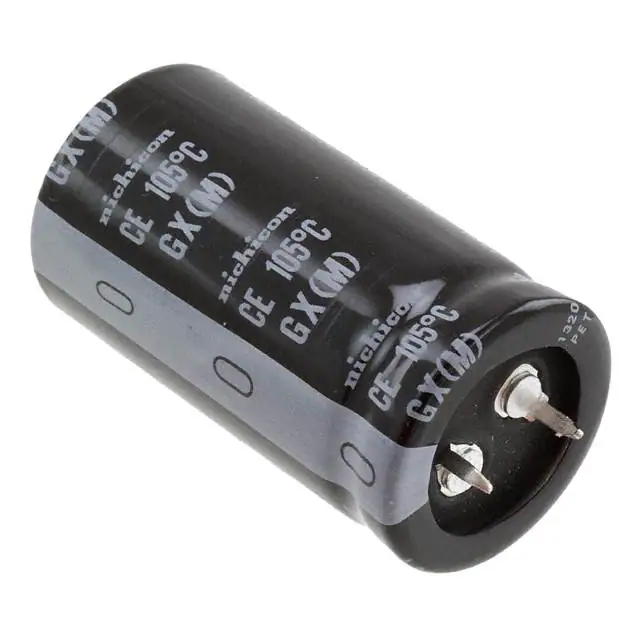

LGX2G331MELA45CAP ALUM 330UF 20% 400V SNAP TH |
225 |
|
Datasheet |
LGX | Bulk | Active | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ681M350K452CAP ALUM 680UF 20% 350V SNAP TH |
920 |
|
Datasheet |
380LQ | Bulk | Active | 680 µF | ±20% | 350 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.14 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2E102MELB40CAP ALUM 1000UF 20% 250V SNAP TH |
498 |
|
Datasheet |
LGG | Bulk | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2W271MELBCAP ALUM 270UF 20% 450V SNAP TH |
198 |
|
Datasheet |
LGU | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.8304 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
400MXK330MEFCSN22X45CAP ALUM 330UF 20% 400V SNAP TH |
150 |
|
Datasheet |
MXK | Tray | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.478 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL213814103E3CAP ALUM 10000UF 20% 10V AXIAL |
2,421 |
|
Datasheet |
138 AML | Bulk | Active | 10000 µF | ±20% | 10 V | 70mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.98 A @ 100 Hz | 2.376 A @ 10 kHz | 62 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
LGU2D152MELCCAP ALUM 1500UF 20% 200V SNAP TH |
1,375 |
|
Datasheet |
LGU | Bulk | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 4.62 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGN2E102MELC35CAP ALUM 1000UF 20% 250V SNAP TH |
116 |
|
Datasheet |
LGN | Bulk | Active | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU1J822MELCCAP ALUM 8200UF 20% 63V SNAP TH |
145 |
|
Datasheet |
LGU | Bulk | Active | 8200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.16 A @ 120 Hz | 4.784 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

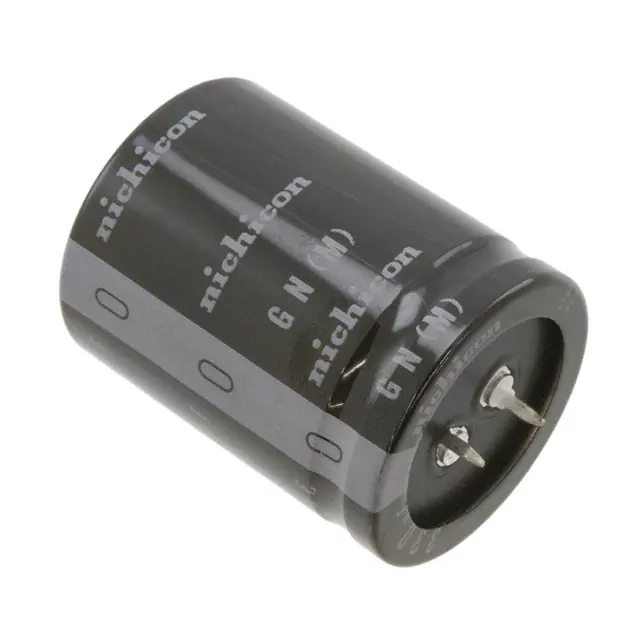

LGN2E152MELC45CAP ALUM 1500UF 20% 250V SNAP TH |
184 |
|
Datasheet |
LGN | Bulk | Active | 1500 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGGW6331MELA45CAP ALUM 330UF 20% 420V SNAP TH |
248 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43548B5337M080CAP ALUM 330UF 20% 450V SNAP TH |
2,050 |
|
Datasheet |
B43548 | Bulk | Active | 330 µF | ±20% | 450 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 100 Hz | - | 360 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.465" (37.20mm) | - | Through Hole |
