Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43457A9338M000CAP ALUM 3300UF 20% 400V SCREW |
40 |
|
Datasheet |
B43457 | Bulk | Not For New Designs | 3300 µF | ±20% | 400 V | 36mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 43 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis, Stud Mount | |
|
CGS252T250V5LCAP ALUM 2500UF 250V SCREW CHAS |
4 |
|
Datasheet |
CGS | Bulk | Active | 2500 µF | -10%, +50% | 250 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | 11.7 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
ALS70A752NP450CAP ALUM 7500UF 20% 450V SCREW |
73 |
|
Datasheet |
ALS70 | Bulk | Active | 7500 µF | ±20% | 450 V | 31mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 25.3 A @ 10 kHz | 21 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
MLP562M035EK1ACAP ALUM 5600UF 20% 35V FLATPACK |
9 |
|
Datasheet |
MLP | Bulk | Active | 5600 µF | ±20% | 35 V | 90mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 4.4 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
DCMX453U075CC2BCAP ALUM 45000UF 75V SCREW CHAS |
33 |
|
Datasheet |
DCMX | Bulk | Active | 45000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
B43310A9478M000CAP ALUM 4700UF 20% 400V SCREW |
46 |
|
Datasheet |
B43310 | Bulk | Not For New Designs | 4700 µF | ±20% | 400 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.528" (115.00mm) | - | Chassis Mount | |
|

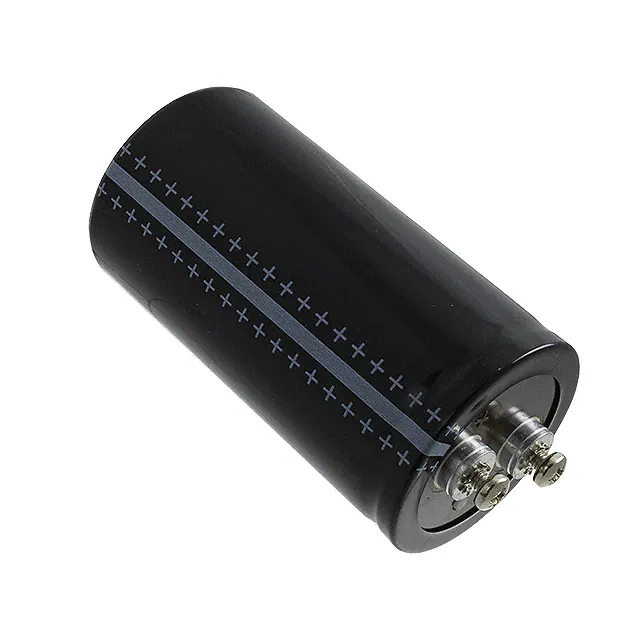

B41456B8100M000CAP ALUM 100000UF 20% 63V SCREW |
69 |
|
Datasheet |
B41456 | Bulk | Active | 100000 µF | ±20% | 63 V | 4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
MAL220217222E3CAP ALUM 2200UF 20% 450V SCREW |
112 |
|
Datasheet |
202 PML-ST | Box | Active | 2200 µF | ±20% | 450 V | 55mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 100 Hz | 15.45 A @ 10 kHz | 38 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.165" (105.80mm) | - | Clamp Mount | |
|
CGH102T450V3LCAP ALUM 1000UF 450V SCREW CHAS |
33 |
|
Datasheet |
CGH | Bulk | Active | 1000 µF | -10%, +50% | 450 V | 83.4mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 5.904 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
CGS872U150X5RCAP ALUM 8700UF 150V SCREW CHAS |
12 |
|
Datasheet |
CGS | Bulk | Active | 8700 µF | -10%, +75% | 150 V | 27mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.5 A @ 120 Hz | 16.25 A @ 10 kHz | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.875" (149.23mm) | - | Chassis Mount | |
|
B43762B9478M000CAP ALUM 4700UF 20% 400V SCREW |
88 |
|
Datasheet |
B43762 | Bulk | Active | 4700 µF | ±20% | 400 V | 24mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 13.1 A @ 100 Hz | - | 36 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.161" (105.70mm) | - | Chassis Mount | |
|
B43713A2478M000CAP ALUM 4700UF 20% 200V SCREW |
445 |
|
Datasheet |
B43713 | Bulk | Active | 4700 µF | ±20% | 200 V | 36mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.9 A @ 100 Hz | - | 60 mOhms | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
LNU2G562MSEGCAP ALUM 5600UF 20% 400V SCREW |
26 |
|
Datasheet |
LNU | Bulk | Active | 5600 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.7 A @ 120 Hz | 24.78 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.433" (138.00mm) | - | Chassis Mount | |
|
CGS422T250W5LCAP ALUM 4200UF 250V SCREW CHAS |
109 |
|
Datasheet |
CGS | Bulk | Active | 4200 µF | -10%, +50% | 250 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 17.85 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|

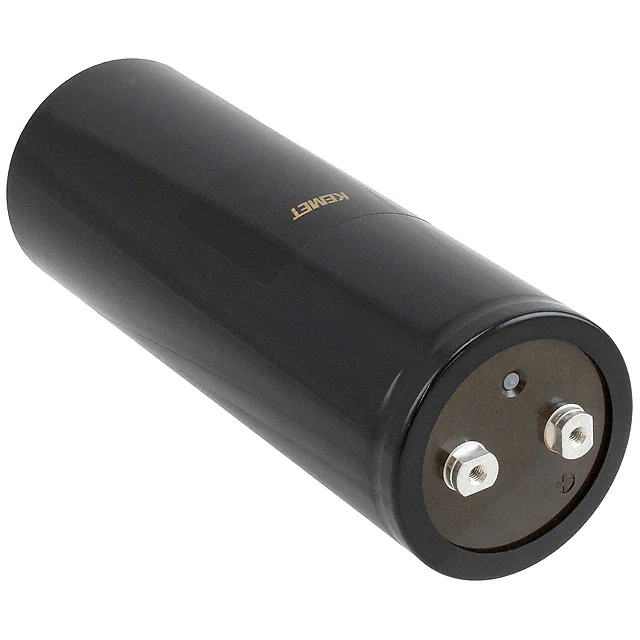

ALS30A682NT500CAP ALUM 6800UF 20% 500V SCREW |
3 |
|
Datasheet |
ALS30 | Bulk | Active | 6800 µF | ±20% | 500 V | 34mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
DCMX632T450DG2BCAP ALUM 6300UF 450V SCREW CHAS |
28 |
|
Datasheet |
DCMX | Bulk | Active | 6300 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
MLP113M050EB0DCAP ALUM 11000UF 20% 50V FLATPAC |
8 |
|
Datasheet |
MLP | Bulk | Active | 11000 µF | ±20% | 50 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 120 Hz | 9.6 A @ 20 kHz | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
B43713A2159M000CAP ALUM 15000UF 20% 200V SCREW |
37 |
|
Datasheet |
B43713 | Bulk | Active | 15000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.8 A @ 100 Hz | - | 19 mOhms | 1.248" (31.70mm) | 3.027" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
MLS561M250EB1ACAP ALUM 560UF 20% 250V FLATPACK |
38 |
|
Datasheet |
MLS | Bulk | Active | 560 µF | ±20% | 250 V | 240mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | 8.1 A @ 20 kHz | - | 1.000" (25.40mm) | 3.000" L x 1.750" W (76.20mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
MAL210425472E3CAP ALUM 4700UF 20% 350V SCREW |
60 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 350 V | 30mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.7 A @ 100 Hz | - | 19 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
