Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSU18935ACAP ALUM 189UF 250V QC CHAS MT |
51 |
|
Datasheet |
PSU | Bulk | Active | 189 µF | 0%, +20% | 250 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063" Dia (52.40mm) | 4.375" (111.13mm) | - | Chassis Mount | |
|
LNY2V562MSEGCAP ALUM 5600UF 20% 350V SCREW |
26 |
|
Datasheet |
LNY | Bulk | Active | 5600 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.94 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
MAL210265222E3CAP ALUM 2200UF 20% 350V SCREW |
82 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 2200 µF | ±20% | 350 V | 72mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 13.95 A @ 10 kHz | 52 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
MAL250117182E3CAP ALUM 1800UF 20% 450V SCREW |
195 |
|
Datasheet |
501 PGM-ST | Box | Active | 1800 µF | ±20% | 450 V | 94mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.36 A @ 100 Hz | 11.04 A @ 10 kHz | 68 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.165" (105.80mm) | - | Chassis Mount | |
|
CGS153U075V5LCAP ALUM 15000UF 75V SCREW CHAS |
34 |
|
Datasheet |
CGS | Bulk | Active | 15000 µF | -10%, +75% | 75 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 15.47 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
B43310A9228M000CAP ALUM 2200UF 20% 400V SCREW |
44 |
|
Datasheet |
B43310 | Bulk | Not For New Designs | 2200 µF | ±20% | 400 V | 87mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | - | - | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
ALS70A164NP063CAP ALUM 160000UF 20% 63V SCREW |
126 |
|
Datasheet |
ALS70 | Bulk | Active | 160000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.6 A @ 100 Hz | 32.2 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
MAL210437152E3CAP ALUM 1500UF 20% 450V SCREW |
46 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 1500 µF | ±20% | 450 V | 77mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 10.95 A @ 10 kHz | 44 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.339" (110.20mm) | - | Chassis Mount | |
|
PEH200XO4220MU2CAP ALUM 2200UF 20% 385V SCREW |
107 |
|
Datasheet |
PEH200 | Box | Active | 2200 µF | ±20% | 385 V | 38mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | 26.1 A @ 10 kHz | - | 1.260" (32.00mm) | 2.622" Dia (66.60mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
ALS80A113NF250CAP ALUM 11000UF 20% 250V SCREW |
95 |
|
Datasheet |
ALS80 | Bulk | Active | 11000 µF | ±20% | 250 V | 27mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | 19.9 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

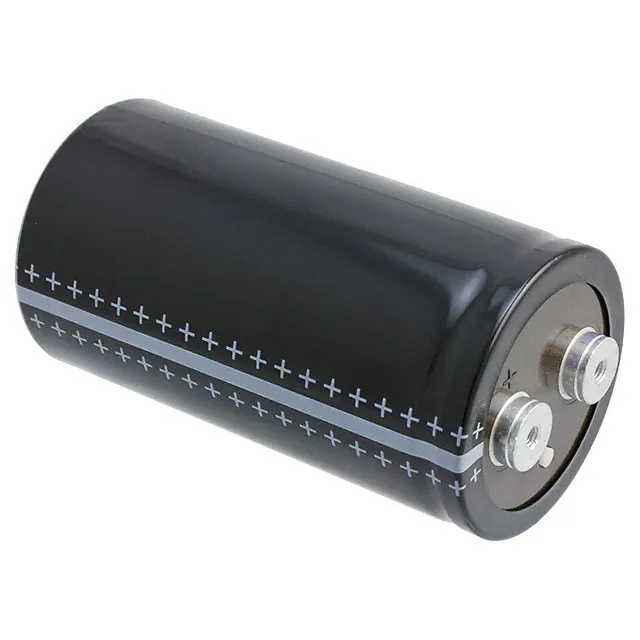

B41456B4470M000CAP ALUM 470000UF 20% 16V SCREW |
29 |
|
Datasheet |
B41456 | Bulk | Active | 470000 µF | ±20% | 16 V | 6.1mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 4.9 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
CGS553U030W4CCAP ALUM 55000UF 30V SCREW CHAS |
30 |
|
Datasheet |
CGS | Bulk | Active | 55000 µF | -10%, +75% | 30 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 21.19 A @ 10 kHz | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
LNU2G272MSEGCAP ALUM 2700UF 20% 400V SCREW |
48 |
|
Datasheet |
LNU | Bulk | Active | 2700 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
B43703A9568M000CAP ALUM 5600UF 20% 400V SCREW |
28 |
|
Datasheet |
B43703 | Bulk | Active | 5600 µF | ±20% | 400 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | - | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
B43770A9857M000CAP ALUM 850UF 20% 400V SCREW CH |
48 |
|
Datasheet |
B43770 | Bulk | Not For New Designs | 850 µF | ±20% | 400 V | 70mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 110 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 3.201" (81.30mm) | - | Chassis Mount | |
|
MAL210619153E3CAP ALUM 15000UF 100V SCREW CHAS |
101 |
|
Datasheet |
106 PED-ST | Bulk | Active | 15000 µF | -10%, +30% | 100 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | - | 6 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
MAL250117472E3CAP ALUM 4700UF 20% 450V SCREW |
52 |
|
Datasheet |
501 PGM-ST | Box | Active | 4700 µF | ±20% | 450 V | 40mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 21.9 A @ 10 kHz | 29 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | - | - | Chassis Mount | |
|
|
CGS222T350W5LCAP ALUM 2200UF 350V SCREW CHAS |
25 |
|
Datasheet |
CGS | Bulk | Active | 2200 µF | -10%, +50% | 350 V | 63mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 10.8 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
MAL210618333E3CAP ALUM 33000UF 63V SCREW CHAS |
167 |
|
Datasheet |
106 PED-ST | Bulk | Active | 33000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | - | 8 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
MAL220217182E3CAP ALUM 1800UF 20% 450V SCREW |
142 |
|
Datasheet |
202 PML-ST | Box | Active | 1800 µF | ±20% | 450 V | 67mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.17 A @ 100 Hz | 12.255 A @ 10 kHz | 46 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.165" (105.80mm) | - | Clamp Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
