Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860020381030CAP ALUM 12000UF 20% 16V RADIAL |
168 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 12000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 2.752 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
450LXW68MEFR10X60CAP ALUM 68UF 20% 450V RADIAL TH |
492 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.386 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
420LXW82MEFR14.5X30CAP ALUM 82UF 20% 420V RADIAL TH |
478 |
|
Datasheet |
LXW | Bulk | Active | 82 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.386 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX822M035E3P3CAP ALUM 8200UF 20% 35V SNAP TH |
3,159 |
|
Datasheet |
SLPX | Bulk | Active | 8200 µF | ±20% | 35 V | 65mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.29 A @ 120 Hz | 4.11 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
UPH2W680MHDCAP ALUM 68UF 20% 450V RADIAL TH |
418 |
|
Datasheet |
UPH | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL216051681E3CAP ALUM 680UF 20% 50V RADIAL TH |
339 |
|
Datasheet |
160 RLA | Bulk | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 350 mA @ 100 Hz | - | 69 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL214660332E3CAP ALUM 3300UF 20% 35V RADIAL |
479 |
|
Datasheet |
146 RTI | Bulk | Active | 3300 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.015 A @ 100 Hz | - | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMH350VSN103MR35UCAP ALUM 10000UF 20% 35V SNAP TH |
279 |
|
Datasheet |
KMH | Bulk | Active | 10000 µF | ±20% | 35 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.132 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

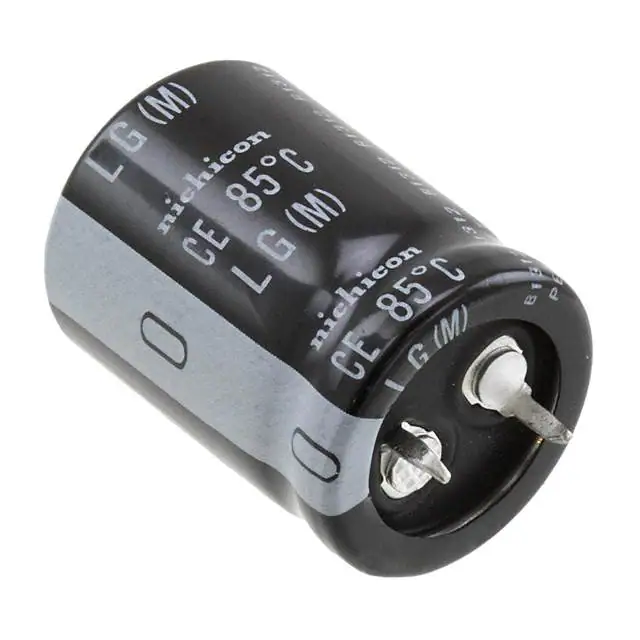

LLG2D561MELZ30CAP ALUM 560UF 20% 200V SNAP TH |
238 |
|
Datasheet |
LLG | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 3.105 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
420LXW100MEFR14.5X35CAP ALUM 100UF 20% 420V RADIAL |
495 |
|
Datasheet |
LXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.44 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420LXW100MEFR12.5X45CAP ALUM 100UF 20% 420V RADIAL |
450 |
|
Datasheet |
LXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.46 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
500LXW47MEFR14.5X35CAP ALUM 47UF 20% 500V RADIAL TH |
388 |
|
Datasheet |
LXW | Bulk | Active | 47 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EMVH350GRA331MLH0SCAP ALUM 330UF 20% 35V SMD |
545 |
|
Datasheet |
Alchip™- MVH | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | 100mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
860010281031CAP ALUM 18000UF 20% 10V RADIAL |
113 |
|
Datasheet |
WCAP-ATG8 | Tray | Active | 18000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 4.3648 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.693" (43.00mm) | - | Through Hole | |
|
LGG2C821MELZ35CAP ALUM 820UF 20% 160V SNAP TH |
744 |
|
Datasheet |
LGG | Bulk | Active | 820 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

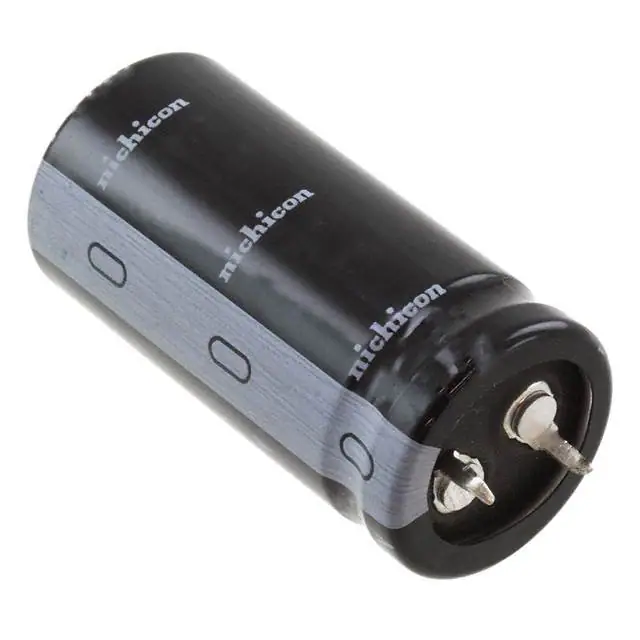

LLS2W181MELZCAP ALUM 180UF 20% 450V SNAP TH |
220 |
|
Datasheet |
LLS | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.8876 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL225038681E3CAP ALUM 680UF 20% 63V RADIAL TH |
180 |
|
Datasheet |
250 RMI-V | Box | Active | 680 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 836 mA @ 100 Hz | 1.1 A @ 100 kHz | 74 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EMVH500GTR471MMH0SCAP ALUM 470UF 20% 50V SMD |
300 |
|
Datasheet |
Alchip™- MVH | Tray | Active | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | - | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UCYW6121MHDCAP ALUM 120UF 20% 420V RADIAL |
188 |
|
Datasheet |
UCY | Bulk | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 930 mA @ 120 Hz | 1.86 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
ESMQ451VSN181MQ30SCAP ALUM 180UF 20% 450V SNAP TH |
185 |
|
Datasheet |
SMQ | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.931 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole |
