Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCX1H821MNS1MSCAP ALUM 820UF 20% 50V SMD |
235 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 820 µF | ±20% | 50 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
MAL213699476E3CAP ALUM 470UF 20% 100V RADIAL |
500 |
|
Datasheet |
136 RVI | Bulk | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | 45 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
400LXW82MEFR10X60CAP ALUM 82UF 20% 400V RADIAL TH |
498 |
|
Datasheet |
LXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.628 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
MAL225621272E3CAP ALUM 2700UF 20% 50V SNAP TH |
330 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 2700 µF | ±20% | 50 V | 172mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.836 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCZ1E332MNJ1MSCAP ALUM 3300UF 20% 25V SMD |
243 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 1.625 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
LLS2W121MELYCAP ALUM 120UF 20% 450V SNAP TH |
198 |
|
Datasheet |
LLS | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGN2Z561MELA25CAP ALUM 560UF 20% 180V SNAP TH |
246 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UKL1C332KHDCAP ALUM 3300UF 10% 16V RADIAL |
139 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 3300 µF | ±10% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.7825 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420CXW120MEFR14.5X45CAP ALUM 120UF 20% 420V RADIAL |
780 |
|
Datasheet |
CXW | Bulk | Active | 120 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.125 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
860040780017CAP ALUM 1000UF 20% 63V RADIAL |
345 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 1000 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.875 A @ 120 Hz | 2.5 A @ 100 kHz | 48 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420HXW100MEFR16X30CAP ALUM 100UF 20% 420V RADIAL |
130 |
|
Datasheet |
HXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.125 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2W121MELZ35CAP ALUM 120UF 20% 450V SNAP TH |
234 |
|
Datasheet |
LGN | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LGN2G181MELZ35CAP ALUM 180UF 20% 400V SNAP TH |
196 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

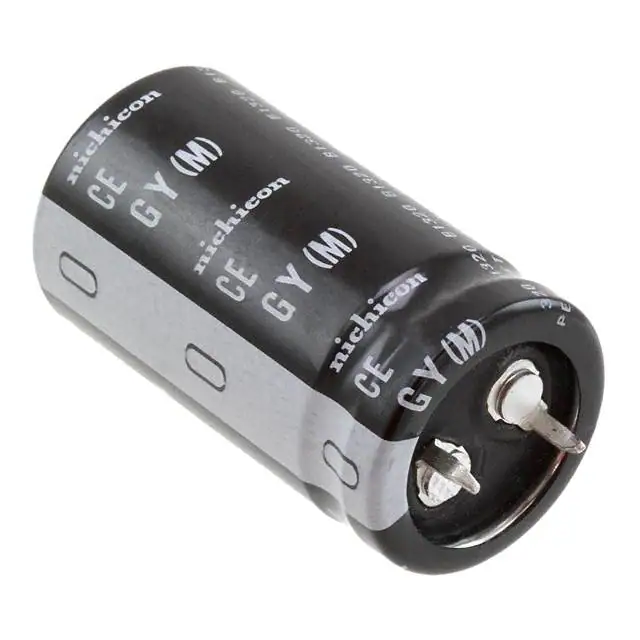

LGY1J272MELZ40CAP ALUM 2700UF 20% 63V SNAP TH |
147 |
|
Datasheet |
LGY | Bulk | Active | 2700 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP561M200A4P3CAP ALUM 560UF 20% 200V SNAP TH |
2,836 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 560 µF | ±20% | 200 V | 355mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

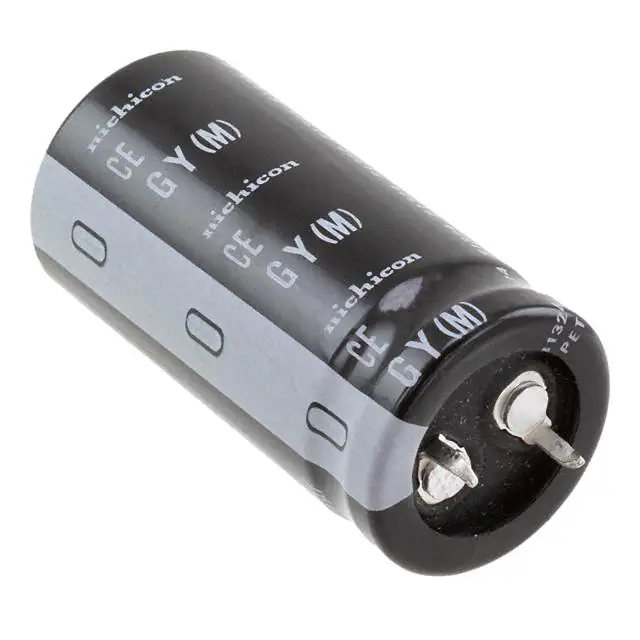

LGY2A152MELZ45CAP ALUM 1500UF 20% 100V SNAP TH |
234 |
|
Datasheet |
LGY | Bulk | Active | 1500 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
860160581040CAP ALUM 2700UF 20% 35V RADIAL |
196 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 2700 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.336 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EEU-HD1A153CAP ALUM 15000UF 20% 10V RADIAL |
127 |
|
Datasheet |
HD | Bulk | Active | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
450HXG68MEFCSN20X25CAP ALUM 68UF 20% 450V SNAP TH |
338 |
|
Datasheet |
HXG | Bulk | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPT2W680MHD6CAP ALUM 68UF 20% 450V RADIAL TH |
298 |
|
Datasheet |
UPT | Bulk | Active | 68 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 480 mA @ 120 Hz | 768 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole |
