Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420LXW68MEFR12.5X35CAP ALUM 68UF 20% 420V RADIAL TH |
468 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX182M063H022CAP ALUM 1800UF 20% 63V SNAP TH |
3,050 |
|
Datasheet |
381LX | Bulk | Active | 1800 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.96 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
80USC2200MEFCSN22X35CAP ALUM 2200UF 20% 80V SNAP TH |
581 |
|
Datasheet |
USC | Bulk | Not For New Designs | 2200 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 2.9095 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
860160680035CAP ALUM 1200UF 20% 50V RADIAL |
236 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 1200 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.952 A @ 100 kHz | 45 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
220VXH270MEFCSN22X25CAP ALUM 270UF 20% 220V SNAP TH |
188 |
|
Datasheet |
VXH | Bulk | Active | 270 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.995 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
420LXW82MEFR12.5X40CAP ALUM 82UF 20% 420V RADIAL TH |
488 |
|
Datasheet |
LXW | Bulk | Active | 82 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.43 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
860040581020CAP ALUM 2700UF 20% 35V RADIAL |
199 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 2700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.157 A @ 120 Hz | 3.85 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

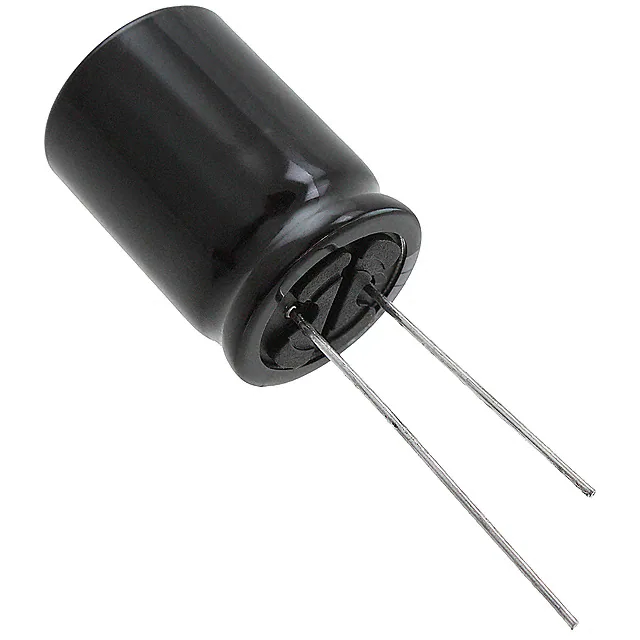

EEU-TP1E332SCAP ALUM 3300UF 20% 25V RADIAL |
680 |
|
Datasheet |
TP-A | Bulk | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LQS2G101MELZ25CAP ALUM 100UF 20% 400V SNAP TH |
242 |
|
Datasheet |
LQS | Bulk | Active | 100 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 972.4 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400HXW100MEFR12.5X45CAP ALUM 100UF 20% 400V RADIAL |
692 |
|
Datasheet |
HXW | Bulk | Active | 100 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400HXW120MEFR14.5X40CAP ALUM 120UF 20% 400V RADIAL |
498 |
|
Datasheet |
HXW | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.395 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43231F2337M000CAP ALUM 330UF 20% 250V SNAP TH |
357 |
|
Datasheet |
B43231 | Bulk | Not For New Designs | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.418 A @ 20 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UVZ1A153MHDCAP ALUM 15000UF 20% 10V RADIAL |
242 |
|
Datasheet |
UVZ | Bulk | Active | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2E331MELA25CAP ALUM 330UF 20% 250V SNAP TH |
1,467 |
|
Datasheet |
LGN | Bulk | Active | 330 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
450HXW82MEFR12.5X45CAP ALUM 82UF 20% 450V RADIAL TH |
297 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.496 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
100YXG820MEFC18X40CAP ALUM 820UF 20% 100V RADIAL |
190 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 820 µF | ±20% | 100 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.398 A @ 120 Hz | 2.33 A @ 100 kHz | 36 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EPAG451ELL101MM35SCAP ALUM 100UF 20% 450V RADIAL |
273 |
|
Datasheet |
PAG | Bulk | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS2A152MELZCAP ALUM 1500UF 20% 100V SNAP TH |
250 |
|
Datasheet |
LLS | Bulk | Active | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 2.8175 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGUW6101MELYCAP ALUM 100UF 20% 420V SNAP TH |
247 |
|
Datasheet |
LGU | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.001 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
400TXW100MEFR16X35CAP ALUM 100UF 20% 400V RADIAL |
744 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.11 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole |
