Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450HXG82MEFCSN22X25CAP ALUM 82UF 20% 450V SNAP TH |
142 |
|
Datasheet |
HXG | Bulk | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420LXW82MEFR10X60CAP ALUM 82UF 20% 420V RADIAL TH |
364 |
|
Datasheet |
LXW | Bulk | Active | 82 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.496 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
LQS2G121MELZ30CAP ALUM 120UF 20% 400V SNAP TH |
251 |
|
Datasheet |
LQS | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.0439 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGNW6181MELA30CAP ALUM 180UF 20% 420V SNAP TH |
238 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204861222E3CAP ALUM 2200UF 20% 50V RADIAL |
940 |
|
Datasheet |
048 RML | Cut Tape (CT) | Active | 2200 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 50 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EMVH350GTR681MMH0SCAP ALUM 680UF 20% 35V SMD |
300 |
|
Datasheet |
Alchip™- MVH | Tray | Active | 680 µF | ±20% | 35 V | 100mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 1.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
LGN2D681MELB25CAP ALUM 680UF 20% 200V SNAP TH |
284 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.625 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400LXW100MEFR16X30CAP ALUM 100UF 20% 400V RADIAL |
154 |
|
Datasheet |
LXW | Bulk | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.54 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL213669221E3CAP ALUM 220UF 20% 100V RADIAL |
131 |
|
Datasheet |
136 RVI | Bulk | Active | 220 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 81 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

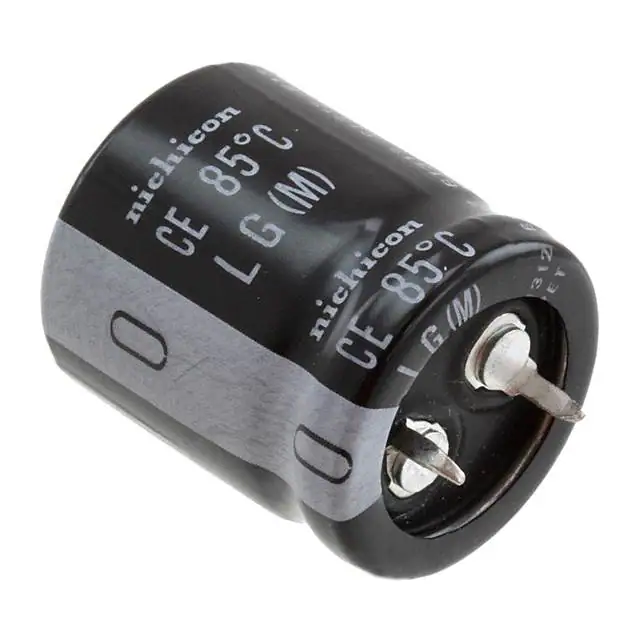

LLG2G151MELZ25CAP ALUM 150UF 20% 400V SNAP TH |
148 |
|
Datasheet |
LLG | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.4729 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL226055332E3CAP ALUM 3300UF 20% 16V RADIAL |
565 |
|
Datasheet |
260 RLA-V | Box | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.4 A @ 100 Hz | 2 A @ 100 kHz | 23 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UPZ2G151MHD6CAP ALUM 150UF 20% 400V RADIAL |
247 |
|
Datasheet |
UPZ | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 770 mA @ 120 Hz | 1.155 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
450USG100MEFCSN22X25CAP ALUM 100UF 20% 450V SNAP TH |
175 |
|
Datasheet |
USG | Bulk | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.302 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
380LX562M050K022CAP ALUM 5600UF 20% 50V SNAP TH |
1,244 |
|
Datasheet |
380LX | Bulk | Active | 5600 µF | ±20% | 50 V | 60mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 3.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43547E2277M000CAP ALUM 270UF 20% 250V SNAP TH |
516 |
|
Datasheet |
B43547 | Bulk | Active | 270 µF | ±20% | 250 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 100 Hz | - | 350 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EGXF251ELL131MU40SCAP ALUM 130UF 20% 250V RADIAL |
490 |
|
Datasheet |
GXF | Bulk | Active | 130 µF | ±20% | 250 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 787.5 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
400HXW150MEFR16X40CAP ALUM 150UF 20% 400V RADIAL |
113 |
|
Datasheet |
HXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.605 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215757689E3CAP ALUM 68UF 20% 450V SNAP TH |
702 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 68 µF | ±20% | 450 V | 2.8Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 800 mA @ 120 Hz | - | 1.53 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
100ZLJ560M18X31.5CAP ALUM 560UF 20% 100V RADIAL |
190 |
|
Datasheet |
ZLJ | Bulk | Active | 560 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.573 A @ 120 Hz | 2.86 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
450HXW100MEFR14.5X40CAP ALUM 100UF 20% 450V RADIAL |
490 |
|
Datasheet |
HXW | Bulk | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
