Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500HXW56MEFR16X35CAP ALUM 56UF 20% 500V RADIAL TH |
346 |
|
Datasheet |
HXW | Bulk | Active | 56 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 620 mA @ 120 Hz | 930 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-TP1V242MCAP ALUM 2400UF 20% 35V SMD |
257 |
|
Datasheet |
TP | Tape & Reel (TR) | Active | 2400 µF | ±20% | 35 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EKMQ630ELL222MMP1SCAP ALUM 2200UF 20% 63V RADIAL |
190 |
|
Datasheet |
KMQ | Bulk | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.782 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

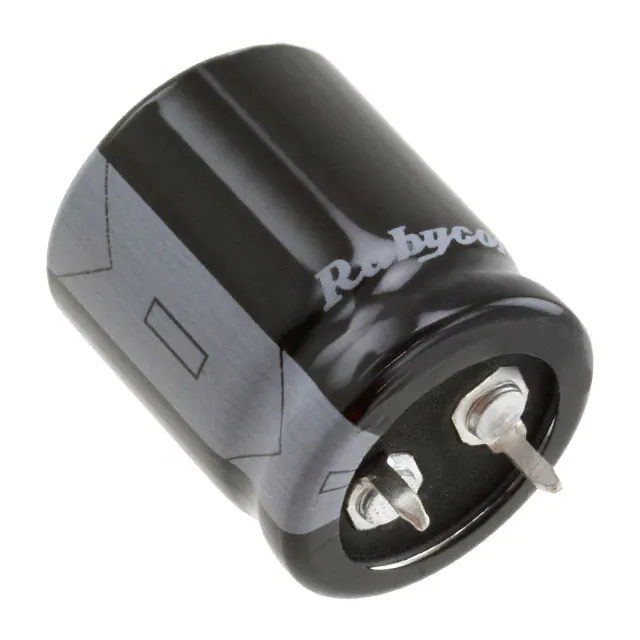

450MXH100MEFCSN22X25CAP ALUM 100UF 20% 450V SNAP TH |
178 |
|
Datasheet |
MXH | Bulk | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL202129331E3CAP ALUM 330UF 20% 100V AXIAL TH |
729 |
|
Datasheet |
021 ASM | Tape & Reel (TR) | Active | 330 µF | ±20% | 100 V | 420mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 740 mA @ 100 Hz | - | 400 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
EEE-FK1A912SVCAP ALUM 9100UF 20% 10V SMD |
218 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Active | 9100 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.98 A @ 120 Hz | 2.64 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EKMQ500EC3222MLN3SCAP ALUM 2200UF 20% 50V RADIAL |
450 |
|
Datasheet |
KMQ | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.5228 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
.JPG)
|
6.3TRV8200M18X21.5CAP ALUM 8200UF 20% 6.3V SMD |
284 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 8200 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | 39 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EKMH630VSN332MR30SCAP ALUM 3300UF 20% 63V SNAP TH |
203 |
|
Datasheet |
KMH | Bulk | Active | 3300 µF | ±20% | 63 V | 75mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 2.688 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
860021381019CAP ALUM 82UF 20% 400V RADIAL TH |
183 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 82 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 719.1 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
400USG120MEFCSN22X25CAP ALUM 120UF 20% 400V SNAP TH |
118 |
|
Datasheet |
USG | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

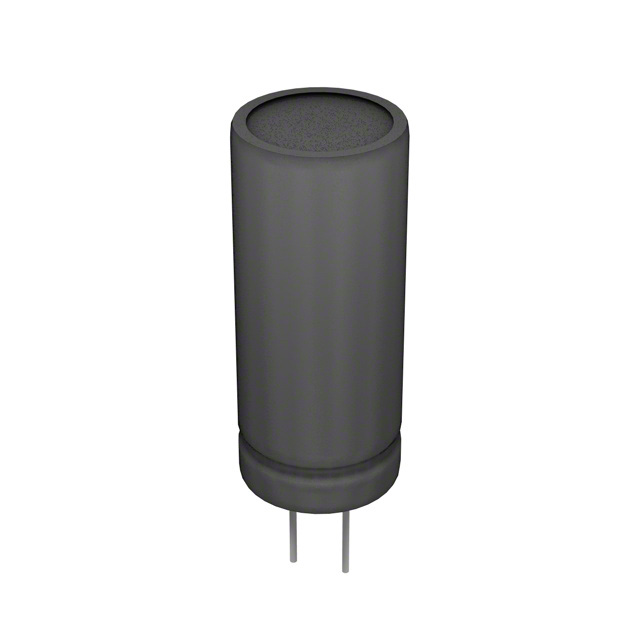

SEK472M035STCAP ALUM 4700UF 20% 35V RADIAL |
2,015 |
|
Datasheet |
SEK | Bulk | Active | 4700 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2G121MELZ30CAP ALUM 120UF 20% 400V SNAP TH |
230 |
|
Datasheet |
LGN | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.0439 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UKL1V222MHDCAP ALUM 2200UF 20% 35V RADIAL |
219 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 1.817 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
25MXG10000MEFCSN22X35CAP ALUM 10000UF 20% 25V SNAP TH |
197 |
|
Datasheet |
MXG | Bulk | Active | 10000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.0475 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
500HXW56MEFR14.5X35CAP ALUM 56UF 20% 500V RADIAL TH |
416 |
|
Datasheet |
HXW | Bulk | Active | 56 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAR2D471MELZ30CAP ALUM 470UF 20% 200V SNAP TH |
248 |
|
Datasheet |
LAR | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.22 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
338LBA050M2CCCAP ALUM 3300UF 20% 50V SNAP TH |
232 |
|
Datasheet |
LBA | Bulk | Active | 3300 µF | ±20% | 50 V | 175.83mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.9375 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
420HXW100MEFR14.5X35CAP ALUM 100UF 20% 420V RADIAL |
289 |
|
Datasheet |
HXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400LXW100MEFR14.5X35CAP ALUM 100UF 20% 400V RADIAL |
451 |
|
Datasheet |
LXW | Bulk | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.56 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
