Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420HXW100MEFR12.5X45CAP ALUM 100UF 20% 420V RADIAL |
489 |
|
Datasheet |
HXW | Bulk | Active | 100 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EEU-TP1V152SCAP ALUM 1500UF 20% 35V RADIAL |
184 |
|
Datasheet |
TP-A | Bulk | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-TP1E272SBCAP ALUM 2700UF 20% 25V RADIAL |
169 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450CXW120MEFR14.5X50CAP ALUM 120UF 20% 450V RADIAL |
121 |
|
Datasheet |
CXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 10 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL214099013E3CAP ALUM 470UF 20% 35V SMD |
1,480 |
|
Datasheet |
140 CRH | Tape & Reel (TR) | Active | 470 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | 900 mA @ 100 kHz | 90 mOhms | - | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|
381LX153M016K022CAP ALUM 15000UF 20% 16V SNAP TH |
1,098 |
|
Datasheet |
381LX | Bulk | Active | 15000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43630A5107M000CAP ALUM 100UF 20% 450V SNAP TH |
643 |
|
Datasheet |
B43630 | Bulk | Active | 100 µF | ±20% | 450 V | 1.1Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 850 mA @ 100 Hz | - | 1.7 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
450LXW68MEFR14.5X30CAP ALUM 68UF 20% 450V RADIAL TH |
931 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 1.276 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL224655682E3CAP ALUM 6800UF 20% 16V RADIAL |
490 |
|
Datasheet |
246 RTI-V | Box | Active | 6800 µF | ±20% | 16 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 3.1 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGU1H392MELACAP ALUM 3900UF 20% 50V SNAP TH |
102 |
|
Datasheet |
LGU | Bulk | Active | 3900 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 2.622 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EMVH500GRA221MLH0SCAP ALUM 220UF 20% 50V SMD |
267 |
|
Datasheet |
Alchip™- MVH | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | 150mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EMVE451GTR220MMN0SCAP ALUM 22UF 20% 450V SMD |
240 |
|
Datasheet |
Alchip™- MVE | Tray | Not For New Designs | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | - | - | - | 0.709" Dia (18.00mm) | 0.906" (23.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
B43630A9127M000CAP ALUM 120UF 20% 400V SNAP TH |
433 |
|
Datasheet |
B43630 | Bulk | Active | 120 µF | ±20% | 400 V | 850mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 100 Hz | - | 1.3 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-TP1V162BCAP ALUM 1600UF 20% 35V RADIAL |
889 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 1600 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-TP1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
425 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

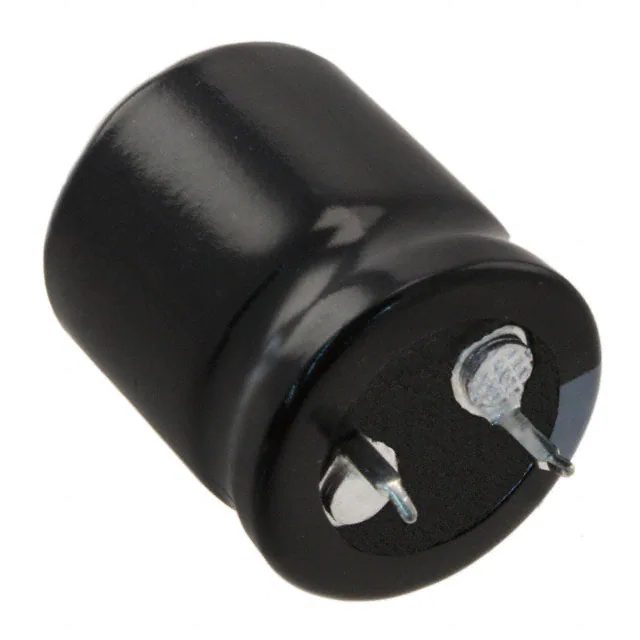

ELH476M450AQ1AACAP ALUM 47UF 20% 450V SNAP TH |
1,444 |
|
Datasheet |
ELH | Bulk | Active | 47 µF | ±20% | 450 V | 1.46Ohm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 725 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMG500EC3332MMP1SCAP ALUM 3300UF 20% 50V RADIAL |
494 |
|
Datasheet |
KMG | Cut Tape (CT) | Active | 3300 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 1.9116 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2D561MELY40CAP ALUM 560UF 20% 200V SNAP TH |
248 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX471M250E1P3CAP ALUM 470UF 20% 250V SNAP TH |
3,194 |
|
Datasheet |
SLPX | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LGG2W121MELZ30CAP ALUM 120UF 20% 450V SNAP TH |
240 |
|
Datasheet |
LGG | Bulk | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 986.7 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
