Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCQ1A331MCL1GSCAP ALUM 330UF 20% 10V SMD |
465 |
|
Datasheet |
UCQ | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 250 mA @ 120 Hz | 375 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVY1C332MHD1TOCAP ALUM 3300UF 20% 16V RADIAL |
292 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.3455 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCA2D680MHD6TNCAP ALUM 68UF 20% 200V RADIAL TH |
188 |
|
Datasheet |
UCA | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 485 mA @ 120 Hz | 970 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
6.3TPV2200M10X10.5CAP ALUM 2200UF 20% 6.3V SMD |
1,608 |
|
Datasheet |
TPV | Tape & Reel (TR) | Active | 2200 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 714 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
157CKH100MCAP ALUM 150UF 20% 100V RADIAL |
1,214 |
|
Datasheet |
CKH | Bulk | Active | 150 µF | ±20% | 100 V | 884mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEE-FPA221XAVCAP ALUM 220UF 20% 10V SMD |
840 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-FK1E182CAP ALUM 1800UF 20% 25V RADIAL |
1,993 |
|
Datasheet |
FK | Bulk | Active | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.824 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHW1K181MPDCAP ALUM 180UF 20% 80V RADIAL TH |
1,374 |
|
Datasheet |
UHW | Bulk | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 572 mA @ 120 Hz | 1.43 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPM1A182MHD1TOCAP ALUM 1800UF 20% 10V RADIAL |
1,171 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.32 A @ 120 Hz | 1.47 A @ 10 kHz | 39 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FK1V122CAP ALUM 1200UF 20% 35V RADIAL |
897 |
|
Datasheet |
FK | Bulk | Active | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.824 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UUG1A222MNQ1MSCAP ALUM 2200UF 20% 10V SMD |
559 |
|
Datasheet |
UUG | Tape & Reel (TR) | Not For New Designs | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.104 A @ 10 kHz | - | - | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
EKY-6R3ELL562MK35SCAP ALUM 5600UF 20% 6.3V RADIAL |
500 |
|
Datasheet |
KY | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.448 A @ 120 Hz | 2.88 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|

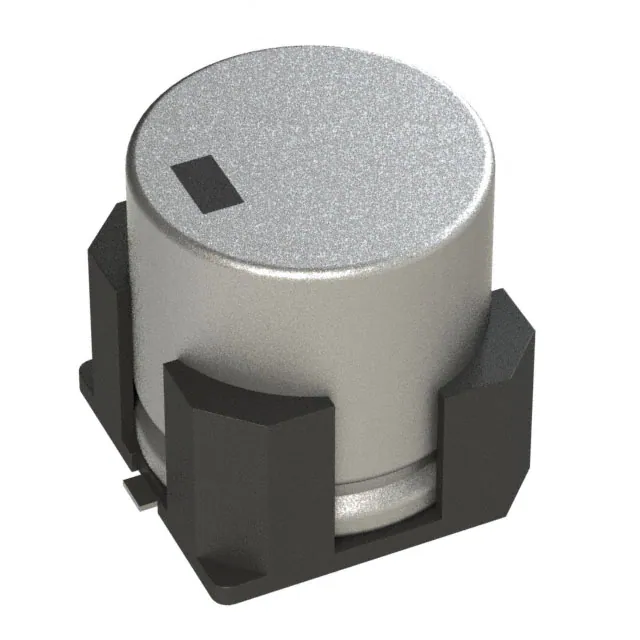

EEE-FK1A102AVCAP ALUM 1000UF 20% 10V SMD |
383 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UHW1K181MPD1TDCAP ALUM 180UF 20% 80V RADIAL TH |
229 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 572 mA @ 120 Hz | 1.43 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860080778021CAP ALUM 330UF 20% 63V RADIAL TH |
213 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.87 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EMHJ160ARA221MHA0GCAP ALUM 220UF 20% 16V SMD |
2,234 |
|
Datasheet |
Alchip™- MHJ | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 150mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPM1K181MHD1TOCAP ALUM 180UF 20% 80V RADIAL TH |
1,380 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 180 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 735 mA @ 120 Hz | 1.04 A @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FM1E152BCAP ALUM 1500UF 20% 25V RADIAL |
981 |
|
Datasheet |
FM-A | Cut Tape (CT) | Active | 1500 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
10YXS8200MEFC18X25CAP ALUM 8200UF 20% 10V RADIAL |
458 |
|
Datasheet |
YXS | Bulk | Active | 8200 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.198 A @ 120 Hz | 3.14 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
10ZLJ5600M16X25CAP ALUM 5600UF 20% 10V RADIAL |
296 |
|
Datasheet |
ZLJ | Bulk | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.667 A @ 120 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole |
