Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFW1A682MHD1TNCAP ALUM 6800UF 20% 10V RADIAL |
225 |
|
Datasheet |
UFW | Cut Tape (CT) | Not For New Designs | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHE0J392MHD6CAP ALUM 3900UF 20% 6.3V RADIAL |
152 |
|
Datasheet |
UHE | Bulk | Active | 3900 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.768 A @ 120 Hz | 2.21 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
UVY1A332MHD1TOCAP ALUM 3300UF 20% 10V RADIAL |
394 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UBW1A102MPD1TDCAP ALUM 1000UF 20% 10V RADIAL |
259 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 737 mA @ 120 Hz | 1.1 A @ 100 kHz | 57 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL214699013E3CAP ALUM 33UF 20% 35V SMD |
1,575 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 422.5 mA @ 100 Hz | 650 mA @ 100 kHz | 300 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount | |
|
EEU-FS0J512CAP ALUM 5100UF 20% 6.3V RADIAL |
1,575 |
|
Datasheet |
FS-A | Bulk | Active | 5100 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

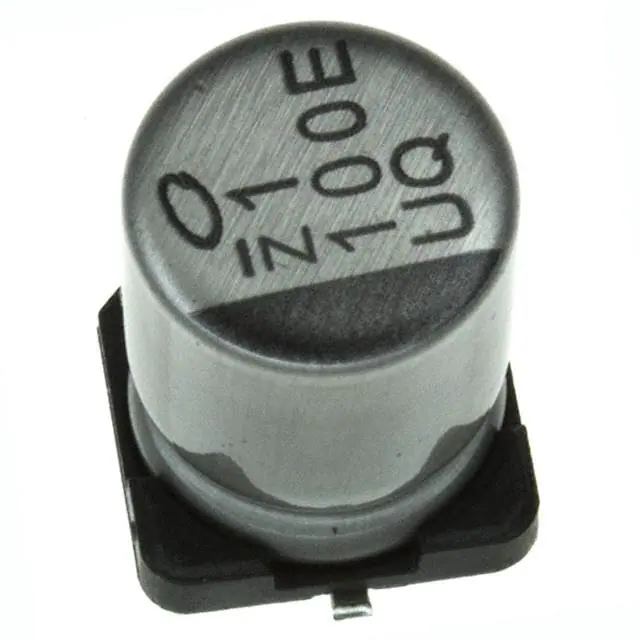

UUQ1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
990 |
|
Datasheet |
UUQ | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 140 mA @ 120 Hz | 210 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
100TXW68MEFC6.3X50CAP ALUM 68UF 20% 100V RADIAL TH |
968 |
|
Datasheet |
TXW | Bulk | Active | 68 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 775 mA @ 120 Hz | 1.55 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 1.969" (50.00mm) | - | Through Hole | |
|
UPM1A222MHD6CAP ALUM 2200UF 20% 10V RADIAL |
812 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.44 A @ 120 Hz | 1.6 A @ 10 kHz | 39 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
16ZLJ3900M12.5X35CAP ALUM 3900UF 20% 16V RADIAL |
568 |
|
Datasheet |
ZLJ | Bulk | Active | 3900 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.884 A @ 120 Hz | 4.12 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
860080778022CAP ALUM 390UF 20% 63V RADIAL TH |
144 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 390 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.92 A @ 100 kHz | 44 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL211651689E3CAP ALUM 68UF 20% 50V RADIAL TH |
2,367 |
|
Datasheet |
116 RLL | Cut Tape (CT) | Active | 68 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | 151.2 mA @ 100 Hz | - | 550 mOhms | 0.197" (5.00mm) | 0.323" Dia (8.20mm) | 0.472" (12.00mm) | - | Through Hole | |
|
ELXV160ETE222MK30SCAP ALUM 2200UF 20% 16V RADIAL |
1,489 |
|
Datasheet |
LXV | Cut Tape (CT) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.287 A @ 120 Hz | 1.98 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EKYA500ELL821MK25SCAP ALUM 820UF 20% 50V RADIAL TH |
975 |
|
Datasheet |
KYA | Bulk | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 34 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UVK1J102MHD1TNCAP ALUM 1000UF 20% 63V RADIAL |
774 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 1000 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
AVS107M35G24T-FCAP ALUM 100UF 20% 35V SMD |
485 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 35 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 357 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
UBW1H331MHD1TOCAP ALUM 330UF 20% 50V RADIAL TH |
455 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 665 mA @ 120 Hz | 1.33 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
687RZM035M1320CAP ALUM 680UF 20% 35V RADIAL TH |
440 |
|
Datasheet |
RZM | Bulk | Active | 680 µF | ±20% | 35 V | 341mOhm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 195 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UVZ0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
360 |
|
Datasheet |
UVZ | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
35TKV390M10X10.5CAP ALUM 390UF 20% 35V SMD |
236 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 390 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
