Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Series.jpg)
|
EEE-FK1V331GLCAP ALUM 330UF 20% 35V SMD |
9,998 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FK1A681AVCAP ALUM 680UF 20% 10V SMD |
1,485 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 420 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FK1H151GLCAP ALUM 150UF 20% 50V SMD |
1,423 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 180 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1C681GLCAP ALUM 680UF 20% 16V SMD |
1,370 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1E471GLCAP ALUM 470UF 20% 25V SMD |
947 |
|
Datasheet |
FK, Halogen Free | Tape & Reel (TR) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
10YXS3900MEFC12.5X25CAP ALUM 3900UF 20% 10V RADIAL |
888 |
|
Datasheet |
YXS | Bulk | Active | 3900 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.855 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-FK1A471AVCAP ALUM 470UF 20% 10V SMD |
700 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

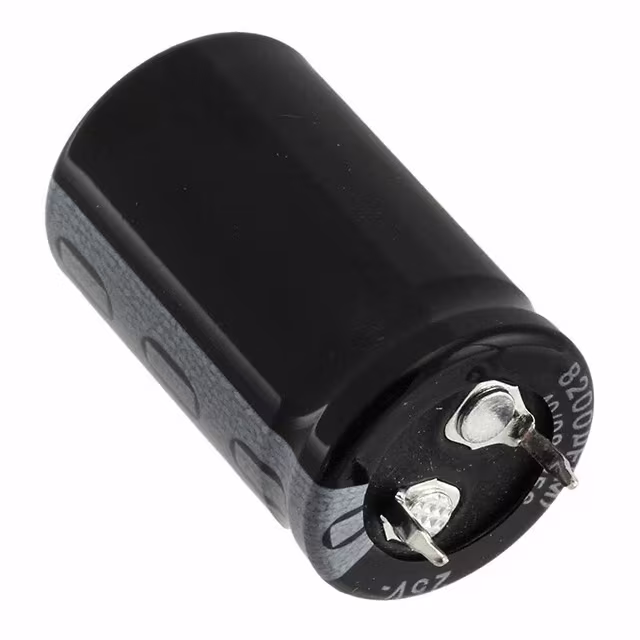

B41231A5828M000CAP ALUM 8200UF 20% 25V SNAP TH |
592 |
|
Datasheet |
B41231 | Bulk | Active | 8200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EEE-FK0J471AVCAP ALUM 470UF 20% 6.3V SMD |
490 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
860040278013CAP ALUM 2200UF 20% 10V RADIAL |
178 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 2200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.476 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
450HXW56MEFR14.5X25CAP ALUM 56UF 20% 450V RADIAL TH |
500 |
|
Datasheet |
HXW | Bulk | Active | 56 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 780 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FS1A362CAP ALUM 3600UF 20% 10V RADIAL |
1,884 |
|
Datasheet |
FS-A | Bulk | Active | 3600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
Series.jpg)
|
EEE-FK1V471SLCAP ALUM 470UF 20% 35V SMD |
1,777 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UVC2G120MPDCAP ALUM 12UF 20% 400V RADIAL TH |
1,728 |
|
Datasheet |
UVC | Bulk | Active | 12 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEE-FK1A122SLCAP ALUM 1200UF 20% 10V SMD |
1,480 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1K820SLCAP ALUM 82UF 20% 80V SMD |
850 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 82 µF | ±20% | 80 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1J121SLCAP ALUM 120UF 20% 63V SMD |
624 |
|
Datasheet |
FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 120 µF | ±20% | 63 V | 350mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPS2G100MHD1TOCAP ALUM 10UF 20% 400V RADIAL TH |
314 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 115.2 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM1C102MHD6TNCAP ALUM 1000UF 20% 16V RADIAL |
222 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.1 A @ 120 Hz | 1.27 A @ 10 kHz | 55 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
16ZLH1500MEFC12.5X16CAP ALUM 1500UF 20% 16V RADIAL |
1,059 |
|
Datasheet |
ZLH | Bulk | Active | 1500 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.689" (17.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
