Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FNA331XUVCAP ALUM 330UF 20% 10V SMD |
1,049 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-FK1A821SVCAP ALUM 820UF 20% 10V SMD |
965 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 820 µF | ±20% | 10 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FNJ471XUVCAP ALUM 470UF 20% 6.3V SMD |
956 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

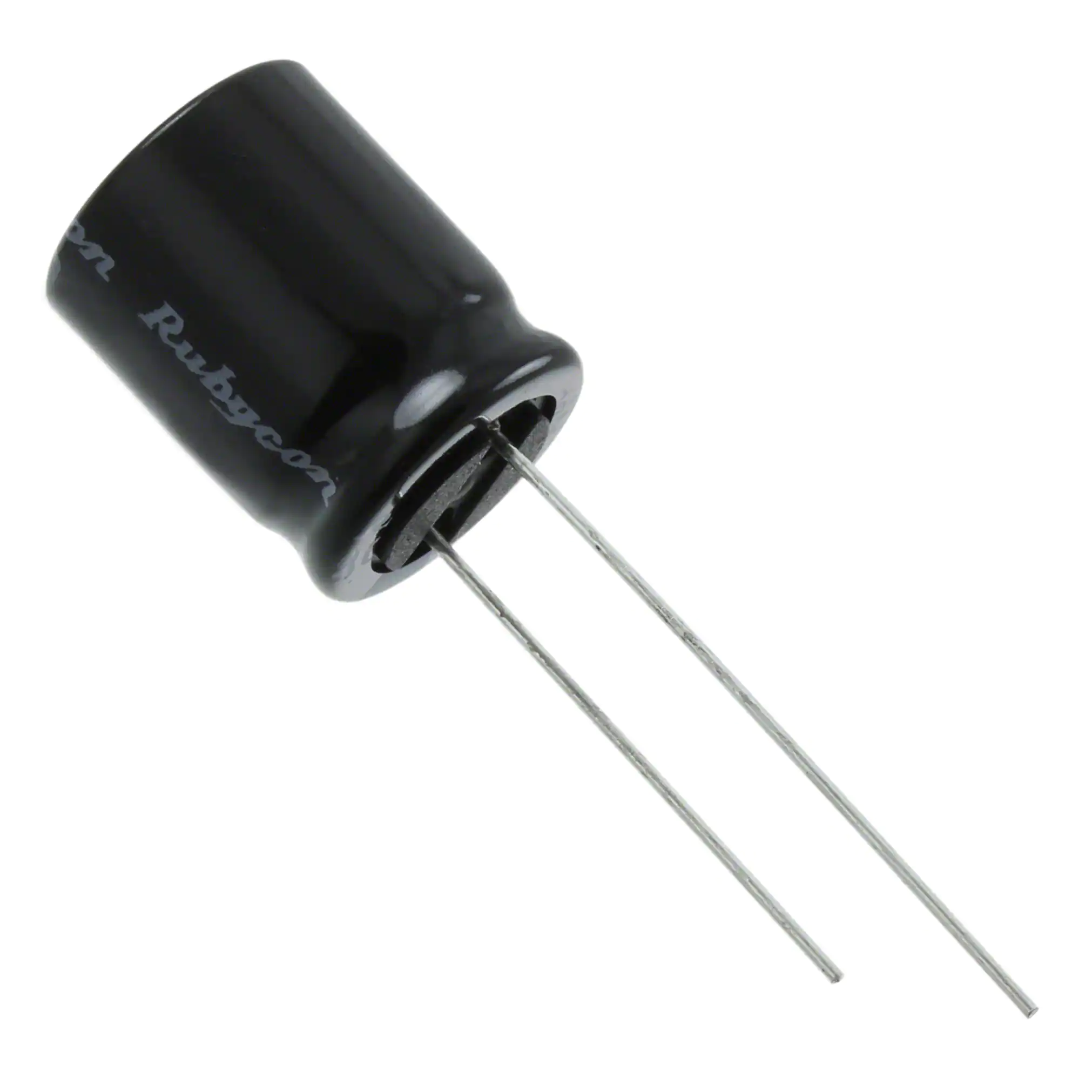

63ZLJ270M12.5X16CAP ALUM 270UF 20% 63V RADIAL TH |
694 |
|
Datasheet |
ZLJ | Bulk | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 785 mA @ 120 Hz | - | 72 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.689" (17.50mm) | - | Through Hole | |
|
URZ2E330MHDCAP ALUM 33UF 20% 250V RADIAL TH |
312 |
|
Datasheet |
URZ | Bulk | Active | 33 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 400 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UKL2A101MHDCAP ALUM 100UF 20% 100V RADIAL |
980 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 555 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEU-FM1E182SCAP ALUM 1800UF 20% 25V RADIAL |
390 |
|
Datasheet |
FM-A | Bulk | Active | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM2V100MHD1TOCAP ALUM 10UF 20% 350V RADIAL TH |
314 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 160 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL211838478E3CAP ALUM 4.7UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
118 AHT | Tape & Box (TB) | Active | 4.7 µF | ±20% | 63 V | 24Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 46.28 mA @ 10 kHz | 8.9 Ohms | - | 0.256" Dia x 0.709" L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
UCZ1H330MCS1GSCAP ALUM 33UF 20% 50V SMD |
1,723 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | 250mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
10YXS2700MEFC16X16CAP ALUM 2700UF 20% 10V RADIAL |
600 |
|
Datasheet |
YXS | Bulk | Active | 2700 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.358 A @ 120 Hz | 1.94 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
AVS107M50F24T-FCAP ALUM 100UF 20% 50V SMD |
480 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 200 mA @ 120 Hz | 340 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EMXB250ARA561MKE0SCAP ALUM 560UF 20% 25V SMD |
138 |
|
Datasheet |
AIchip™- MXB | Tape & Reel (TR) | Active | 560 µF | ±20% | 25 V | 140mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 430 mA @ 120 Hz | 860 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
AVS227M25F24T-FCAP ALUM 220UF 20% 25V SMD |
8,930 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 25 V | 1.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 140 mA @ 120 Hz | 238 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FPA122UALCAP ALUM 1200UF 20% 10V SMD |
2,161 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FKJ471XSVCAP ALUM 470UF 20% 6.3V SMD |
1,647 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FPC151XAVCAP ALUM 150UF 20% 16V SMD |
1,535 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FPJ182UALCAP ALUM 1800UF 20% 6.3V SMD |
1,365 |
|
Datasheet |
FP, Halogen Free | Tape & Reel (TR) | Active | 1800 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FPE101XAVCAP ALUM 100UF 20% 25V SMD |
715 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-FR1J271BCAP ALUM 270UF 20% 63V RADIAL TH |
490 |
|
Datasheet |
FR-A | Cut Tape (CT) | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.107 A @ 120 Hz | 1.582 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
