Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKZE630EC3221MJ25SCAP ALUM 220UF 20% 63V RADIAL TH |
3,000 |
|
Datasheet |
KZE | Tape & Reel (TR) | Active | 220 µF | ±20% | 63 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 1.35 A @ 100 kHz | 46 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKWA401ELL330MJ30SCAP ALUM 33UF 20% 400V RADIAL TH |
2,900 |
|
Datasheet |
KWA | Bulk | Active | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 576 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXZ100ELL182MJ30SCAP ALUM 1800UF 20% 10V RADIAL |
1,000 |
|
Datasheet |
LXZ | Bulk | Active | 1800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.014 A @ 120 Hz | 1.69 A @ 100 kHz | 37 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UBT2V100MPD8TDCAP ALUM 10UF 20% 350V RADIAL TH |
532 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 10 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 85 mA @ 120 Hz | 153 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM2W3R3MHD1TOCAP ALUM 3.3UF 20% 450V RADIAL |
470 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 48 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UBW1C471MPD1TDCAP ALUM 470UF 20% 16V RADIAL TH |
361 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 472.5 mA @ 120 Hz | 945 mA @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
860080478023CAP ALUM 1800UF 20% 25V RADIAL |
285 |
|
Datasheet |
WCAP-ATLI | Cut Tape (CT) | Active | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.15 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
ELXV500ETE331MK20SCAP ALUM 330UF 20% 50V RADIAL TH |
249 |
|
Datasheet |
LXV | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 1.19 A @ 100 kHz | 59 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEE-FKA221XAVCAP ALUM 220UF 20% 10V SMD |
1,700 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FKC221XAVCAP ALUM 220UF 20% 16V SMD |
1,695 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-FKJ331XAVCAP ALUM 330UF 20% 6.3V SMD |
1,665 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-FP1A681AVCAP ALUM 680UF 20% 10V SMD |
1,396 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FKC151XAVCAP ALUM 150UF 20% 16V SMD |
850 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UCZ1K100MCS1GSCAP ALUM 10UF 20% 80V SMD |
698 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 10 µF | ±20% | 80 V | 750mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | - | 750 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

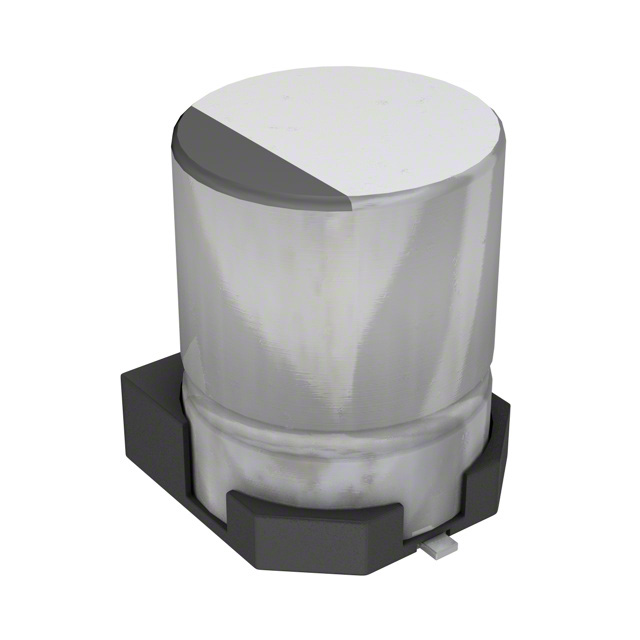

AVS107M35F24T-FCAP ALUM 100UF 20% 35V SMD |
485 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 35 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 140 mA @ 120 Hz | 238 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FP1A471AVCAP ALUM 470UF 20% 10V SMD |
473 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-TG1K220PCAP ALUM 22UF 20% 80V SMD |
427 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 22 µF | ±20% | 80 V | 1Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPM1V681MHD1TOCAP ALUM 680UF 20% 35V RADIAL TH |
330 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.41 A @ 120 Hz | 1.7 A @ 10 kHz | 36 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FK1V681LCAP ALUM 680UF 20% 35V RADIAL TH |
2,062 |
|
Datasheet |
FK | Bulk | Active | 680 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.26 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FK0J222LCAP ALUM 2200UF 20% 6.3V RADIAL |
1,819 |
|
Datasheet |
FK | Bulk | Active | 2200 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.344 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole |
