Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPA0J222MPD3TDCAP ALUM 2200UF 20% 6.3V RADIAL |
135 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 2200 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.428 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVK2W220MHD1TOCAP ALUM 22UF 20% 450V RADIAL TH |
781 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 224 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UUG1C102MNJ1MSCAP ALUM 1000UF 20% 16V SMD |
711 |
|
Datasheet |
UUG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | General Purpose | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | - | 0.492" Dia (12.50mm) | 0.571" (14.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
ECE-A1EN471UBCAP ALUM 470UF 20% 25V RADIAL TH |
613 |
|
Datasheet |
SU | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 430 mA @ 120 Hz | 731 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1H561MHDCAP ALUM 560UF 20% 50V RADIAL TH |
589 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 560 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.68 A @ 10 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EEE-FT1A102AVCAP ALUM 1000UF 20% 10V SMD |
490 |
|
Datasheet |
FT, Anti-Vibration | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVK1V222MHD1TNCAP ALUM 2200UF 20% 35V RADIAL |
425 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860010280026CAP ALUM 6800UF 20% 10V RADIAL |
137 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.475 A @ 120 Hz | 3.168 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UPW0J272MPDCAP ALUM 2700UF 20% 6.3V RADIAL |
123 |
|
Datasheet |
UPW | Bulk | Not For New Designs | 2700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.543 A @ 120 Hz | 1.815 A @ 10 kHz | 35 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
EEU-FS0J512BCAP ALUM 5100UF 20% 6.3V RADIAL |
1,944 |
|
Datasheet |
FS-A | Cut Tape (CT) | Active | 5100 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-FN1A152UVCAP ALUM 1500UF 20% 10V SMD |
1,439 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 1500 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EKYC350ELL132MK20SCAP ALUM 1300UF 20% 35V RADIAL |
900 |
|
Datasheet |
KYC | Bulk | Active | 1300 µF | ±20% | 35 V | 50mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|

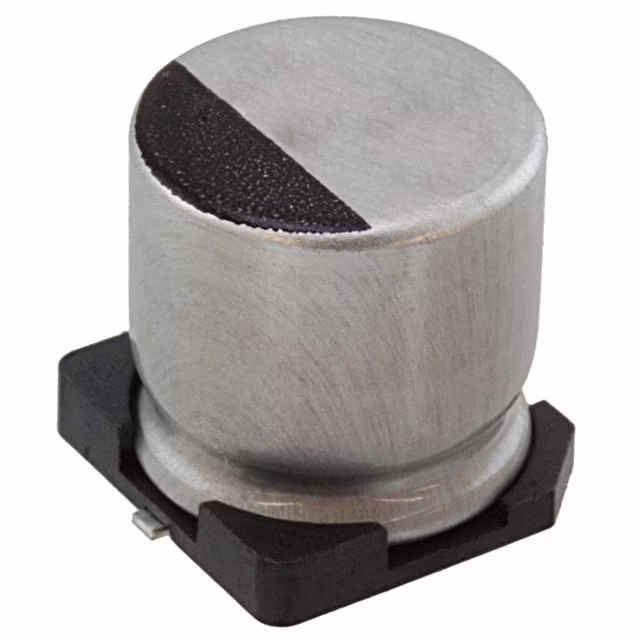

10TKV1000M10X10.5CAP ALUM 1000UF 20% 10V SMD |
842 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 714 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPS0J472MHD1TNCAP ALUM 4700UF 20% 6.3V RADIAL |
740 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.653 A @ 120 Hz | 1.9 A @ 100 kHz | 38 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEE-FN1A122UVCAP ALUM 1.2UF 20% 10V SMD |
497 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 1.2 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
10ZLJ2700M12.5X20CAP ALUM 2700UF 20% 10V RADIAL |
475 |
|
Datasheet |
ZLJ | Bulk | Active | 2700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.6 A @ 100 kHz | 25 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1C272MHDCAP ALUM 2700UF 20% 16V RADIAL |
260 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.22 A @ 10 kHz | 31 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKZN160ELL152MK16SCAP ALUM 1500UF 20% 16V RADIAL |
930 |
|
Datasheet |
KZN | Bulk | Active | 1500 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.4 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EEE-HD1C152AQCAP ALUM 1500UF 20% 16V SMD |
599 |
|
Datasheet |
HD | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 620 mA @ 120 Hz | 775 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
UPJ1V681MHD6TNCAP ALUM 680UF 20% 35V RADIAL TH |
499 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.54 A @ 10 kHz | 66 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
