Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-TC1V470XVCAP ALUM 47UF 20% 35V SMD |
210 |
|
Datasheet |
TC, Anti-Vibration | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | 450mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1E182MHD6TNCAP ALUM 1800UF 20% 25V RADIAL |
102 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 1.98 A @ 10 kHz | 41 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL211833102E3CAP ALUM 1000UF 20% 6.3V AXIAL |
500 |
|
Datasheet |
118 AHT | Tape & Box (TB) | Active | 1000 µF | ±20% | 6.3 V | 790mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 301.2 mA @ 10 kHz | 800 mOhms | - | 0.394" Dia x 0.709" L (10.00mm x 18.00mm) | - | - | Through Hole | |
|
ELXZ630EC3331MK20SCAP ALUM 330UF 20% 63V RADIAL TH |
1,500 |
|
Datasheet |
LXZ | Bulk | Active | 330 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 1.29 A @ 100 kHz | 85 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEU-TP1E471LCAP ALUM 470UF 20% 25V RADIAL TH |
952 |
|
Datasheet |
TP-A | Bulk | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 795 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
SEK330M100STCAP ALUM 33UF 20% 100V RADIAL TH |
865 |
|
Datasheet |
SEK | Bulk | Active | 33 µF | ±20% | 100 V | 4.02Ohm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UHE1A222MHD3CAP ALUM 2200UF 20% 10V RADIAL |
615 |
|
Datasheet |
UHE | Bulk | Active | 2200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.552 A @ 120 Hz | 1.94 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|

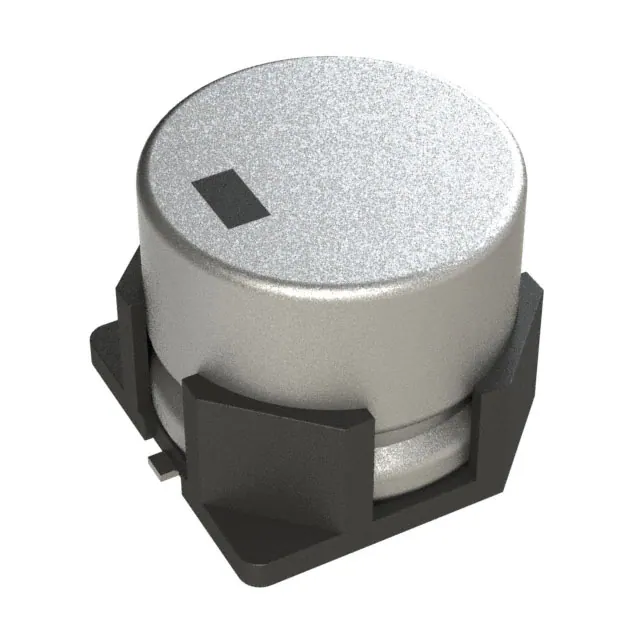

EEE-FP1C221AVCAP ALUM 220UF 20% 16V SMD |
612 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.268" (6.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-TA1V221CAP ALUM 220UF 20% 35V RADIAL TH |
600 |
|
Datasheet |
TA | Bulk | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 497.3 mA @ 120 Hz | 765 mA @ 100 kHz | 130 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEE-FP1E471AVCAP ALUM 470UF 20% 25V SMD |
470 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 773.5 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
SEK331M025STCAP ALUM 330UF 20% 25V RADIAL TH |
20,188 |
|
Datasheet |
SEK | Bulk | Active | 330 µF | ±20% | 25 V | 640mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-TC1E221UVCAP ALUM 220UF 20% 25V SMD |
1,320 |
|
Datasheet |
TCU, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FC1J391BCAP ALUM 390UF 20% 63V RADIAL TH |
954 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 390 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 1.72 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-FC1C222BCAP ALUM 2200UF 20% 16V RADIAL |
894 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.556 A @ 120 Hz | 1.945 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-HD1H471CAP ALUM 470UF 20% 50V RADIAL TH |
436 |
|
Datasheet |
HD | Bulk | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860020778022CAP ALUM 560UF 20% 63V RADIAL TH |
205 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 560 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.0626 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
B41866C7687M000CAP ALUM 680UF 20% 35V RADIAL TH |
1,829 |
|
Datasheet |
B41866 | Bulk | Active | 680 µF | ±20% | 35 V | 110mOhm @ 100kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.105 A @ 100 kHz | 104 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UKL1H471MHD1TNCAP ALUM 470UF 20% 50V RADIAL TH |
1,123 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBW1H331MHDCAP ALUM 330UF 20% 50V RADIAL TH |
973 |
|
Datasheet |
UBW | Bulk | Active | 330 µF | ±20% | 50 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | AEC-Q200 | Automotive | 665 mA @ 120 Hz | 1.33 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
100TXW56MEFC6.3X40CAP ALUM 56UF 20% 100V RADIAL TH |
925 |
|
Datasheet |
TXW | Bulk | Active | 56 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 635 mA @ 120 Hz | 1.27 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 1.575" (40.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
