Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

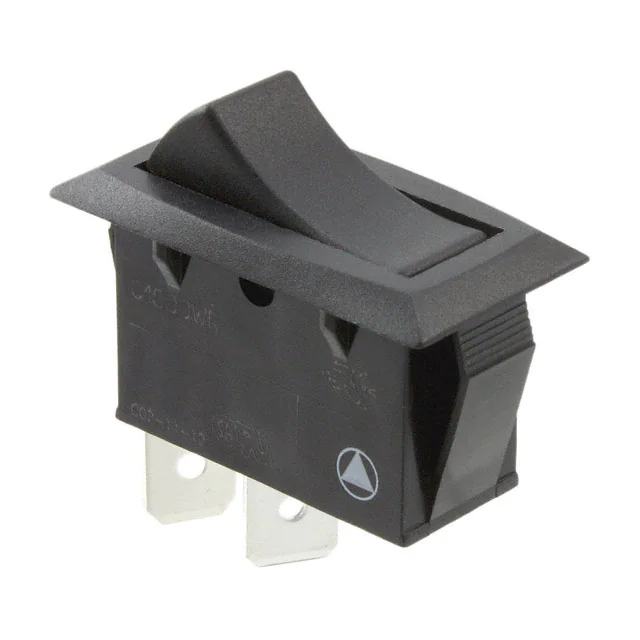

C1500WRBB-BSWITCH ROCKER SPST 16A 250V |
110 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
C1570SPALXDR1SWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
SRD2-1B-DC-1-BNNSWITCH ROCKER SPST-NO 21A 125V |
983 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-1B-DC-1-BNNSWITCH ROCKER SPST-NO 21A 125V |
914 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-1B-DC-1-RNNSWITCH ROCKER SPST-NO 21A 125V |
693 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-1B-DC-1-RNNSWITCH ROCKER SPST-NO 21A 125V |
482 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|

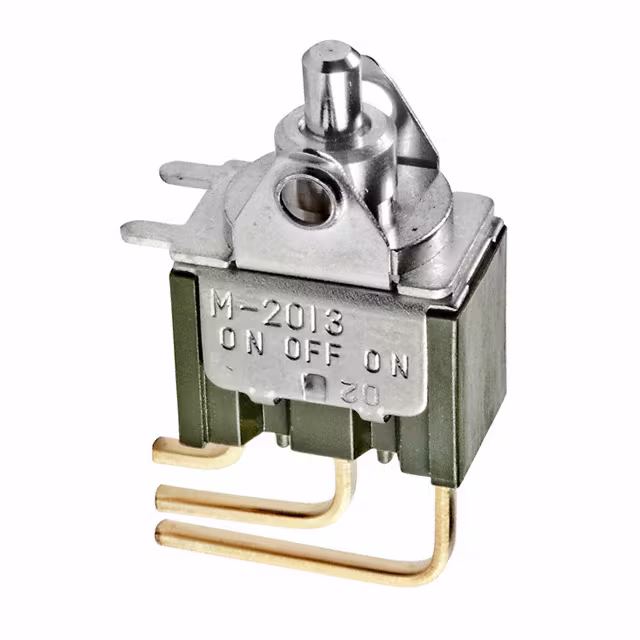

M2013TXG45SWITCH ROCKER SPDT 0.4VA 28V |
116 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
SRA1-2A-DC-1-NN-2SWITCH ROCKER DPST 10A 125V |
979 |
|
Datasheet |
SRA1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
|
A12K1HSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

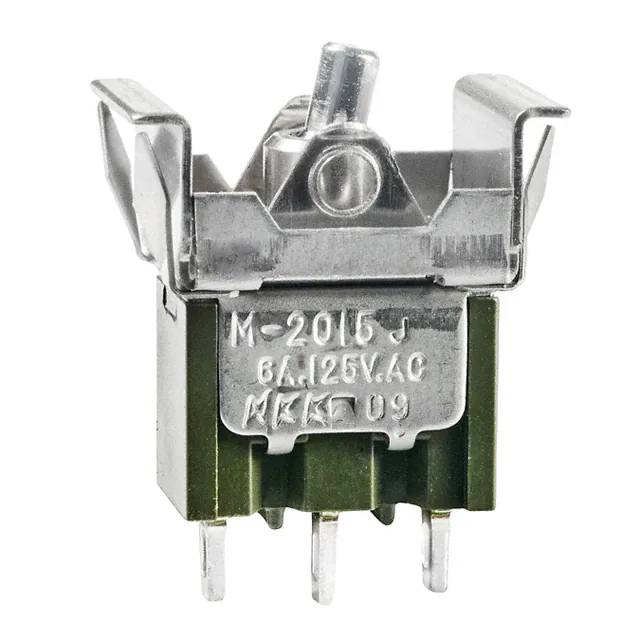

M2015TJW01SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
C6058ALBR21197WSWITCH ROCKER SPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
PRDDD3-16F-BB0GWSWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
PRD | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 25.40mm | -20°C ~ 85°C | UL |
|
SRB1-2G-DC-1-NNSWITCH ROCKER DPDT 10A 125V |
400 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
|
A12K1VSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
62112471-0-0-NSWITCH ROCKER DPDT 8A 125V |
313 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
M2012TXW30-DASWITCH ROCKER SPDT 6A 125V |
242 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
SRA1-1D-DC-1-NNSWITCH ROCKER SPDT 10A 125V |
999 |
|
Datasheet |
SRA1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
M2012TXW41-DASWITCH ROCKER SPDT 6A 125V |
2,223 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

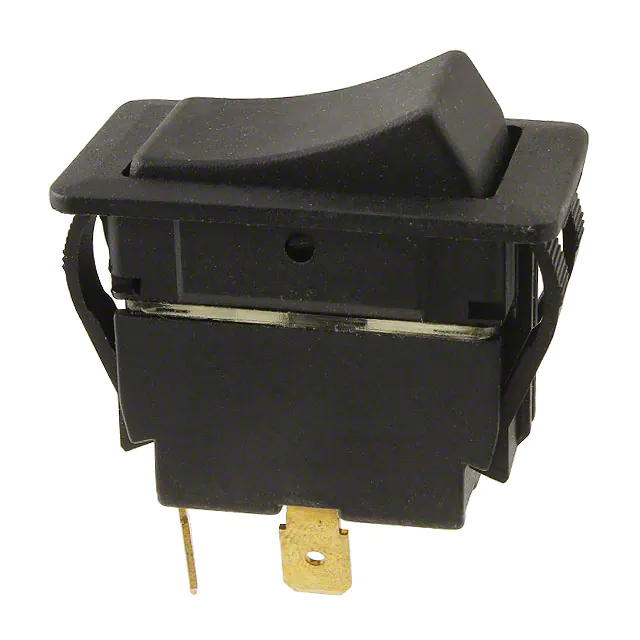

RVW44D1100SWITCH ROCKER SPST-NO 20A 125V |
150 |
|
Datasheet |
RVW, LAMB | Tray | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
M2T13TXG13SWITCH ROCKER SPDT 0.4VA 28V |
394 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
