Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB1-1A-DC-2-RSWITCH ROCKER SPST 10A 125V |
148 |
|
Datasheet |
RB1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RA1-1A-DC-2-ULSWITCH ROCKER SPST 20A 14V |
1,662 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Blue | No Marking | LED, Blue | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
RD1-1A-DC-1-BSWITCH ROCKER SPST 30A 12V |
413 |
|
Datasheet |
RD1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
C1560VQAAASWITCH ROCKER ON-ON |
2,770 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

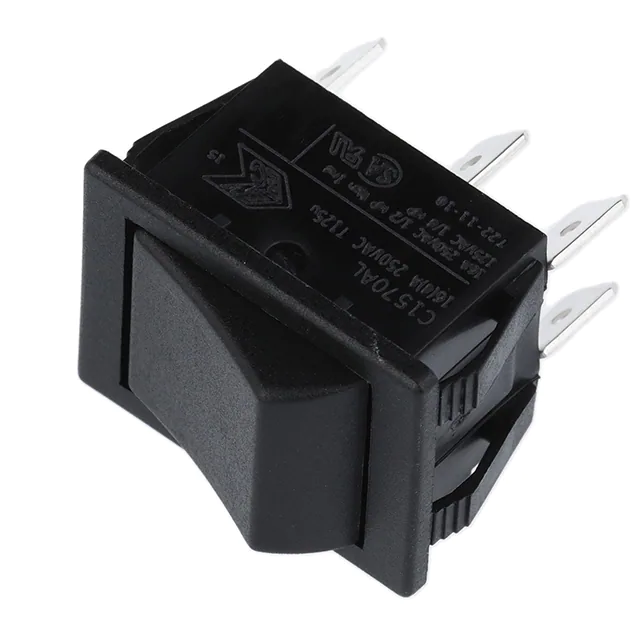

C1570ALAAASWITCH ROCKER ON-OFF-ON |
512 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C5503AABR3SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
T8600VBBBEN577WSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
PRBSD3-16F-BB000SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -20°C ~ 85°C | UL |
|
|
C1300AABB-1102WSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
RMD1R102M1QESSWITCH ROCKER DPDT 3A 120V |
416 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Process Sealed | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | - |
|
RB1-1D-DC-2-BSWITCH ROCKER SPDT 10A 125V |
726 |
|
Datasheet |
RB1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
|
R13244BBG2SWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|

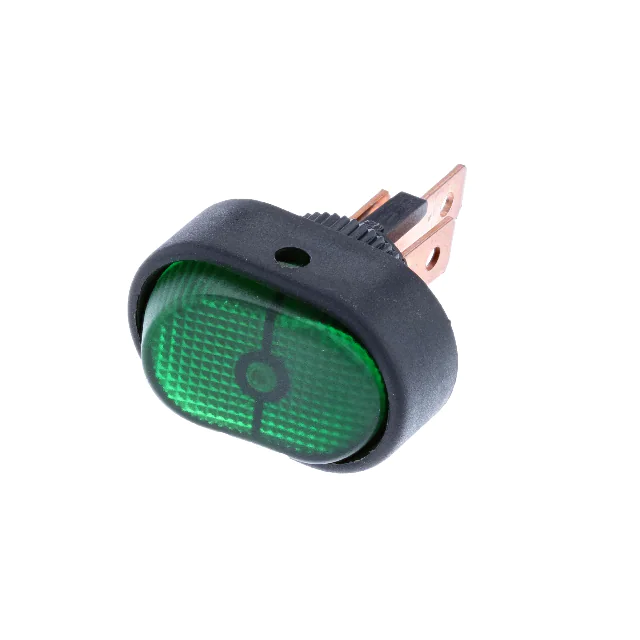

RD1-1A-DC-1-GLSWITCH ROCKER SPST 30A 12V |
2,206 |
|
Datasheet |
RD1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RB1-1F-DC-2-BSWITCH ROCKER SPDT 10A 125V |
887 |
|
Datasheet |
RB1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Off-On | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|

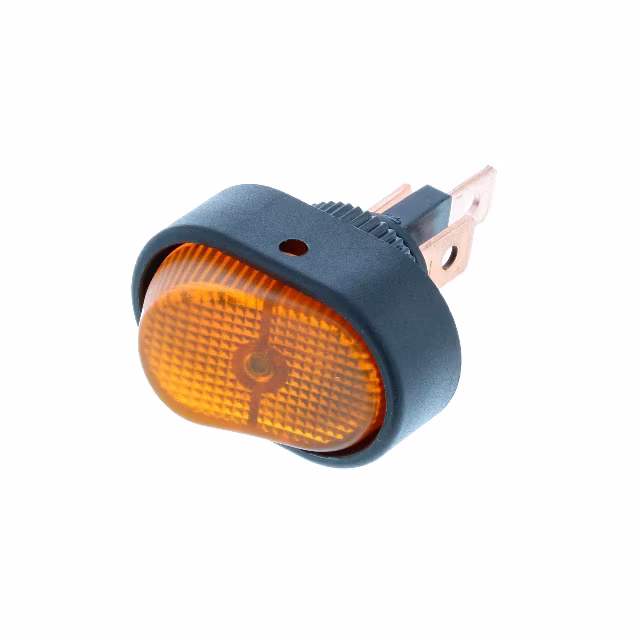

RD1-1A-DC-1-ALSWITCH ROCKER SPST 30A 12V |
874 |
|
Datasheet |
RD1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Amber | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RD1-1A-DC-1-RLSWITCH ROCKER SPST 30A 12V |
195 |
|
Datasheet |
RD1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|

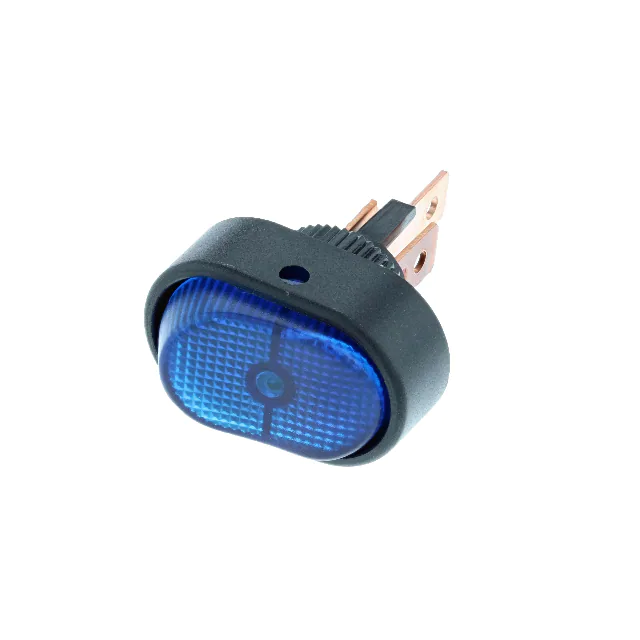

RD1-1A-DC-1-ULSWITCH ROCKER SPST 30A 12V |
110 |
|
Datasheet |
RD1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Blue | No Marking | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RA4-1B-DC-2-BSWITCH ROCKER SPST-NO 10A 125V |
423 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
C6053ALGNRSWITCH ROCK ON-OFF ILLUM |
1,276 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1634200-9SWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
PRE | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.20mm x 19.40mm | -20°C ~ 85°C | cULus |
