RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE2042B10863RF FILTER BANDPASS 2.0425GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.0425GHz Center | 315MHz | Band Pass | - | 1dB | Chassis Mount | 7.088" L x 1.775" W (180.04mm x 45.09mm) | 1.000" (25.40mm) |
|
AE680B11699RF FILTER BAND PASS 680.5MHZ MOD |
100 |
|
- |
- | Module | Box | Active | 680.5MHz Center | 15MHz | Band Pass | - | 2dB | Chassis Mount | 14.953" L x 5.169" W (379.80mm x 131.30mm) | 3.780" (96.00mm) |
|
|
AB704B942RF FILTER BANDPASS 704MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 704MHz Center | 12MHz | Band Pass | - | 2dB | Chassis Mount | 14.960" L x 5.170" W (379.98mm x 131.32mm) | 3.780" (96.01mm) |
|
AE6790WN2261RF FILTER BAND STOP 6.79GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.79GHz Center | 75MHz | Band Stop | - | 2dB | Chassis Mount | 5.551" L x 0.945" W (141.00mm x 24.00mm) | 0.642" (16.30mm) |
|
|
AE35000B11277RF FILTER BAND PASS 35GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 35GHz Center | 2GHz | Band Pass | 0.25dB | 2dB | Chassis Mount | 1.063" L x 0.630" W (27.00mm x 16.00mm) | 0.307" (7.80mm) |
|
AE4965WN2292RF FILTER BAND STOP 4.965GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.965GHz Center | 120MHz | Band Stop | - | 2.5dB | Chassis Mount | 5.551" L x 1.102" W (141.00mm x 28.00mm) | 0.630" (16.00mm) |
|
AE1742B11703RF FILTER BANDPASS 1.7425GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.7425GHz Center | 5MHz | Band Pass | - | 2.5dB | Chassis Mount | 8.740" L x 4.488" W (222.00mm x 114.00mm) | 1.705" (43.30mm) |
|
|
AB740B945RF FILTER BANDPASS 740MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 740MHz Center | 12MHz | Band Pass | - | 2dB | Chassis Mount | 14.960" L x 5.170" W (379.98mm x 131.32mm) | 3.780" (96.01mm) |
|
|
AB10000B1139RF FILTER BAND PASS 10GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10GHz Center | 1GHz | Band Pass | - | 2dB | Chassis Mount | 2.787" L x 0.583" W (70.80mm x 14.80mm) | 0.787" (20.00mm) |
|
AE6525N2249RF FILTER BAND STOP 6.525GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.525GHz Center | 1.2GHz | Band Stop | - | 2dB | Chassis Mount | 8.622" L x 0.748" W (219.00mm x 19.00mm) | 0.921" (23.40mm) |
|
|
AE866NS2189RF FILTER BAND STOP 866.2MHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 866.2MHz Center | 4.6MHz | Band Stop | - | 1.1dB | Chassis Mount | 13.189" L x 1.693" W (335.00mm x 43.00mm) | 2.677" (68.00mm) |
|
|
AE647B11853RF FILTER BANDPASS 647MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 647MHz Center | 10MHz | Band Pass | - | 5dB | Chassis Mount | - | - |
|
|
AS2140N325RF FILTER BAND STOP 2.14GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.14GHz Center | 60MHz | Band Stop | - | 1.5dB | Chassis Mount | 9.843" L x 2.362" W (250.00mm x 60.00mm) | 1.890" (48.00mm) |
|
AE690B11698RF FILTER BAND PASS 690.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 690.5MHz Center | 15MHz | Band Pass | - | 2dB | Chassis Mount | 14.953" L x 5.169" W (379.80mm x 131.30mm) | 3.780" (96.00mm) |
|

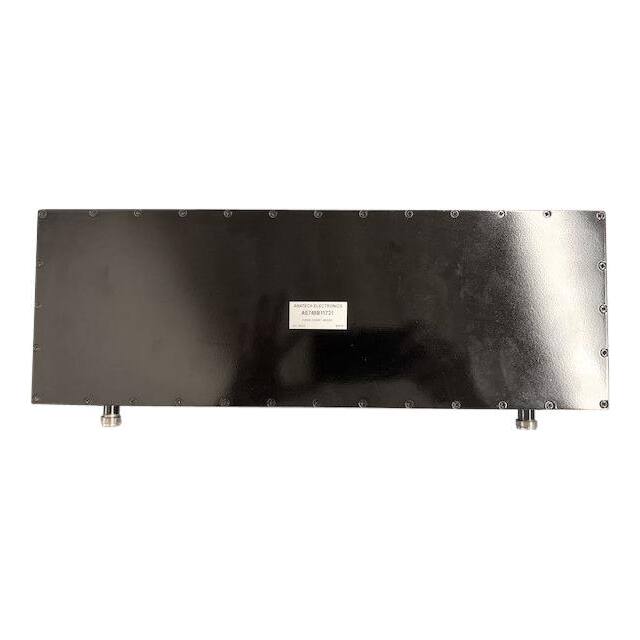

AE748B11731RF FILTER BAND PASS 748.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 748.5MHz Center | 5MHz | Band Pass | - | 2.8dB | Chassis Mount | 14.960" L x 5.170" W (379.98mm x 131.32mm) | 3.780" (96.01mm) |
|
AE634B11729RF FILTER BAND PASS 634.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 634.5MHz Center | 15MHz | Band Pass | - | 2dB | Chassis Mount | 14.953" L x 5.169" W (379.80mm x 131.30mm) | 3.780" (96.00mm) |
|
|
AE2140NS2178RF FILTER BAND STOP 2.14GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.14GHz Center | 60MHz | Band Stop | - | 2dB | Chassis Mount | 6.929" L x 2.677" W (176.00mm x 68.00mm) | 1.929" (49.00mm) |
|
AE644B11730RF FILTER BAND PASS 644.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 644.5MHz Center | 15MHz | Band Pass | - | 2dB | Chassis Mount | 14.953" L x 5.169" W (379.80mm x 131.30mm) | 3.780" (96.00mm) |
|
|
AE2100B11421RF FILTER BANDPASS 2.1GHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 2.1GHz Center | 800MHz | Band Pass | - | 1dB | Chassis Mount | - | - |
|
AE2145NS2200RF FILTER BAND PASS 2.145GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.145GHz Center | 70MHz | Band Pass | - | 1.2dB | Chassis Mount | 8.230" L x 2.290" W (209.04mm x 58.17mm) | 0.870" (22.10mm) |
