RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B8648RF FILTER BANDPASS 52.5MHZ 10DIP |
100 |
|
Datasheet |
- | 10-DIP Module | Box | Active | 52.5MHz Center | 35MHz | Band Pass | 0.1dB | 1dB | Through Hole | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
AE120H9848RF FILTER HI PASS 120MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 120MHz (Cutoff) | 880MHz | High Pass | - | 1dB | Chassis Mount | 1.250" L x 0.500" W (31.75mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE2574H9869RF FILTER HIGH PASS 2.574GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.574GHz (Cutoff) | 126MHz | High Pass | - | 2dB | Chassis Mount | 8.051" L x 1.555" W (204.50mm x 39.50mm) | 0.748" (19.00mm) |
|
|
AB1937B1222RF FILTER BAND PASS 1.94GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.94GHz Center | 435MHz | Band Pass | - | 2dB | Chassis Mount | 4.449" L x 3.228" W (113.00mm x 82.00mm) | 1.299" (33.00mm) |
|
|
AB1940B1212RF FILTER BAND PASS 1.94GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.94GHz Center | 410MHz | Band Pass | - | 1dB | Chassis Mount | 4.449" L x 3.228" W (113.00mm x 82.00mm) | 1.299" (33.00mm) |
|
|
AB1625B881RF FILTER BAND PASS 1.625GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.625GHz Center | 24MHz | Band Pass | - | 1dB | Chassis Mount | 2.000" L x 1.500" W (50.80mm x 38.10mm) | 0.550" (13.97mm) |
|
|
AB1650B864RF FILTER BAND PASS 1.65GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.65GHz Center | 32MHz | Band Pass | - | 1.5dB | Chassis Mount | 6.457" L x 3.307" W (164.00mm x 84.00mm) | 2.244" (57.00mm) |
|
|
AB2120B919RF FILTER BAND PASS 2.12GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.12GHz Center | 20MHz | Band Pass | 0.25dB | 3dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.063" (27.00mm) |
|
|
AB1780B715RF FILTER BAND PASS 1.78GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.78GHz Center | 110MHz | Band Pass | - | 2dB | Chassis Mount | 5.906" L x 4.134" W (150.00mm x 105.00mm) | 1.732" (44.00mm) |
|
|
AE50H9916RF FILTER HIGH PASS 50MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 50MHz (Cutoff) | 1.25GHz | High Pass | - | 1dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.762" (19.35mm) |
|
AE12000L9225RF FILTER LOW PASS 12GHZ SMA |
100 |
|
Datasheet |
- | SMA In line Module | Box | Active | 12GHz (Cutoff) | - | Low Pass | - | 0.4dB | Chassis Mount | 0.276" Dia x 1.673" L (7.00mm x 42.50mm) | - |
|
|
AE18000L9251RF FILTER LOW PASS 18.9GHZ SMA |
100 |
|
Datasheet |
- | SMA In line Module | Box | Active | 18.9GHz (Cutoff) | - | Low Pass | - | 0.6dB | Chassis Mount | 0.500" Dia x 1.732" L (12.70mm x 44.00mm) | - |
|
|
AS5800N322RF FILTER BANDSTOP 5.8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.8GHz Center | 60MHz | Band Stop | - | -3dB | Chassis Mount | 2.165" L x 2.165" W (55.00mm x 55.00mm) | 0.984" (25.00mm) |
|
|
AB4675B1207RF FILTER BAND PASS 4.675GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.675GHz Center | 560MHz | Band Pass | - | 1dB | Chassis Mount | 4.173" L x 2.441" W (106.00mm x 62.00mm) | 0.984" (25.00mm) |
|
|
PE87094 Section Bandpass Filter With S |
40 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 1.95GHz Center | 60MHz | Band Pass | - | 1.5dB | Chassis Mount | 2.000" L x 1.319" W (50.80mm x 33.50mm) | 0.531" (13.50mm) |
|

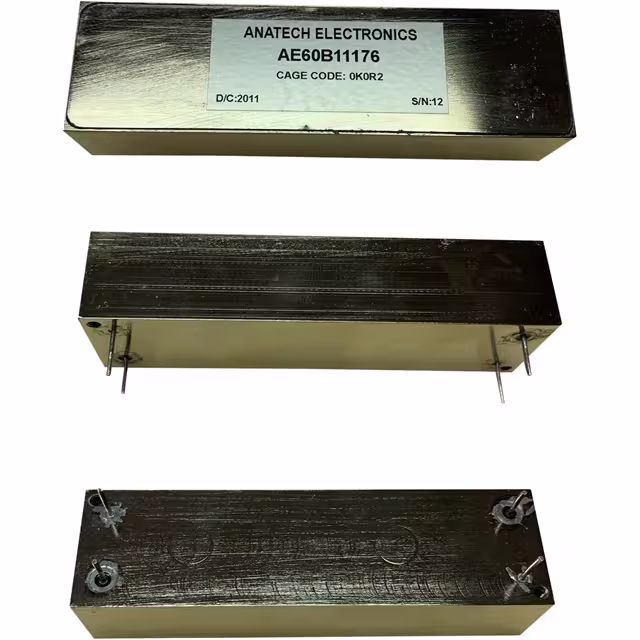

AE60B11176RF FILTER BAND PASS 60MHZ 4DIP |
100 |
|
Datasheet |
- | 4-DIP Module | Box | Active | 60MHz Center | 4MHz | Band Pass | 0.5dB | 5.5dB | Through Hole | 3.580" L x 1.000" W (90.93mm x 25.40mm) | 0.750" (19.05mm) |
|
|
AB1415B1304RF FILTER BAND PASS 1.415GHZ MOD |
97 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.415GHz Center | 40MHz | Band Pass | - | 1dB | Chassis Mount | 4.724" L x 2.240" W (120.00mm x 56.90mm) | 1.693" (43.00mm) |
|
|
PE8714RF FILTER BANDPASS 5.4GHZ MODULE |
39 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 5.4GHz Center | 1GHz | Band Pass | - | 0.75dB | Chassis Mount | 1.280" L x 0.701" W (32.50mm x 17.80mm) | 0.541" (13.75mm) |
|
AE456B11159RF FILTER BAND PASS 456.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 456.5MHz Center | 11MHz | Band Pass | - | 1dB | Chassis Mount | 3.589" L x 3.589" W (91.15mm x 91.15mm) | 2.913" (74.00mm) |
|
|
AE900B11309RF FILTER BANDPASS 900MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 900MHz Center | 80MHz | Band Pass | - | 1.2dB | Chassis Mount | 6.102" L x 2.559" W (155.00mm x 65.00mm) | 2.205" (56.00mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
